Duo Lift® Duo Cone Bottom Transport Trailer

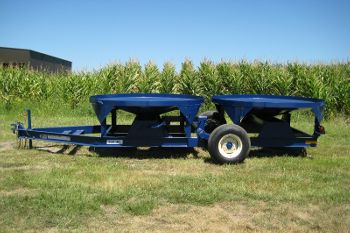

DC6050 Transport Trailer



The DC6050 can accomodate (2) 2,500 or (2) 3,000 Gallon Cone Bottom Tanks (Not Included).

It is important to note that these trailers must be transported empty. Trailer weight w/o tanks: 2,560Lbs.





































Trailer Includes:

-2" diameter 1144 cold rolled spindles

-611 hubs w/6-bolt circle, 3,600-Lbs. capacity each

-15" x 10" 6-6" wheels, 3,800-Lbs. each

-11L x 15 8-Ply tubeless tire

-6" structural channel

-Heavy duty jack crank style lift system

-Dual transport height sliding lock with dual lock pins and retaining chain

-Ag transport lights/conspicuity tape

-(2) Tank hold downs per cone

-(2) Hose storage holder hooks per cone

-Top wind tongue jack

-Adjustable clevis hitch

-D.O.T. safety chains

-Operator's manual canister

-Platform in tongue for pump mounting

-Mechanical side wind lift system
