M2100 Wagon for 2,000 Gallon Tank


The M-2100 is our "Super Duty" reach pole wagon designed for severe service. It features 5th wheel steering with a 2" diameter king pin, 8-bolt hubs, 16.1 x 11 wheels, a fixed track (80"), two safety chains, 4 x 8 axles, rocking front bolster, 3.0" diameter type 1144 spindle shaft, and a 4" diameter structural tubing reach pole. Options include: brakes, lights, extra axle clearance, extension tongue, cushion tongue, wider tracking, rubber torsion axles, and several wheel/tire combinations.

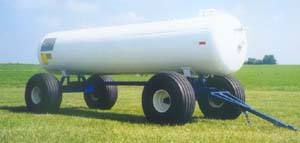

Model M-2100 shown with 21.5L x 16.1 tires, 80" track, and 2000 gallon tank.
