Duo Lift® Hi-Rise Wagons for NH3 (or Liquid Tanks)

All Hi-Rise wagons feature 5th-wheel steering for excellent towing and are equipped with a massive 2.50" diameter king-pin and heavy wall bushing. The 5th-wheel discs are built extra tough - 9/16" thick x 20" diameter. The rocking front bolster allows the front tire to raise 14" while the tank remains unstressed. Tire tracks can be adjusted fron 60" to 90" in minutes with the original easy-to-use clamp design.



N-1000 Hi-Rise Wagon for 1,000 Gallon Tank

The N-1000 wagon is designed with extra ground clearance for side-dressing applications. It features 5th wheel steering with a 2.50" diameter king pin, 6-bolt hubs, 15 x 10 wheels, 60" to 90" adjustable tracking, 2" diameter type 1144 spindle shaft, 4 x 8 axles, 4 x 4 stringers, a rear hitch, and two safety chains. Options include: lights, extension tongue, cushion tongue, wider tracking, and implement flotation tires.



N-2000 Hi-Rise Wagon for 2000 Gallon Tank

The N-2000 wagon is designed with extra ground clearance and 120" tire tracking. It features a completely "turn-under" front axle design that allows tight turns while reducing stress on the main frame. The front axle also features a rocker pin to allow up and down movement of the tires in any position. Other features include: 8,000-pound hubs and spindles, 2" semi king-pin for the steering 5th-wheel, 4" x 8" axles, 4" x 6" stringers, and (2) 1/2" safety chains. Options include: brakes, lights, extension tongue, cushion tongue, and several tire/wheel combinations.

N-2200 Hi-Rise Wagon

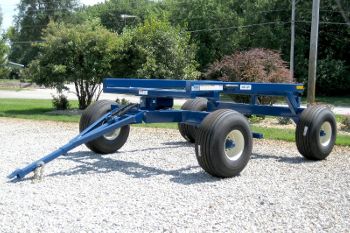

N-2900 Hi-Rise Wagon

N-3300 Hi-Rise Wagon

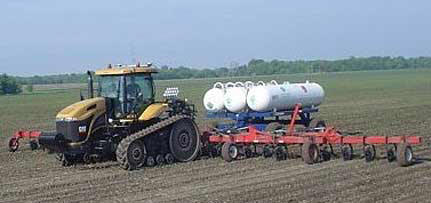

Duo Lift designed the N-3303 which carries 3-1000 gallon tanks for a customer who wanted a high clearance, high capacity wagon to pull behind his toolbar. This is an example of how Duo Lift is willing to adapt to whatever the customer wants as well as look at the future and trends of equipment getting bigger. Call us for your special and specific needs.
