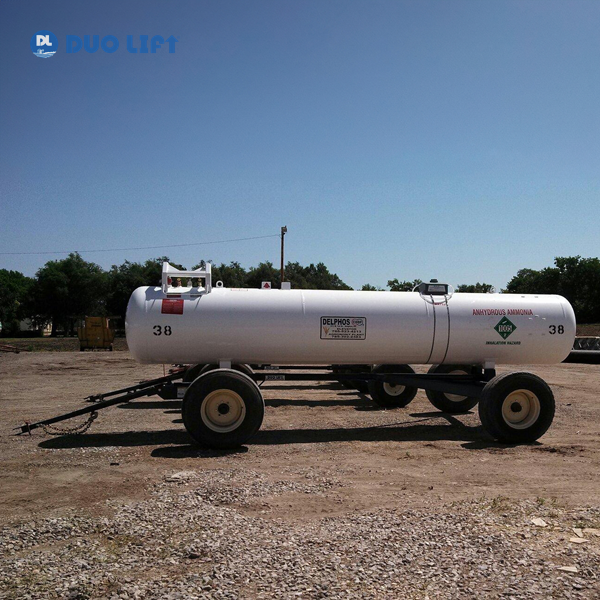

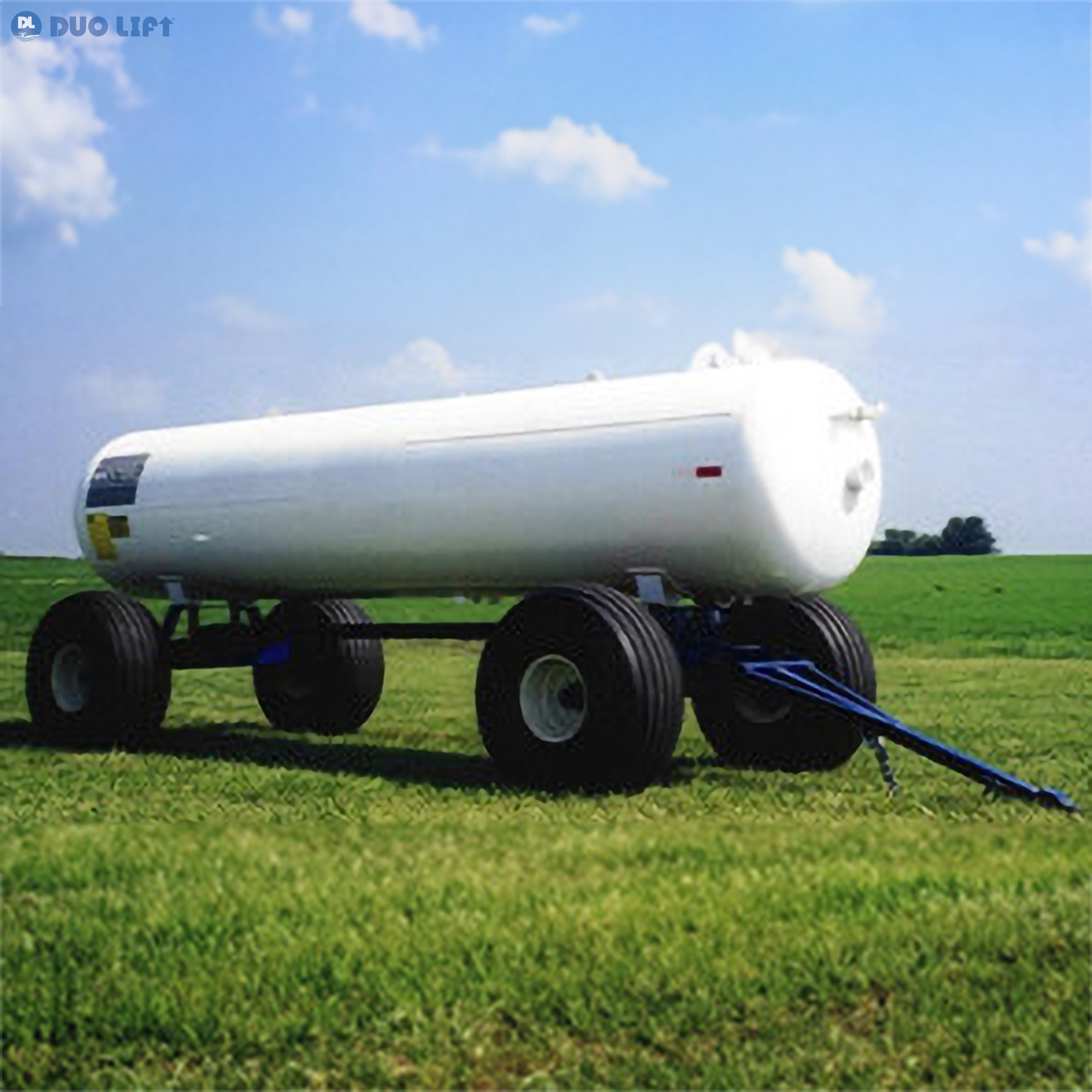

Duo Lift M2100 Reach Pole Wagon
- Item #: 90270
Product Description
M2100, Super Duty Reach Pole Wagon, Non-Adjustable Track Width @ 80", For (1) 2,000 Gallon "Long" Anhydrous Ammonia Tank
Heavy Duty Rocking Front Bolster with Greased 2" Dia. Rocker Pin
5th Wheel steering w/ 9/16" x 20" Diameter Circular Discs w/ 2" Dia. King Pin
4" x 3" Tongue with (2) 1/2" x 40" DOT Safety Chains w/ Hook & Latch, Reach Pole Tube CUSTOM 4" Dia. x 1/4", Wall Structural Tubing, Conspicuity Tape
Duo Lift provides Duo Lift ag parts such as the 90270 Duo Lift M2100 Reach Pole Wagon.
Product Specs
- Axle ClearanceApprox. 22" w/ 16.5L x 16.1 Tires
- Axles8" x 4" Heavy Wall Tubing
- Capacity20000 Lbs. GVWR
- Hubs819; 8-Bolt on 8" Bolt Circle; 5790 Lbs. Cap. Ea.
- LightsStop / Turn / Tail Function Red LED Lights with 7-way RV connector
- Spindles2.50" Dia.1144 Cold-Rolled Shaft
- Tank2000 Gallon NH3 Tank
- Track Width80" Non-Adjustable
- Wheel Base168"
- Wheels16.1" x 11" x 8 - 8"; 6000 Lbs. Cap. Ea.; Silver
