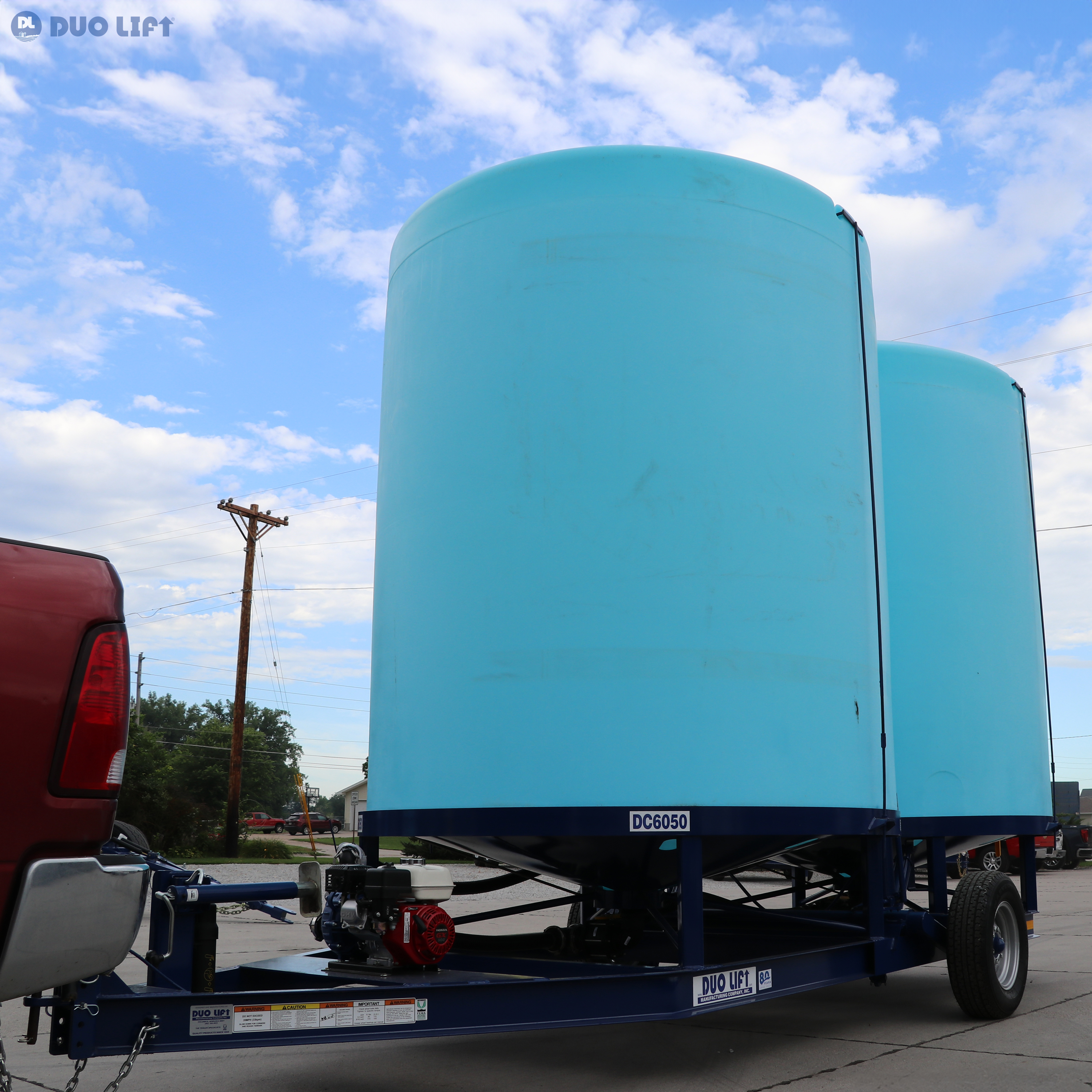

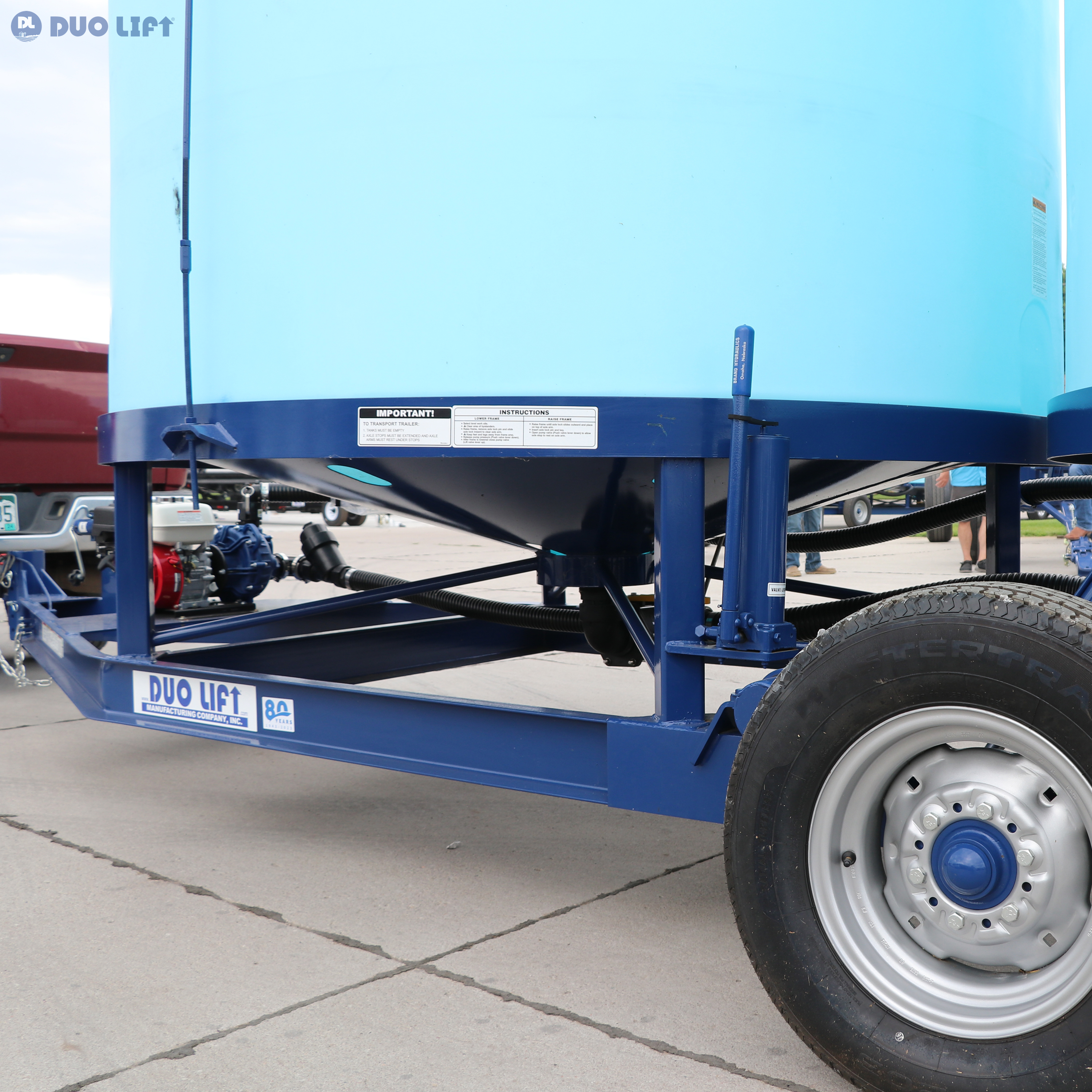

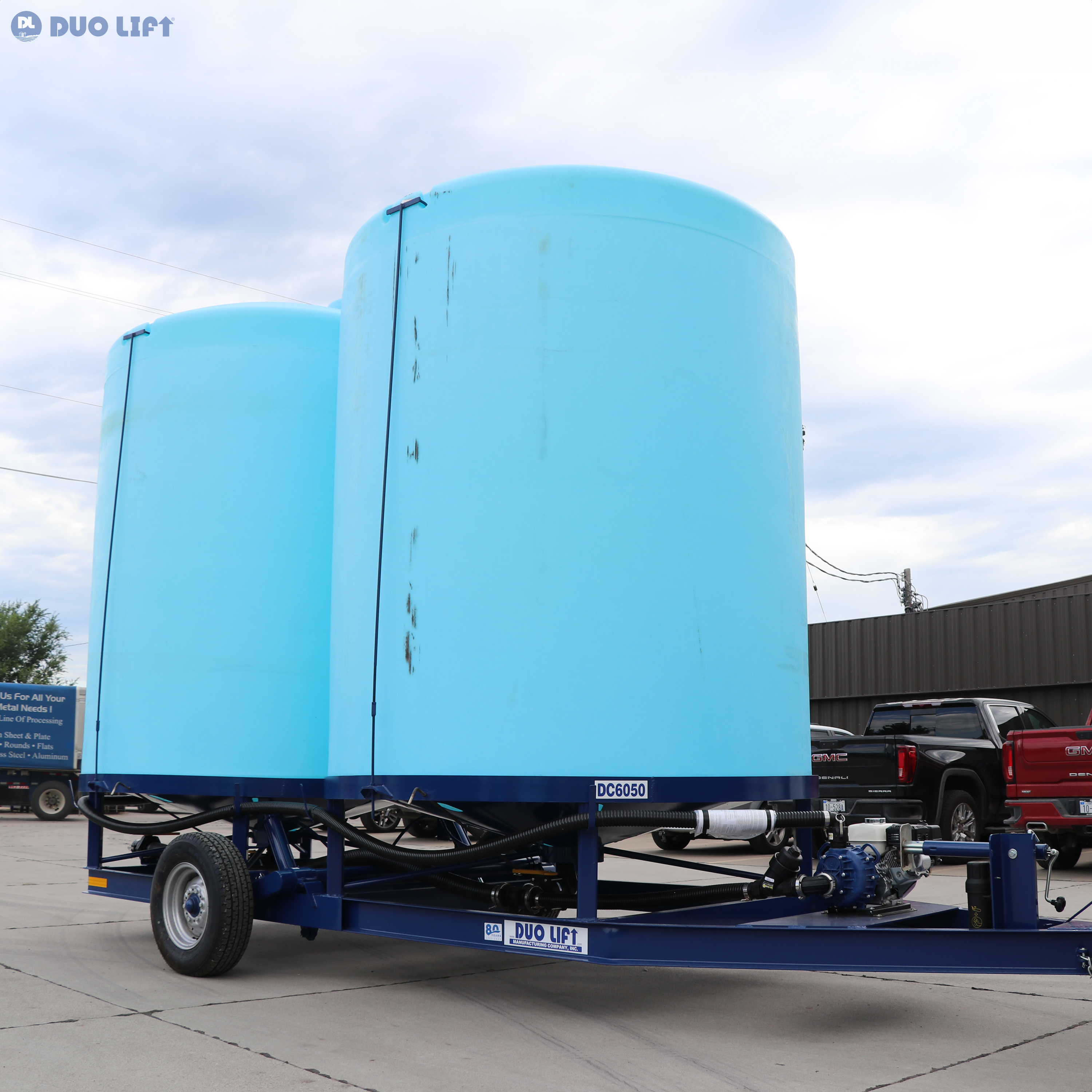

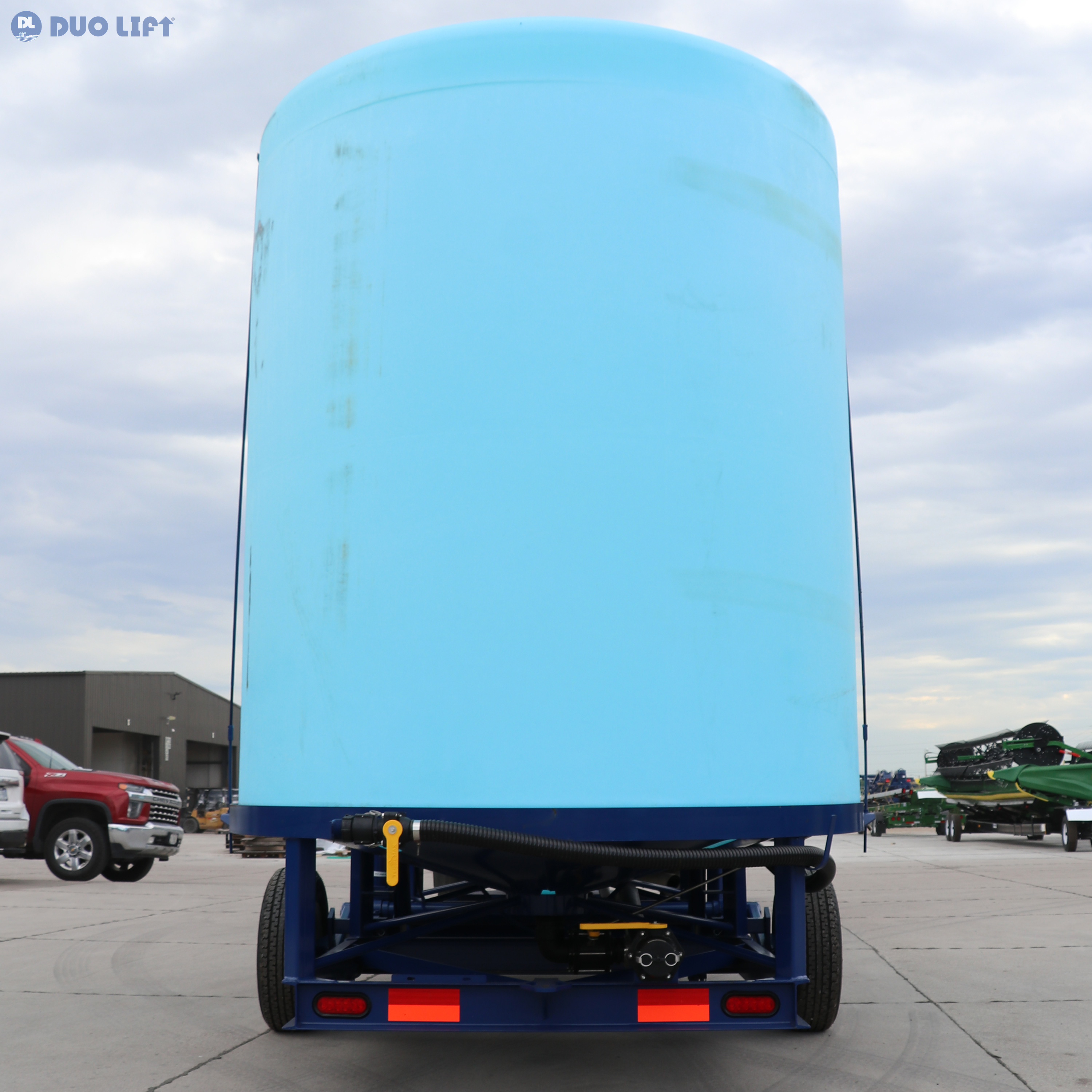

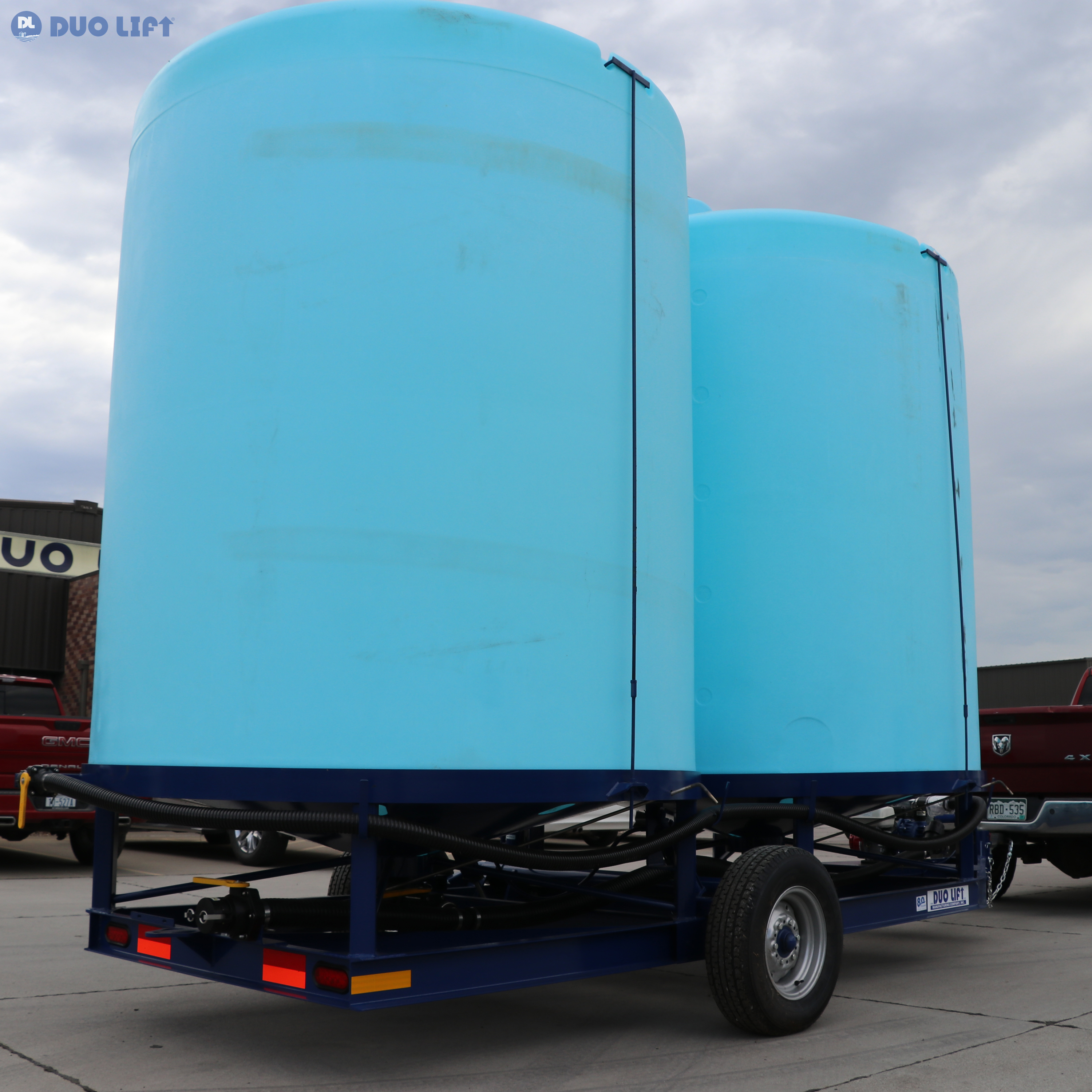

Duo Lift DC6050 Tandem Axle Trailer

  • Item #: 91732

Product Description

DC6050, Duo Cone Bottom Poly Tank Transport Trailer for (2) 2,500 or 3,000 Gallon Poly Tanks with 30 Degree Slope / 90" Diameter, Includes AG Light Package And (2) 225/75R15 "D" Ply Tires

(2) D.O.T. Safety Chains

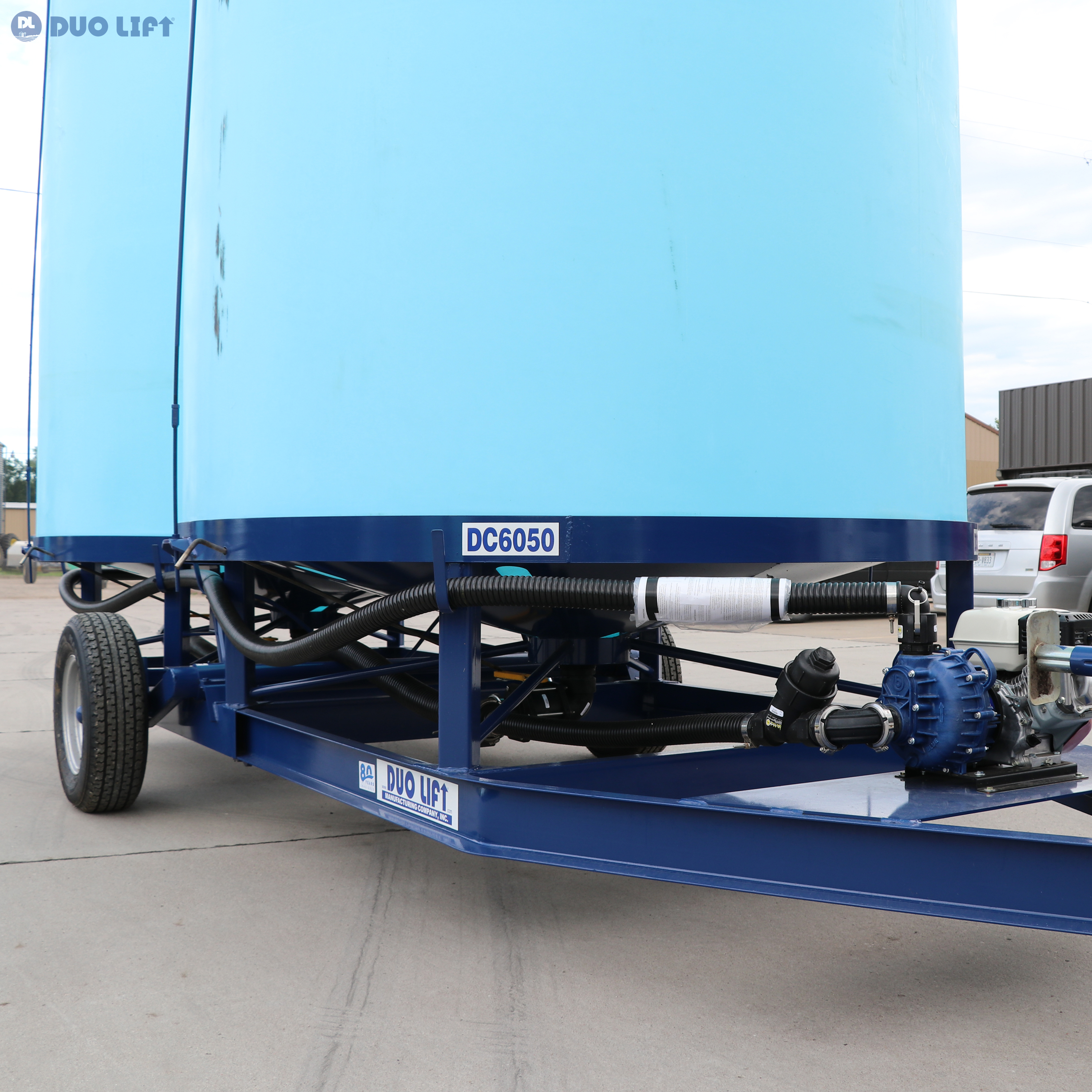

Platform in Tongue for Pump
(2) Hose Storage Hooks Per Cone
(2) Snyder Tank Tie Downs
Conspicuity Tape
Manual Hydraulic Pump with (2) Lift Cylinders


Duo Lift provides Duo Lift ag parts such as the 91732 Duo Lift DC6050 Tandem Axle Trailer.

Product Specs

  • Capacity4000 Lbs. Transport
  • Frame6" Structural Channel
  • HitchAdjustable Height Clevis
  • Hubs611; 6-Bolt  Circle; 3600 Lbs. Cap. Ea.
  • Jack2000 Lb. Top Wind
  • LightsStop / Turn / Tail Function Red LED Lights with 7-way RV connector
  • Spindles2" Dia. 1144 Cold Rolled Shaft
  • Tank(2) 2;500 or (2) 3000-gallon cone bottom; 30° slope. Tanks for portable field storage (tanks not included)
  • Tires225/75R15D Radial Tire; 2;540 Lbs  Cap. Ea.
  • Wheels15" x 6" x 6 - 6"; Silver
