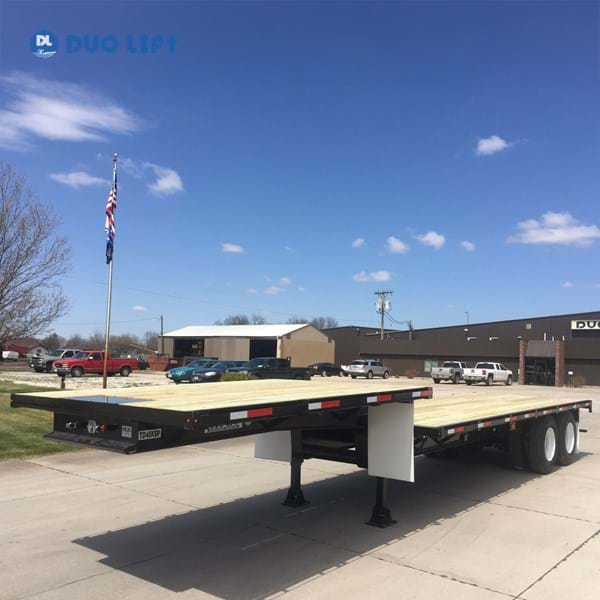

Duo Lift TD48KDDTDA Tandem Axle Trailer

  • Item #: 90108

Product Description

TD48K-DD-TDA, 24-Ton Tandem Axle Semi Drop-Deck Trailer, Includes 2" King Pin for Semi 5th Wheel, Two Speed Landing Gear Set

D.O.T. Conspicuity Tape
Rear Bumper


Duo Lift provides Duo Lift ag parts such as the 90108 Duo Lift TD48KDDTDA Tandem Axle Trailer.

Product Specs

  • Axles(2)  22500 Lb. Heavy Duty Axle  Beams (5.0” Dia. x .50” Tube)
  • BrakesFull Air on Both Axles with 16.5 x 7 Outboard Drums; Spring Park Brake; Automatic Slack Adjusters; and ABS
  • Capacity48000 Lbs. GVWR
  • Deck10' x 102" Upper Wood Deck
  • Frame14" Wide-Flange Steel Beams
  • Hubs10-Bolt on 11.25" Bolt Circle with Oil Bath  Bearing Lubrication; Hub Pilot
  • Jack10000 Lb. Top-Wind Drop-Leg
  • LightsDOT compliant LED light package; with 7-Way ATA Connector
  • SuspensionHutch 9700US-354 High-Arch Springs
  • Tank3200 Gallon Liquid Tank;  24-Ton Dry Fertilizer Tenders;  Feed Bodies; Flat Beds;  Grain Boxes; and Other
  • Tires255/70R-22.5 H-Ply Low Profile Radials
  • Wheels(8) 22.5 x 8.25 x 10 - 11.25 Disc Type Duals; White
