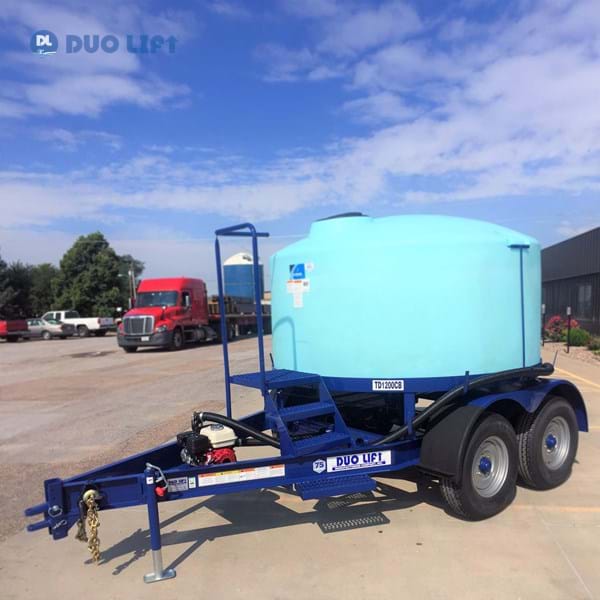

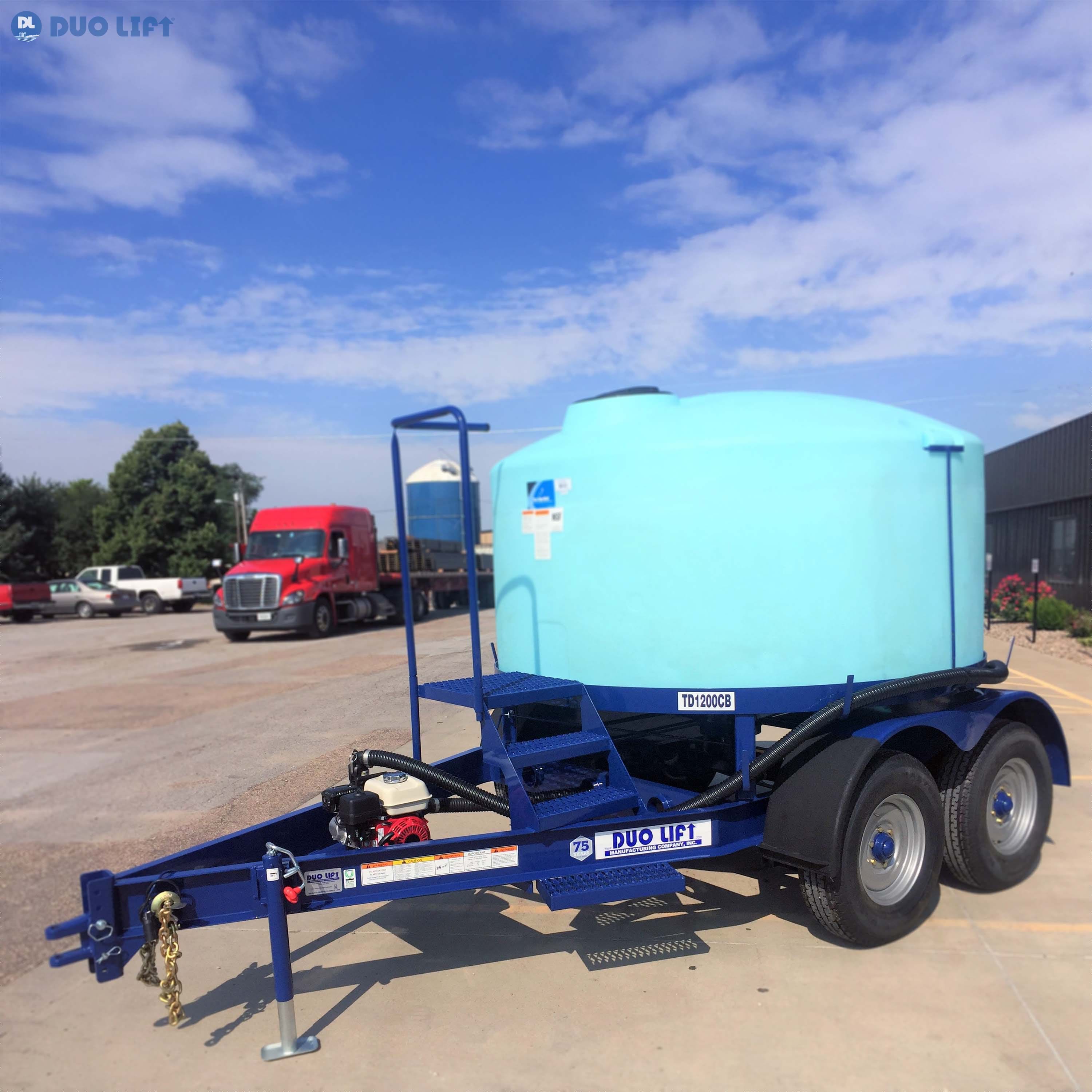

Duo Lift TD1200CB Tandem Axle Trailer

  • Item #: 90940

Product Description

TD1200-CB, Tandem Axle Trailer for 1,200 Gallon Cone Bottom Tank, 15 Degree / 90" Diameter, Includes (2) ACE Tank Hold Downs, Ag Light Package (2) LED RED Stop / Turn / Tail Function, Also Includes (4) 235/80R16 E-Ply Radial Tires Mounted on 16 x 6 x 6 - 6 Silver Wheels

(2) DOT Safety Chains, (5) Hose Storage Hooks
Conspicuity Tape, Safety Signs, Owners Manual, (2) Ace Tank Hold Downs


Duo Lift provides Duo Lift ag parts such as the 90940 Duo Lift TD1200CB Tandem Axle Trailer.

Product Specs

  • Axles3" x 3" x .250" Square Tubing / 75" Track Width
  • Capacity16000 Lbs. GVWR
  • Fenders13 X 72 Tear Drop with Spray-On Protective Coating
  • Frame7" Structural Channel
  • HitchAdjustable Height Clevis
  • Hubs783 6-Bolt on 6" Bolt Circle; 4;570 Lbs. Each
  • Jack2000 Lb. Top-Wind
  • LightsStop / Turn / Tail Function Red LED Lights with 7-way RV Connector
  • Spindles2" Diameter 1144 Cold Rolled Shaft
  • StepFill Step with safety railing
  • Suspension6-Leaf x 2" Underslung Slipper Springs
  • TankAccommodates 1200 gal. Cone Bottom Tank (Tank Not Included)
  • Tires235/80R16 LRE
  • Wheels16" x 6" x 6 - 6" Silver
