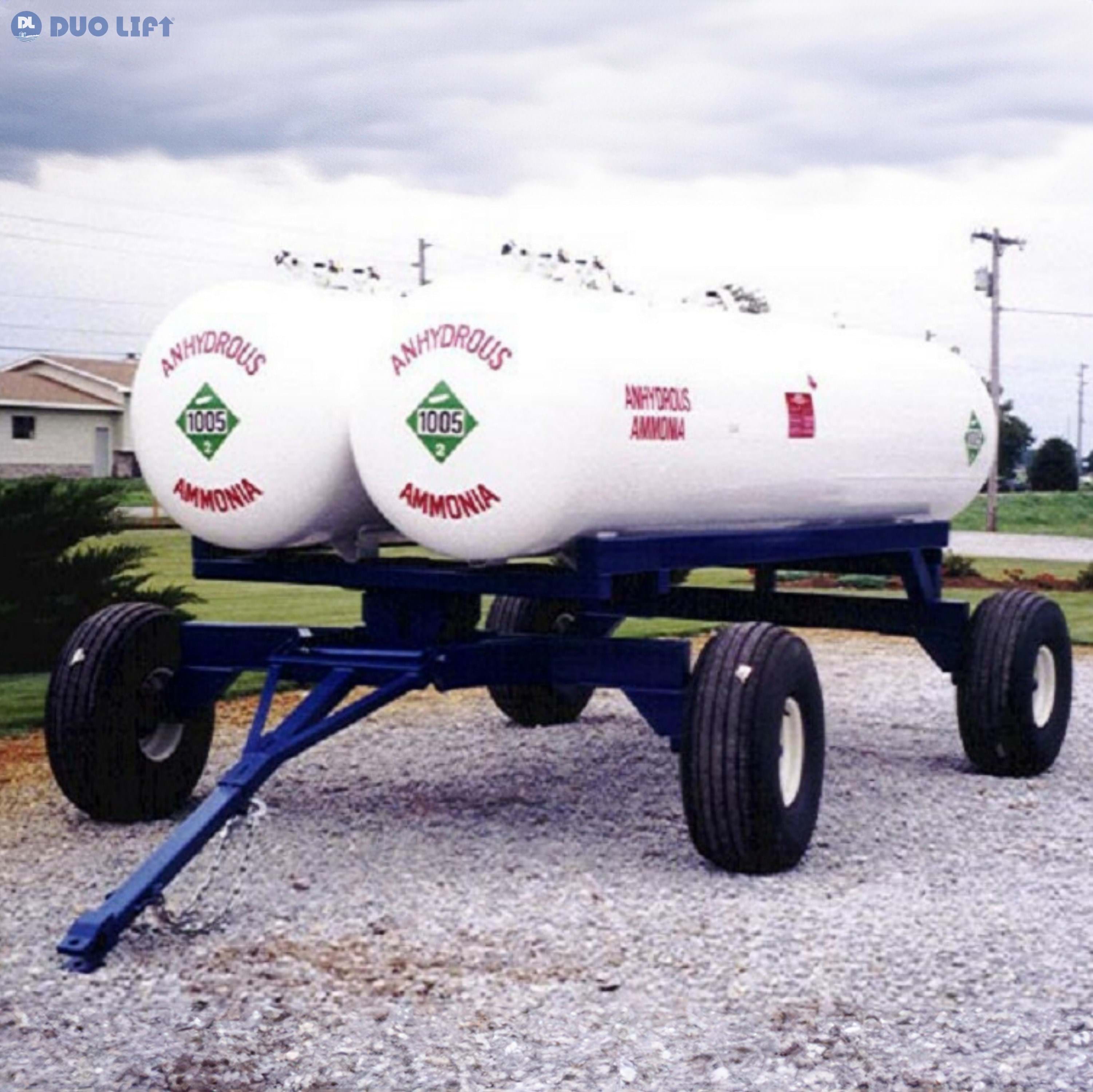

Duo Lift NP2200 Hi-Rise Wagon

  • Item #: 91001

Product Description

NP2200, Hi-Rise Wagon, 120" Non-Adjustable Track Width, With Conversion For (2) 1,000 Gallon "Prior" Anhydrous Ammonia Tanks

Heavy Duty Rocking Front Bolster with Greased 2" Dia. Rocker Pin
5th Wheel Steering w/ 9/16" x 20" Dia. Circular  Discs w/ 2" Dia. King Pin
4" x 3" Tongue with (2) 1/2" x 40" DOT  Safety Chains w/ Hook & Latch, Conspicuity Tape


Duo Lift provides Duo Lift ag parts such as the 91001 Duo Lift NP2200 Hi-Rise Wagon.

Product Specs

  • Axle ClearanceApprox. 30" w/ 16.5L x 16.1 Tires
  • Axles8" x 4" Heavy Wall Tubing
  • Capacity20000 Lbs. GVWR
  • Hubs819; 8-Bolt on 8" Bolt Circle; 5790 Lbs. Cap. Ea.  5790 Lbs. Capacity Each
  • LightsStandard
  • Spindles2.50" Dia. 1144 Cold Rolled Shaft
  • Tank(2) 1000 Gallon NH3 Tanks 108” Or 120”  Tanks
  • Track Width120" Non-Adjustable
  • Wheel Base120"
  • Wheels16.1" x 11" x 8 - 8"; 6000 Lbs. Capacity Each; Silver
