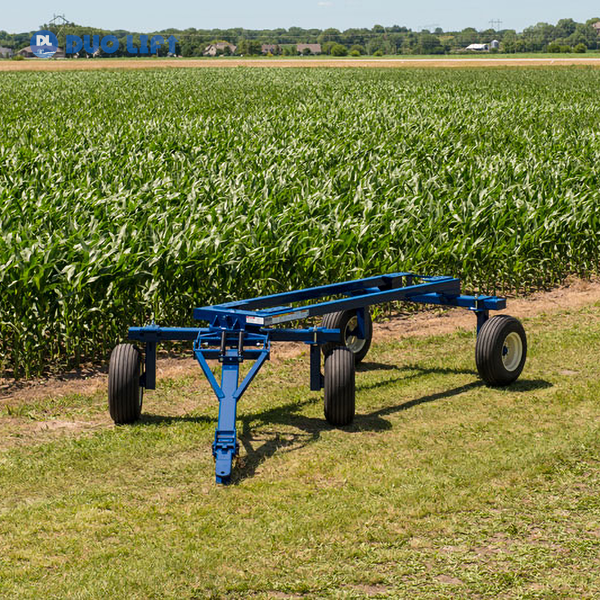

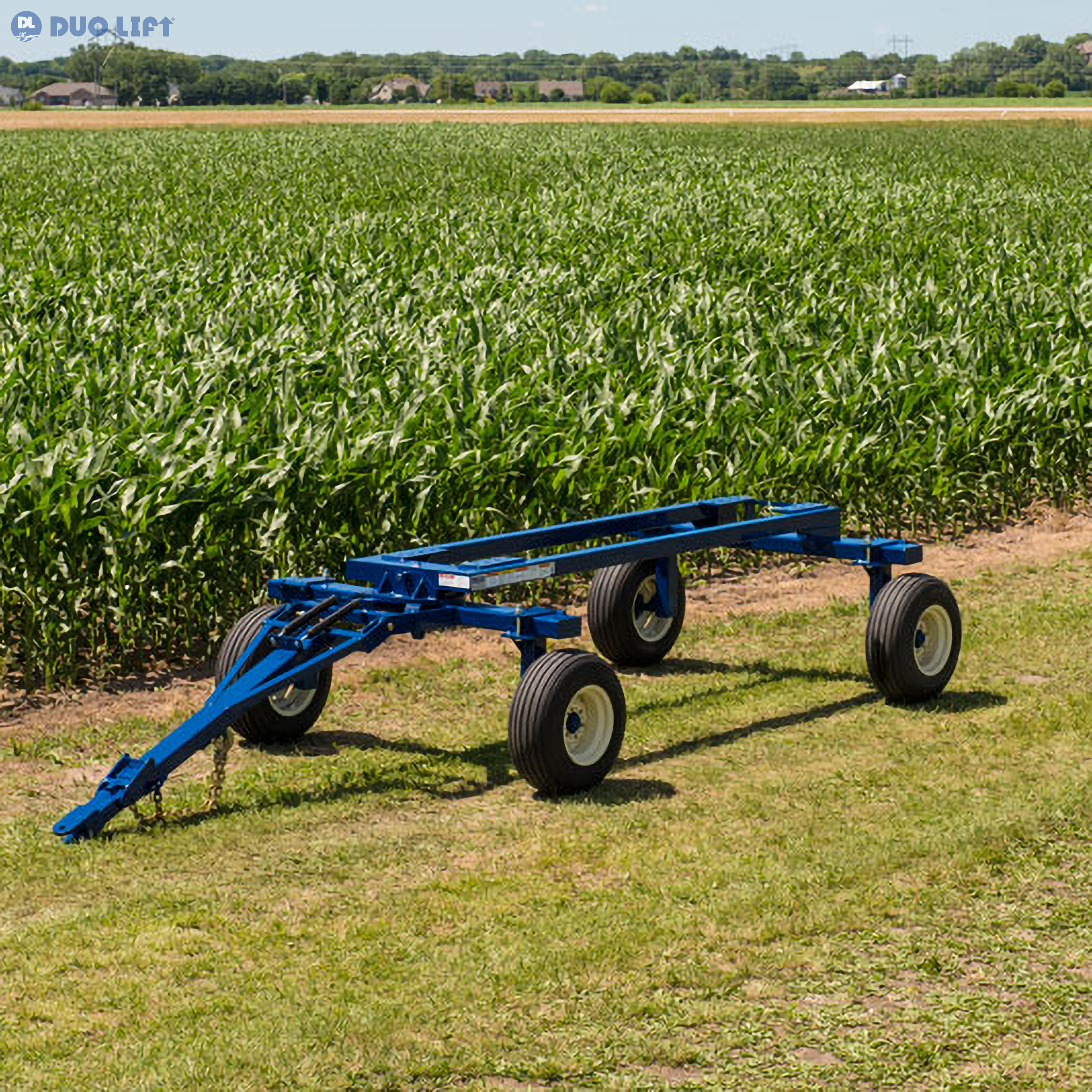

Duo Lift N1000 Hi-Rise Wagon
- Item #: 90026
Product Description
NP1000, Hi-Rise Wagon with Conversion for 1,000 Gallon
Rocking front Bolster with 1.25" Dia. Rocker Pin
5th Wheel steering w/ 9/16" x 20" Dia. Circular Discs & 2.50" Dia. King Pin
4" x 2" Tongue with (2) 3/8" x 40" DOT
Safety Chains w/ Hook & Latch
Rear Hitch with Chain Hooks
4" x 4" Stringers, Conspicuity Tape
108" & 120" Tank Leg Spacing
Duo Lift provides Duo Lift ag parts such as the 90026 Duo Lift N1000 Hi-Rise Wagon.
Product Specs
- Axle Clearance32 "
- Axles8" x 4" Heavy Wall Tubing
- Capacity14000 Lbs. GVWR
- Hubs611; 6-Bolt on 6" Bolt Circle; 3600 Lbs. Capacity Each
- LightsStop / Turn / Tail Function Red LED Lights with 7-way RV connector
- Spindles2" Dia. 1144 Cold Rolled Shaft
- Tank1000 Gallon NH3 Tank
- Track Width60" to 90" Adjustable
- Wheel Base131 "
- Wheels15 x 10 x 6 - 6; 3800 Lbs. Cap. Ea.; Silver
