Product Specs
- AxlesRear: 7” x 5” Heavy wall tubing; Front: 7” x 5” x Heavy Wall Tubing with 2.75” Dia. Rocking Pin and Seamless (DOM) Bushing; 28" axle clearance with standard tires
- Capacity32000 lbs
- ColorFRAME: Blue wagon frame; silver wheels; TANK: Light blue or white

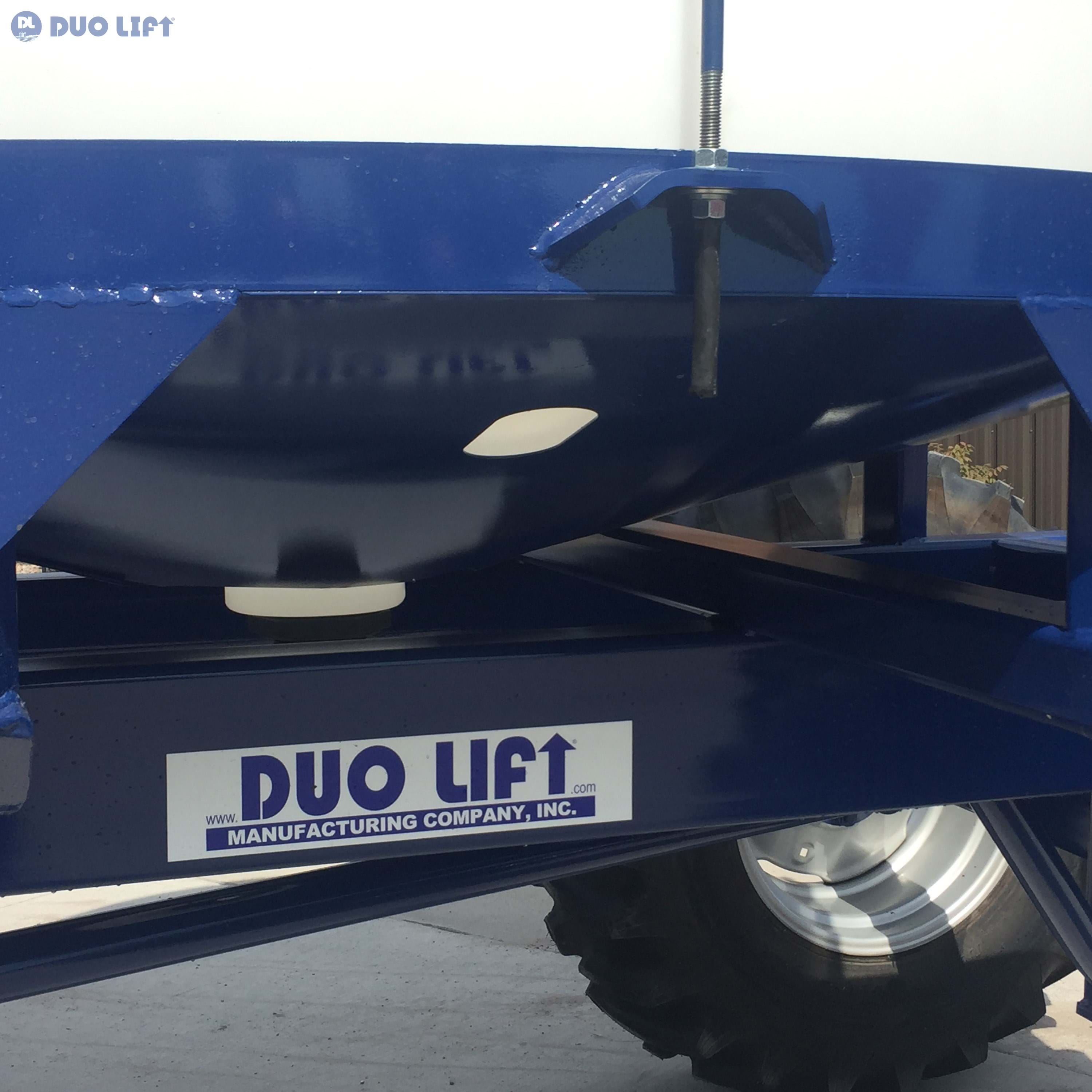

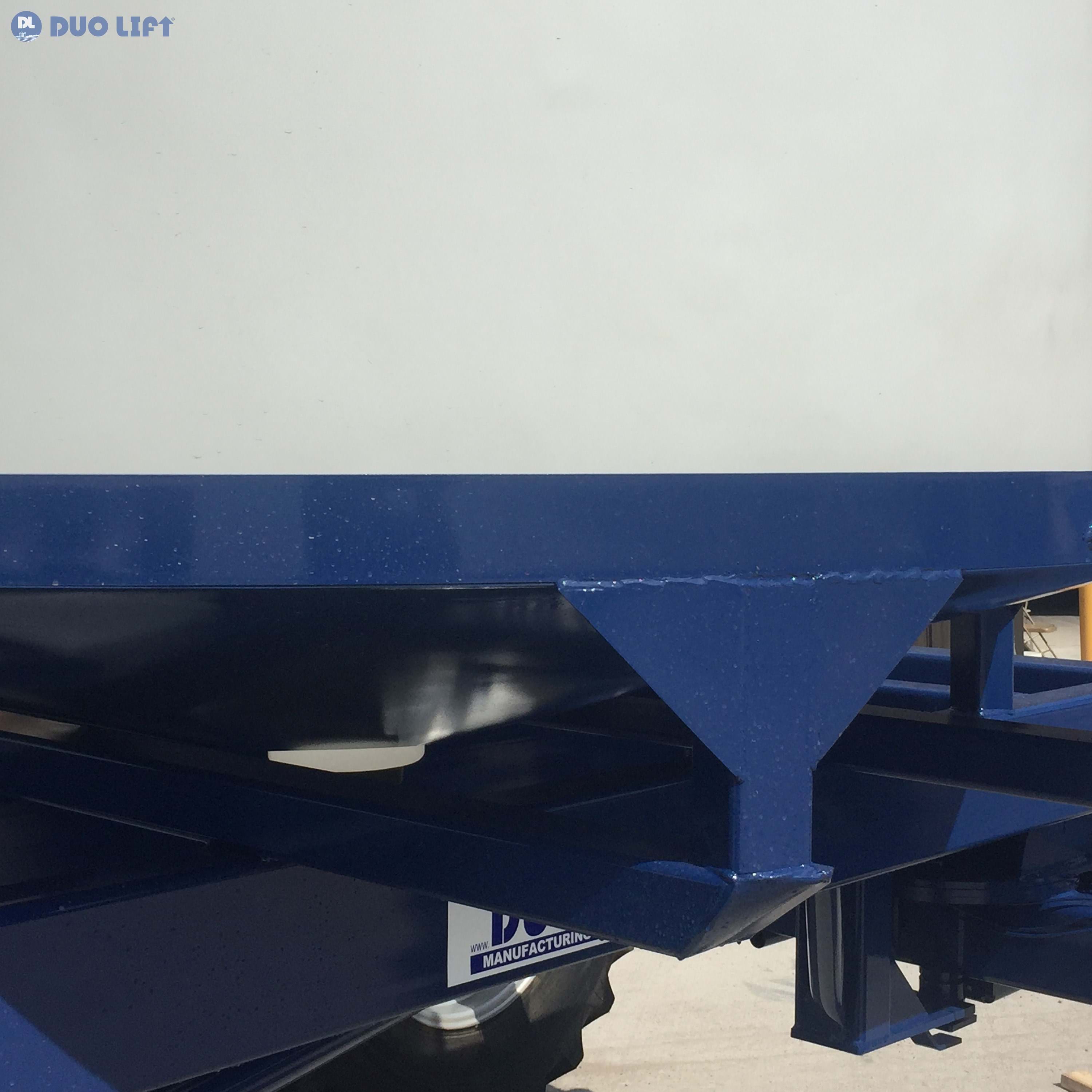

- Frame8” x 3” Heavy wall tubing
- Hubs886; 8-bolt; 8000 LB capacity; each
- LightsAg light package; with 7-way RV connector
- SpindlesRemovable 3” Diameter 1144 shaft; placed on bottom of axle tube
- SteeringFront: 5th wheel with 2” SAE; heat treated; 75-ton semi-king pin turntable; 20” dia. Plates; Rear: 5th-wheel turntable with (3) 20” dia. plates; connected to a tie rod for 4-wheel steer

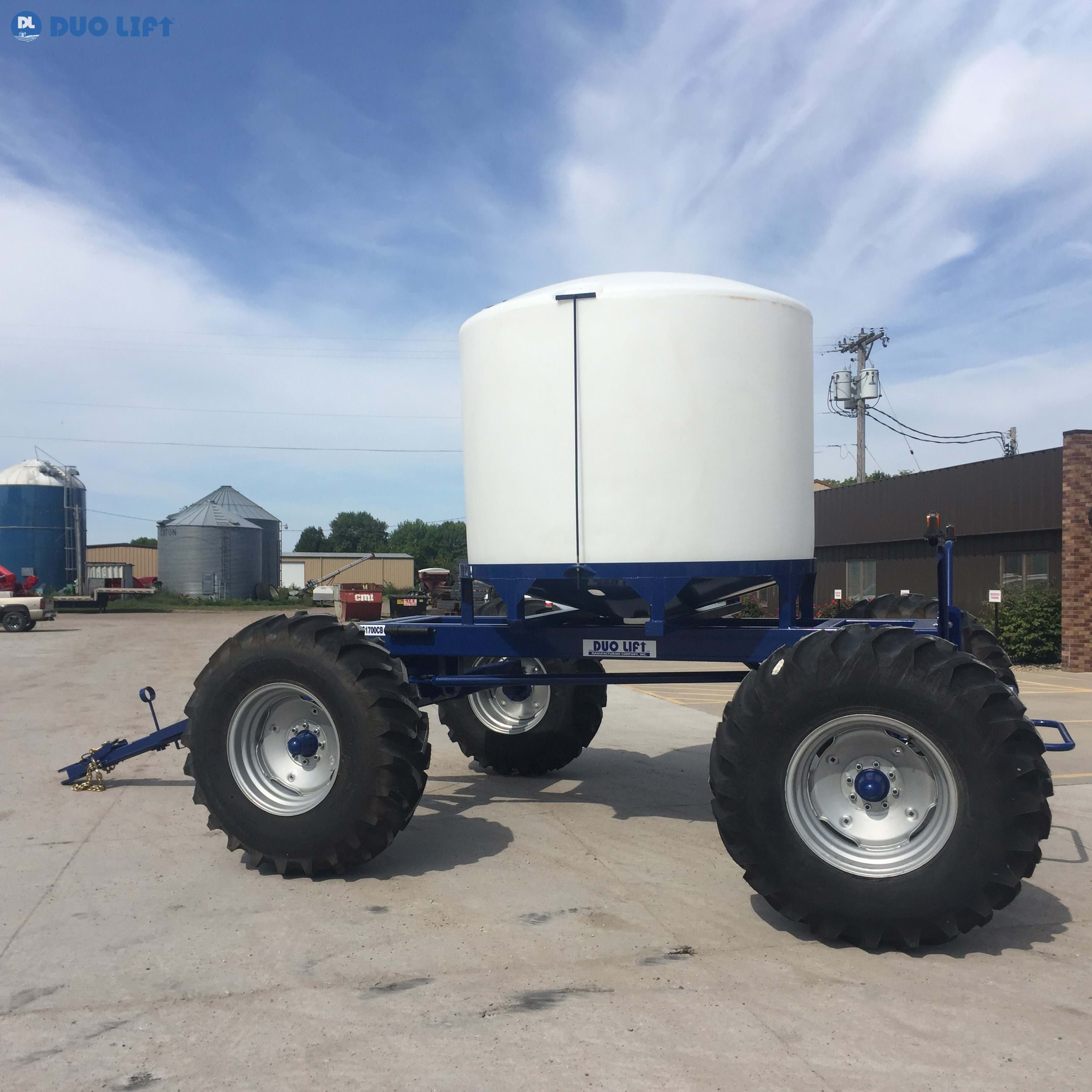

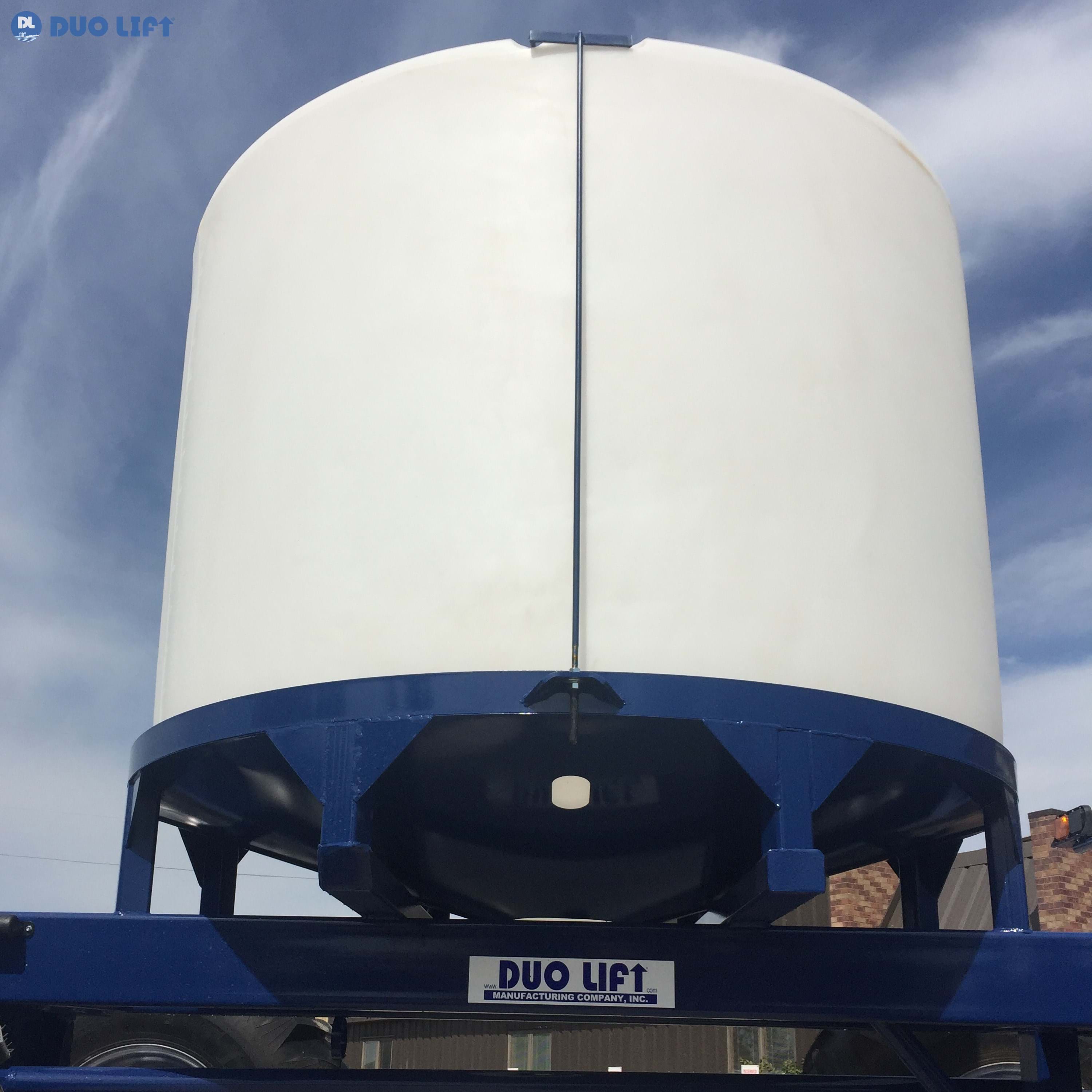

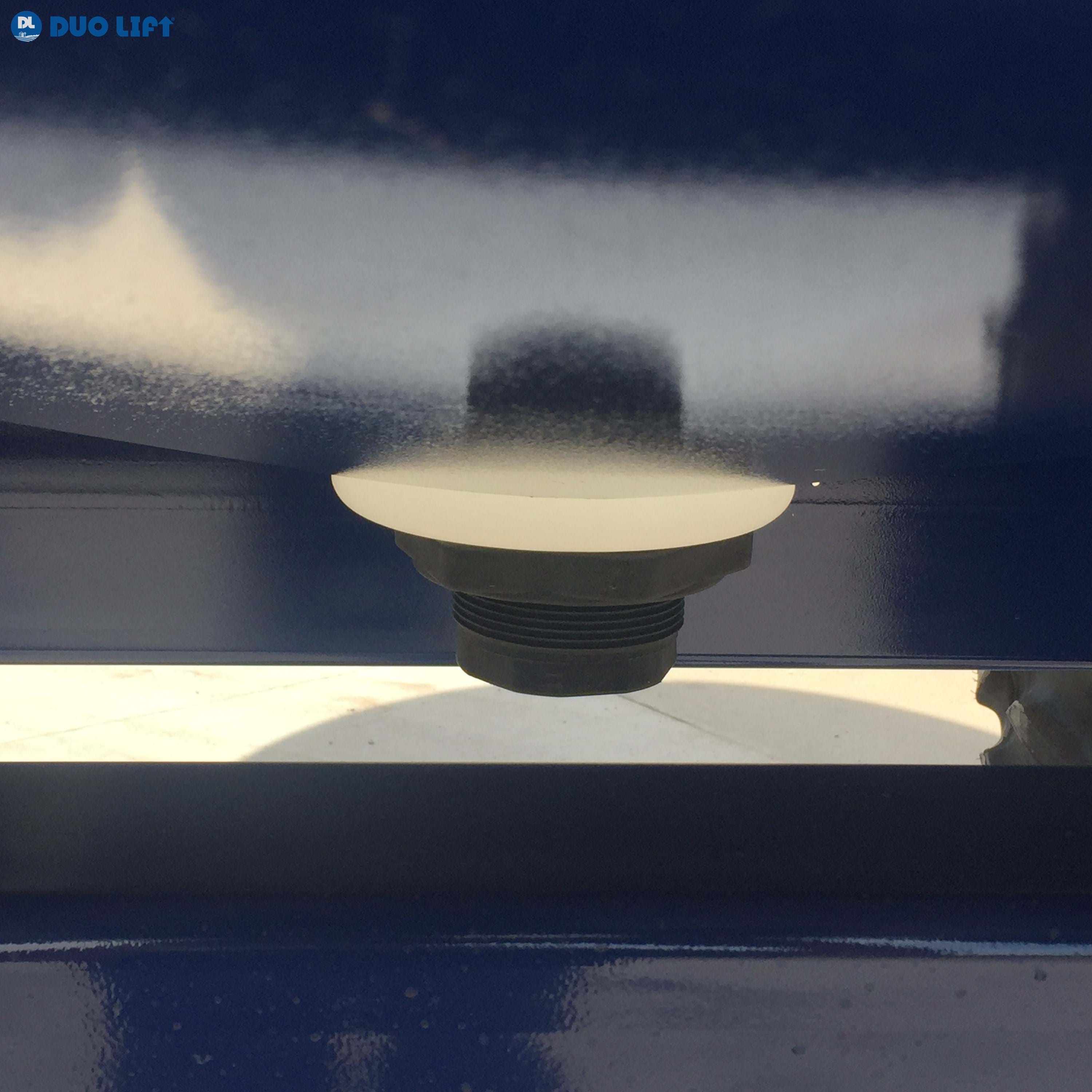

- Tank(1) Light Blue Poly; 1700 Gallon; Cone Bottom
- Tires18.4 X 26 10-PLY
- TongueHeavy duty extension tongue with double spring lift assist; (2) DOT 1/2” x 40” safety chains; accepts 1” hitch
- Wheel Base9’ 10”
- Wheel Track120” fixed track
- Wheels26 X D-16; 8-Bolt; 12000-Lb capacity; ea
