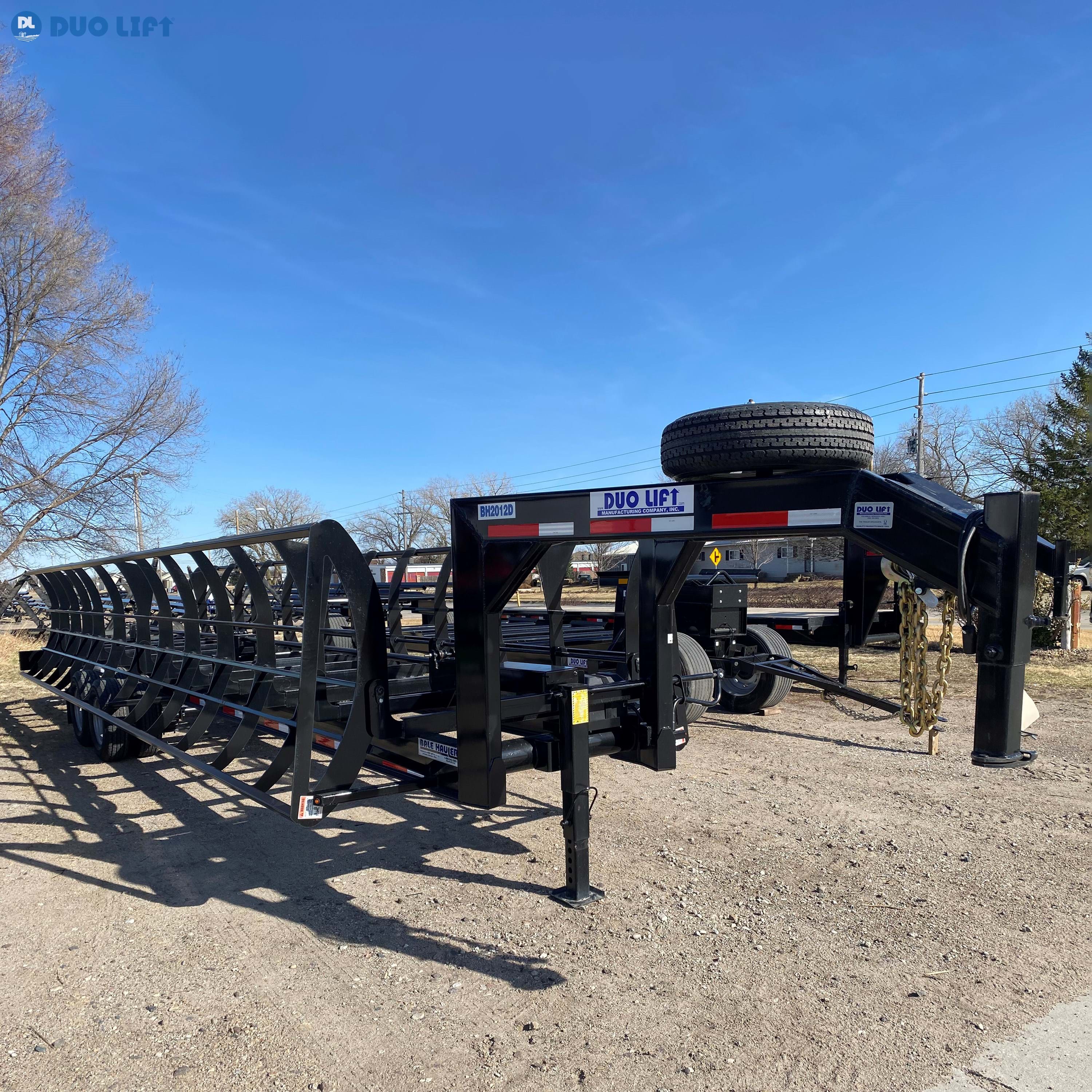

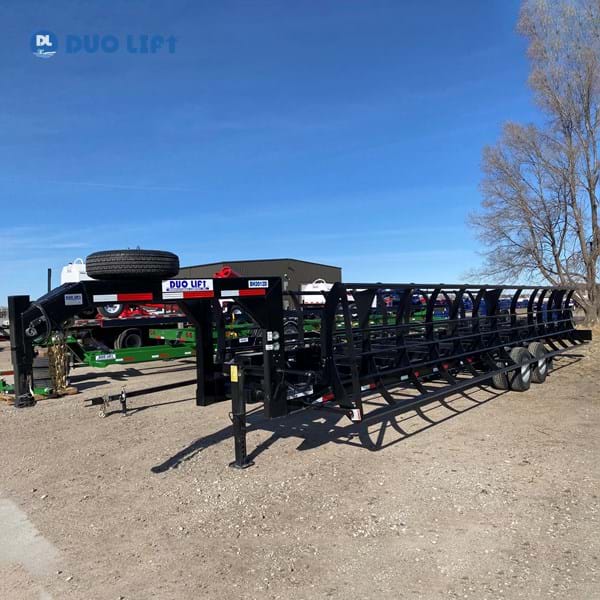

Duo Lift BH2010D Bale Hauler

Item #: 91614

Product Description

Model BH2010D, Bale Hauler Trailer, Includes 2-5/16" Ball Coupler and (2) 10,000 lb. Commercial Axles, 12V Electric Cradle Lock / Unlock with Wireless Remote
Duo Lift provides Duo Lift ag parts such as the 91614 Duo Lift BH2010D Bale Hauler.

Product Specs

Axles(2) 10000-Lb.; Model - BH2010D (8) 5/8” Wheel Studs and 5/8” Cone Nuts on 6.5” Bolt Circle; Oil Bath Hub
Brakes(4) 12-1/4” x 3-38”; Model - BH2010D; 12V Electric Brakes with Safety Breakaway Switch and Brake Battery
Capacity20000 LBS
ColorTwo Part Gloss Black; Acid Etch Steel Properation; All Weld Slag and Scale Removed Prior to Painting; Silver/Gray Wheels; White Splash Guards and Red and White Reflective Conspicuity Tape
Dimensions38'4" L x 102" W cradles up x 119" cradles down
Equipment Weight6;7000 LBS
Frame(2) 10” x 4” Wide Flange Beams with (2) 4” and (2) 6” Heavy Wall Torque Tubes
GooseneckGooseneck; Tapered Design; 8”x4” Tubular Frame
Hitch30000 Lb. Adjustable Height 2-5/16” Ball Coupler
Lights12V DOT LED Tail; Stop; Turn; Marker; License Plate Light; LED Amber Strobe Light Package; 7-Way RV connector with 8’ cord and wiring enclosed in loom or steel conduit
Suspension(4) 5-Leaf; 5000 Lb. Slipper Springs with Equalizer
Tires(8) 235/80R16 LRE Radials; 3520-Lbs. Capacity Each
Warranty5-year main frame; 1-year component
Wheels8) Hub Piloted; 16” x 6”- 8 Bolt on 6.5” Bolt Circle; Silver Color; Dual Wheels and Wheel Nut Rings
