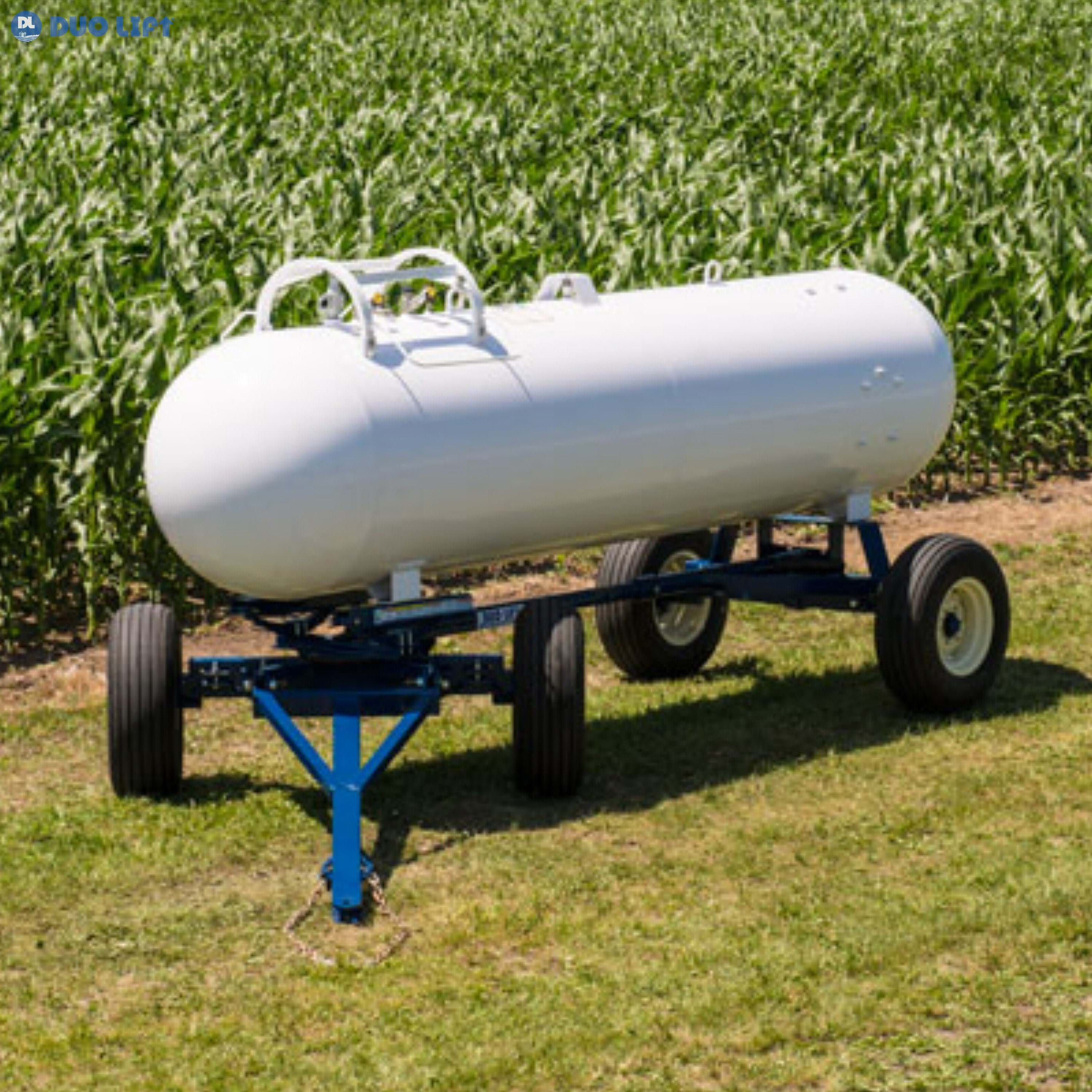

Duo Lift MP1000-60-16 Reach Pole Wagon
- Item #: 90167
Product Description
MP1000-NA-16, Reach Pole Wagon, Non-Adjustable Track Width 60", Includes Conversion for Prior Tank
Front Bolster: Duo 5-Leaf x 2" Wide Slipper Springs, 3,000 Lbs. Cap. Each
5th Wheel Steering w/ 3/8" x 15" Dia. Circular Discs w/ 2" Dia. King Pin
4" x 2" Tongue with (2) 3/8" x 40" x 76", DOT Safety Chains w/ Hook & Latch, Rear Hitch with Chain Hooks, Reach Pole Tube CUSTOM 3" Dia. X 1/4" Wall Structural Tubing, Conspicuity Tape
Duo Lift provides Duo Lift ag parts such as the 90167 Duo Lift MP1000-60-16 Reach Pole Wagon.
Product Specs
- Axle Clearance16" with 11L x 15 Tires
- Axles6" x 4" Tubing
- Capacity12000 Lbs. GVWR
- Hubs611; 6-Bolt on 6" Bolt Circle 3600 Lbs. Capacity Each
- LightsStop / Turn / Tail Function Red LED Lights with 7-way RV connector
- Spindles2.0" Dia. 1144 Cold Rolled Shaft
- Tank1000 Gallon NH3 Tank
- Track Width60" to 80" Adjustable; or fixed
- Wheel Base108" and 120"
- Wheels15" x 8" x 6 - 6"; 3800 Lbs. Capacity; Silver
