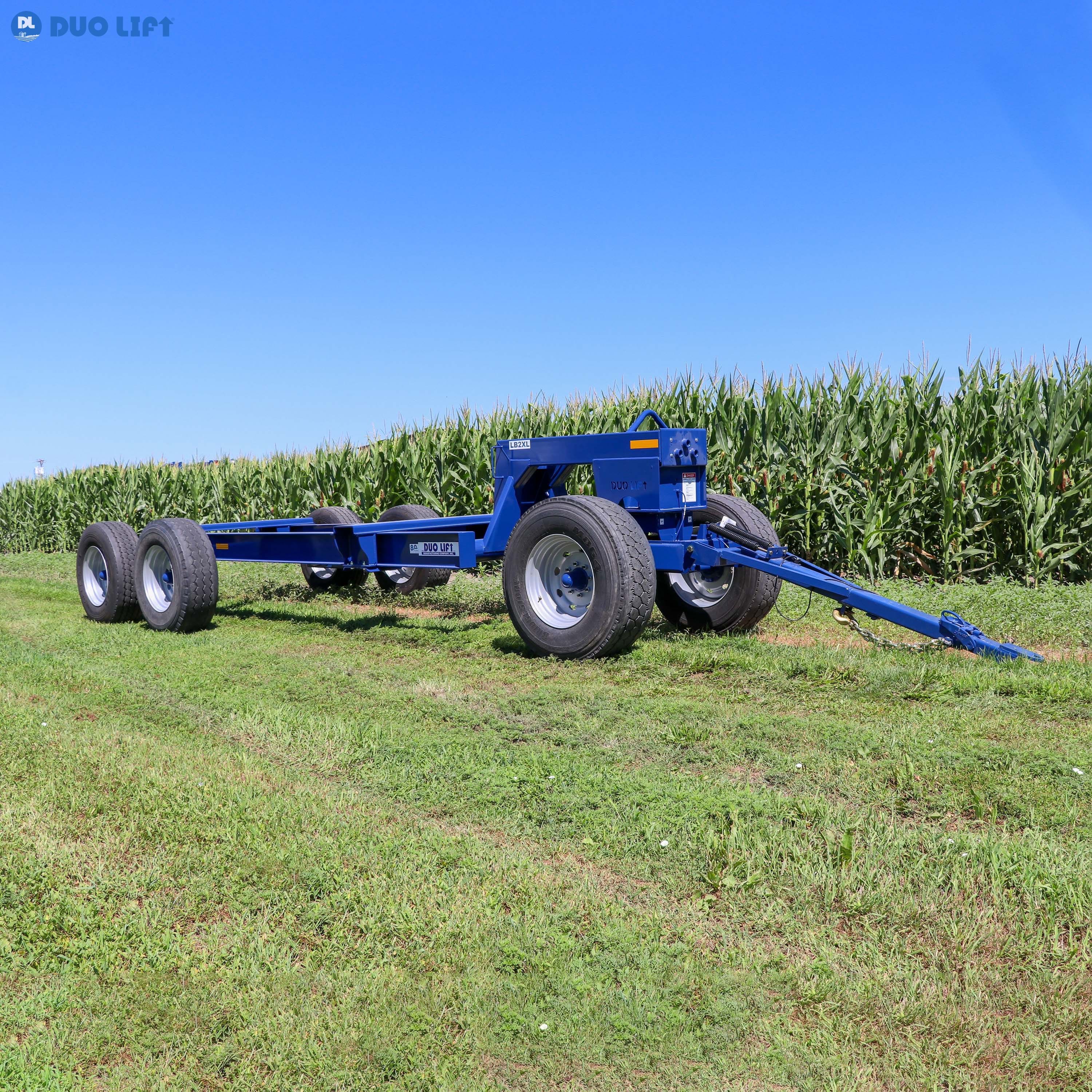

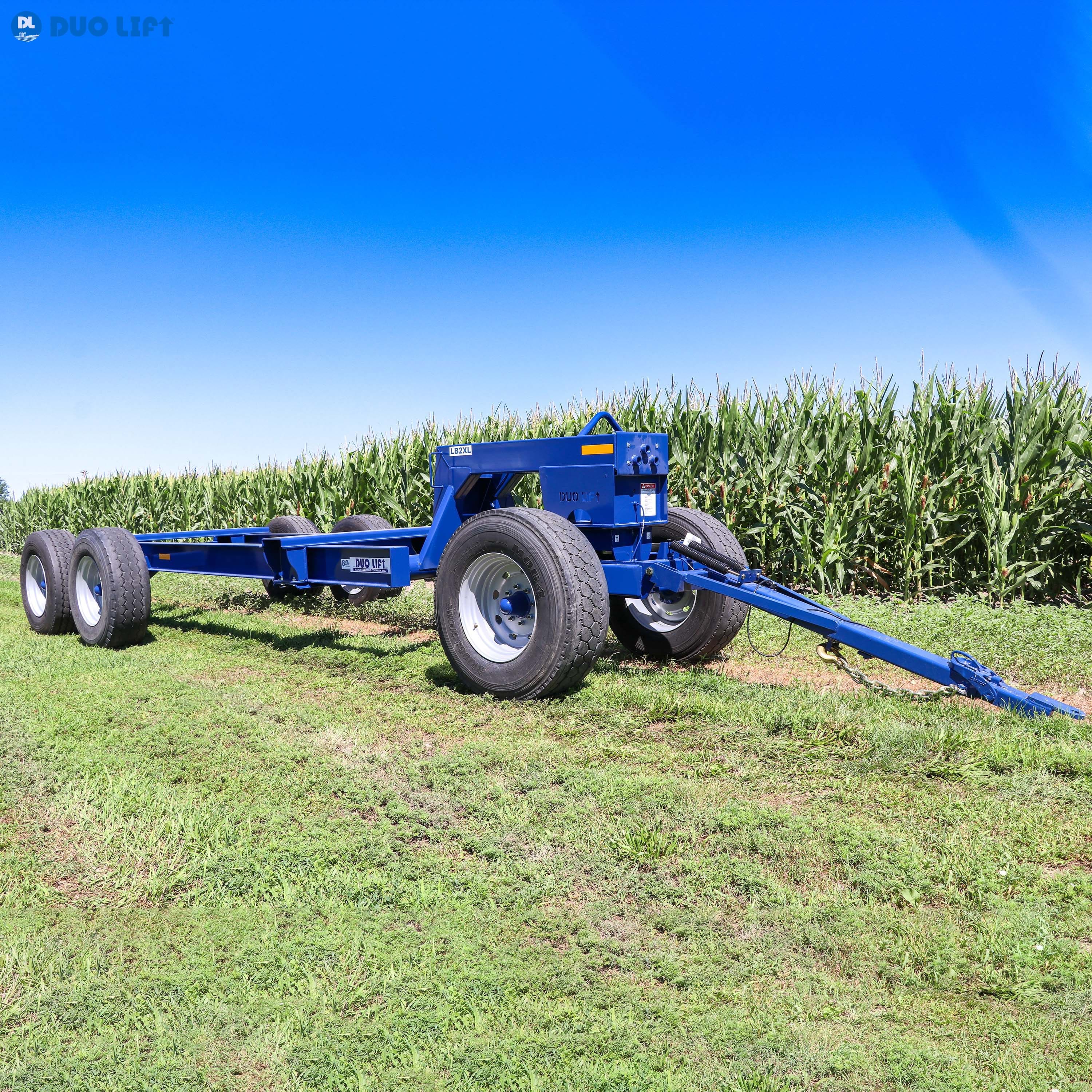

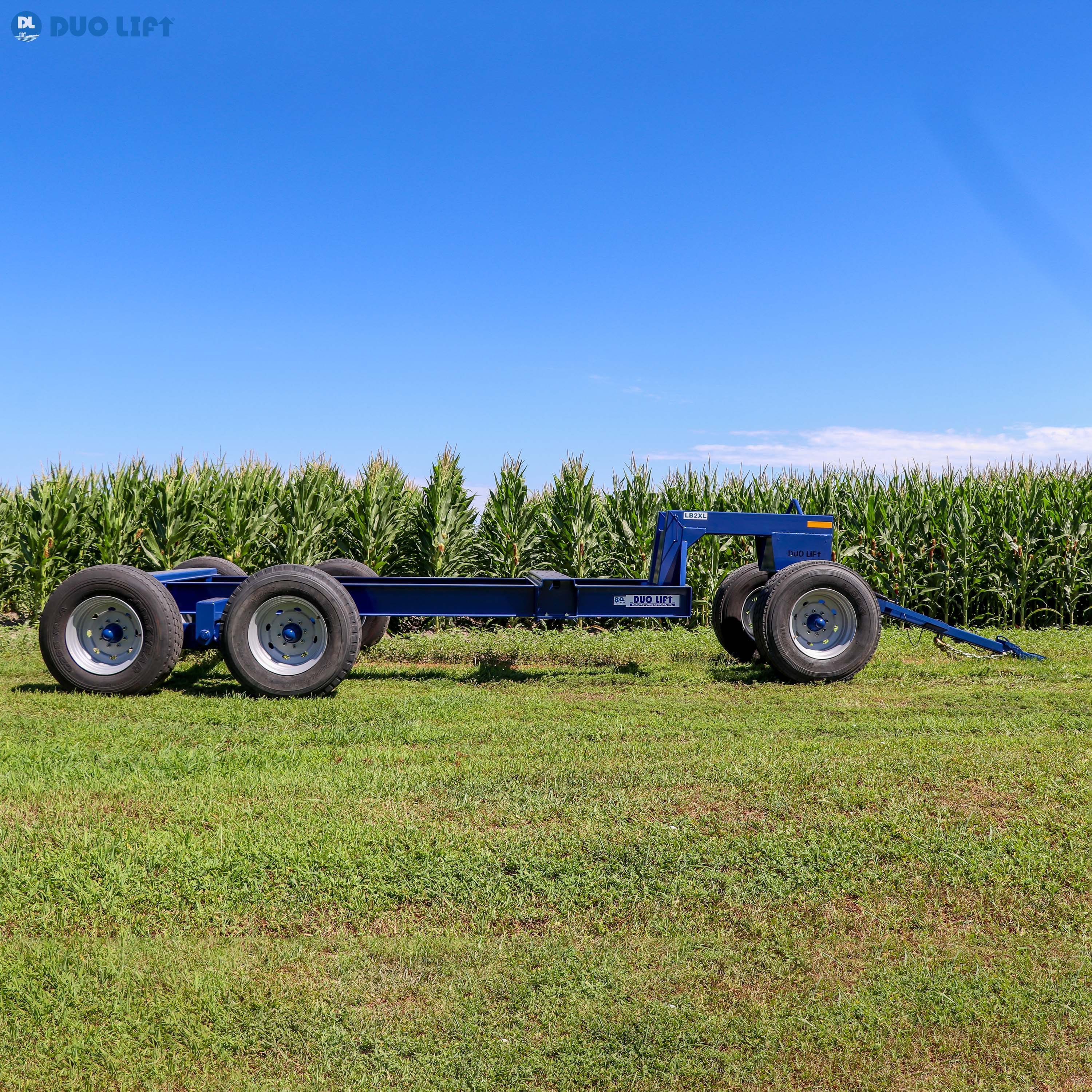

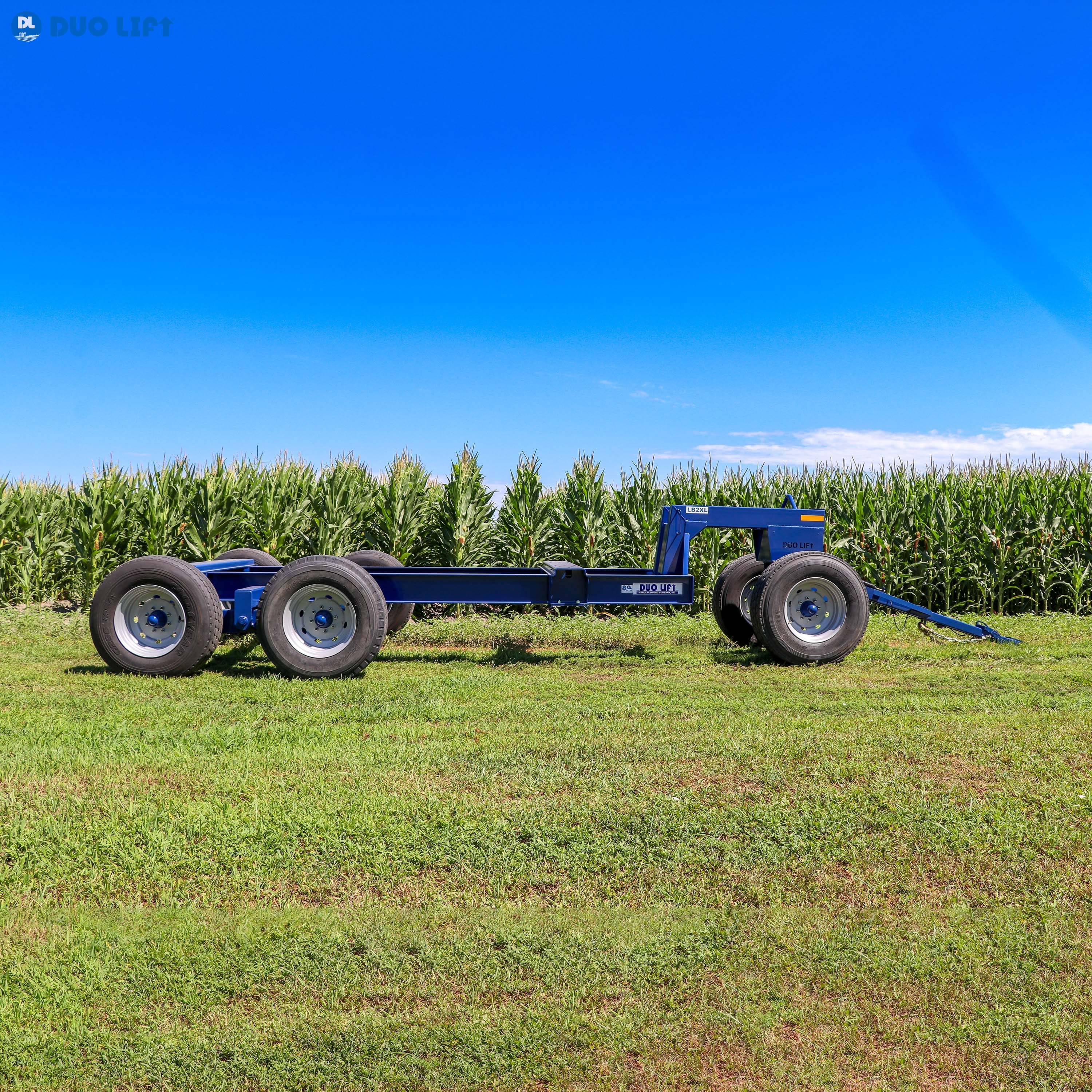

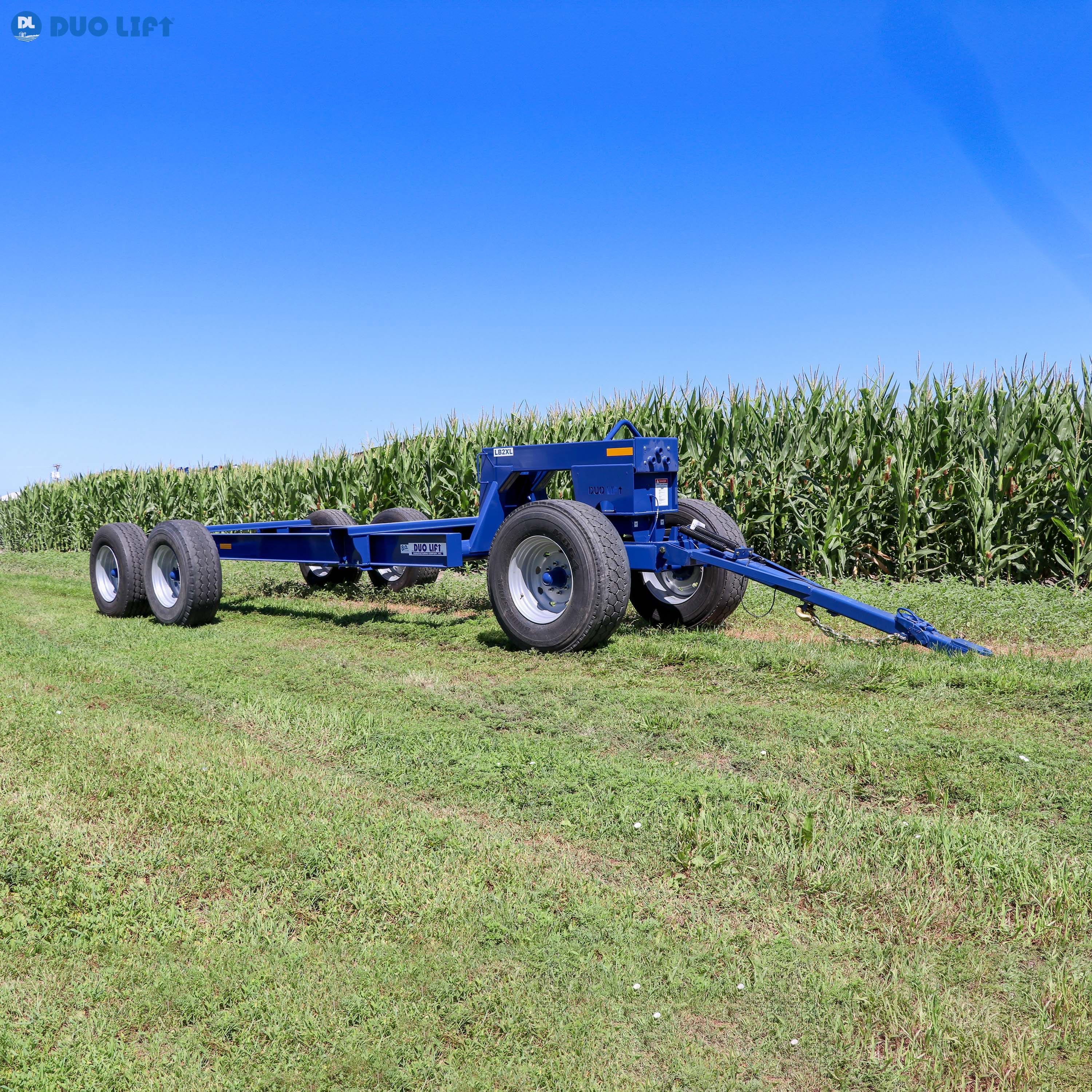

Duo Lift LB2 Low Profile
- Item #: 91738
Product Description
LB2, Walking Tandem Low-Boy Wagon, Includes walking tandem rear axle 108", Adjustable Tank Leg Pads to Accommodate 1,000 or 1,465 NH3 Tanks
LB2, Walking Tandem Low-Boy Wagon, Includes walking tandem rear axle 120", Adjustable Tank Leg Pads to Accommodate 1,000 or 1,465 NH3 Tanks
5th Wheel steering with 2" SAE, Heat Treated 75 Ton Semi King Pin Turntable, 20" Dia.
Adjustable tank supports to Accommodate Twin 1000 or 1450 NH3 Tanks 2000 and 3000 Shorty Tank Supports Optional
TONGUE: 4" x 3" Heavy Duty Tubing with (2) DOT 1/2" x 40" Safety Chains
NH3 Hose Routing Brackets, Removable Front Mounting Plate with (3) 1-1/4", Schedule 80
NH3 Couplings Installed, Roll Bar on Front of Gooseneck and Ag Conspicuity Tape
Duo Lift provides Duo Lift ag parts such as the 91738 Duo Lift LB2 Low Profile.
Product Specs

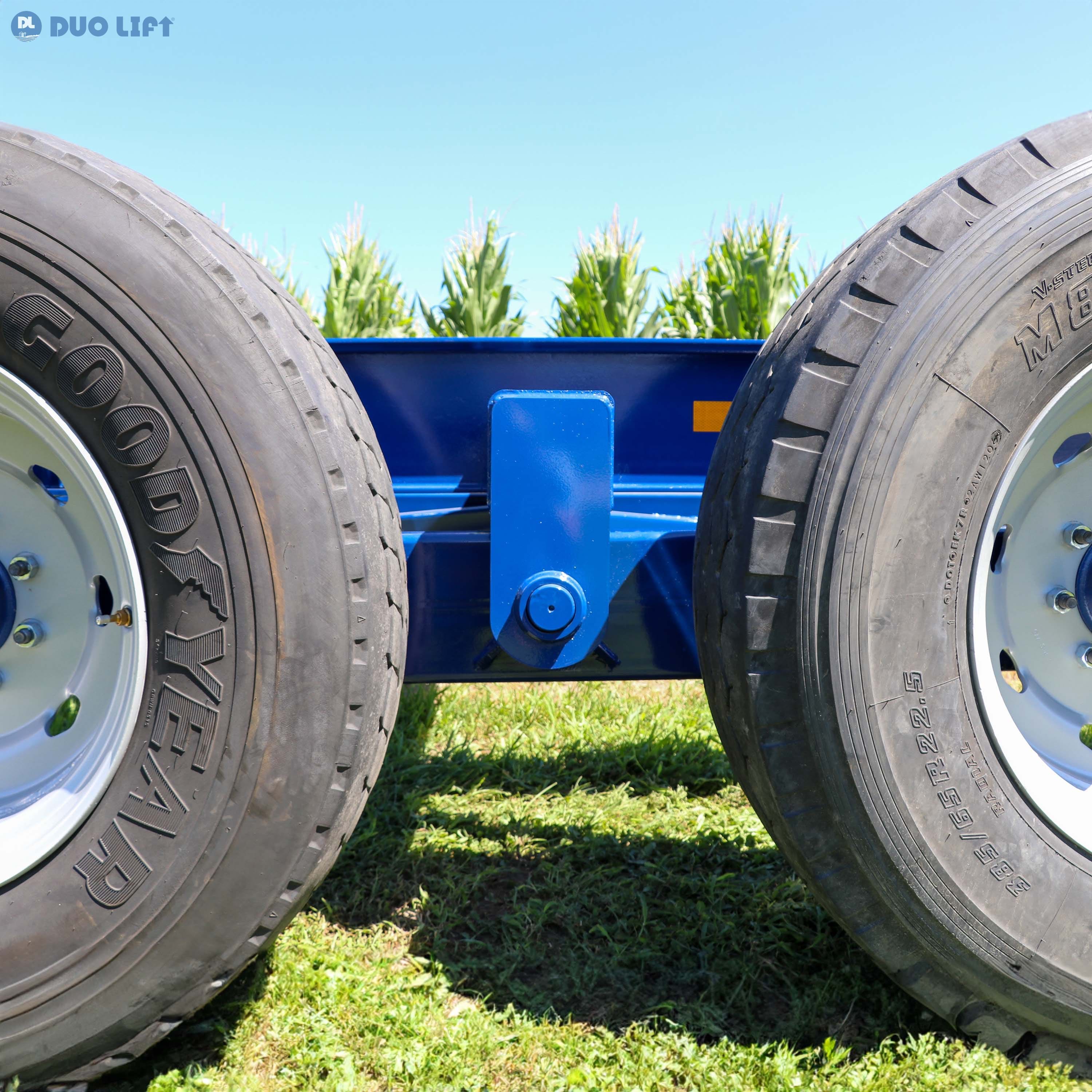

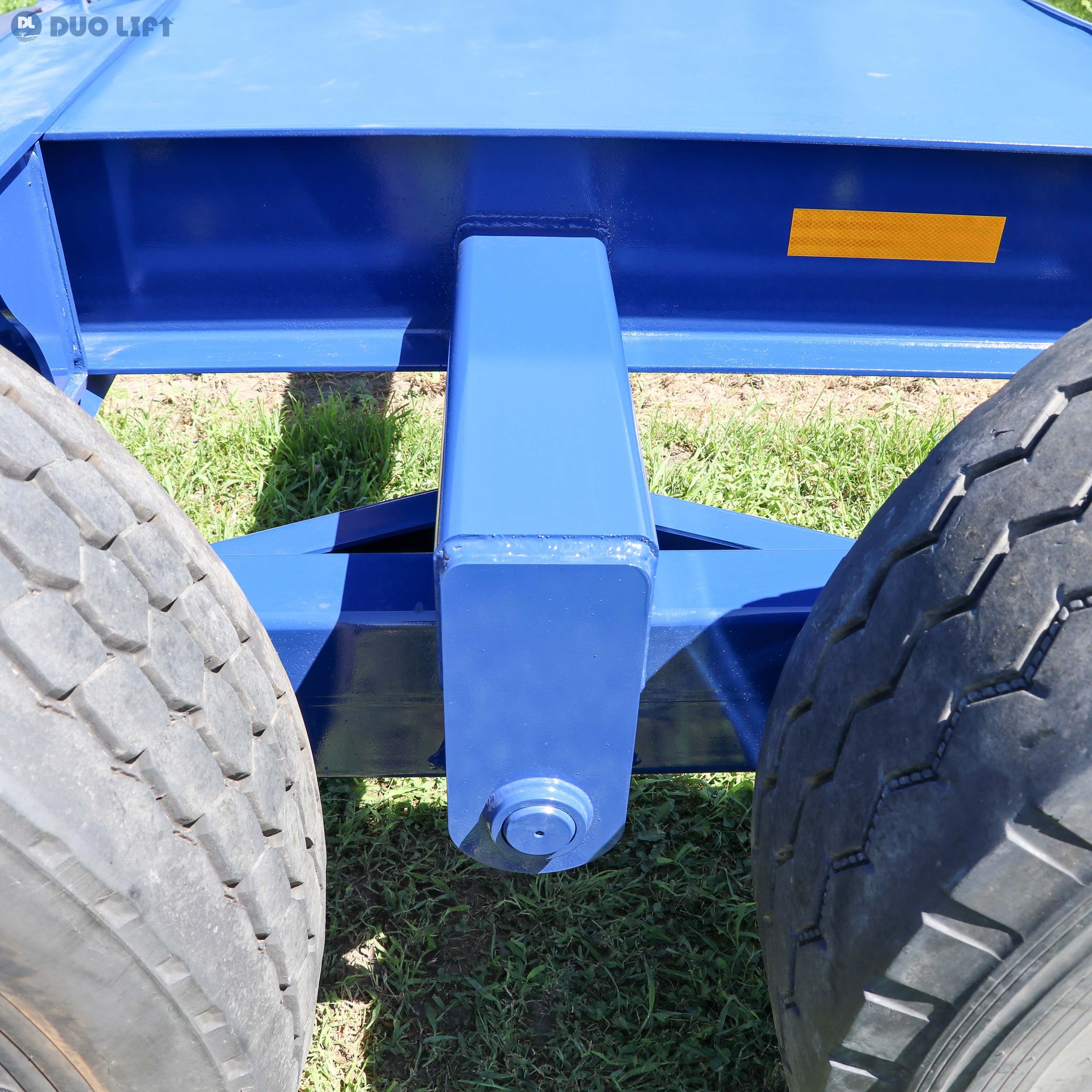

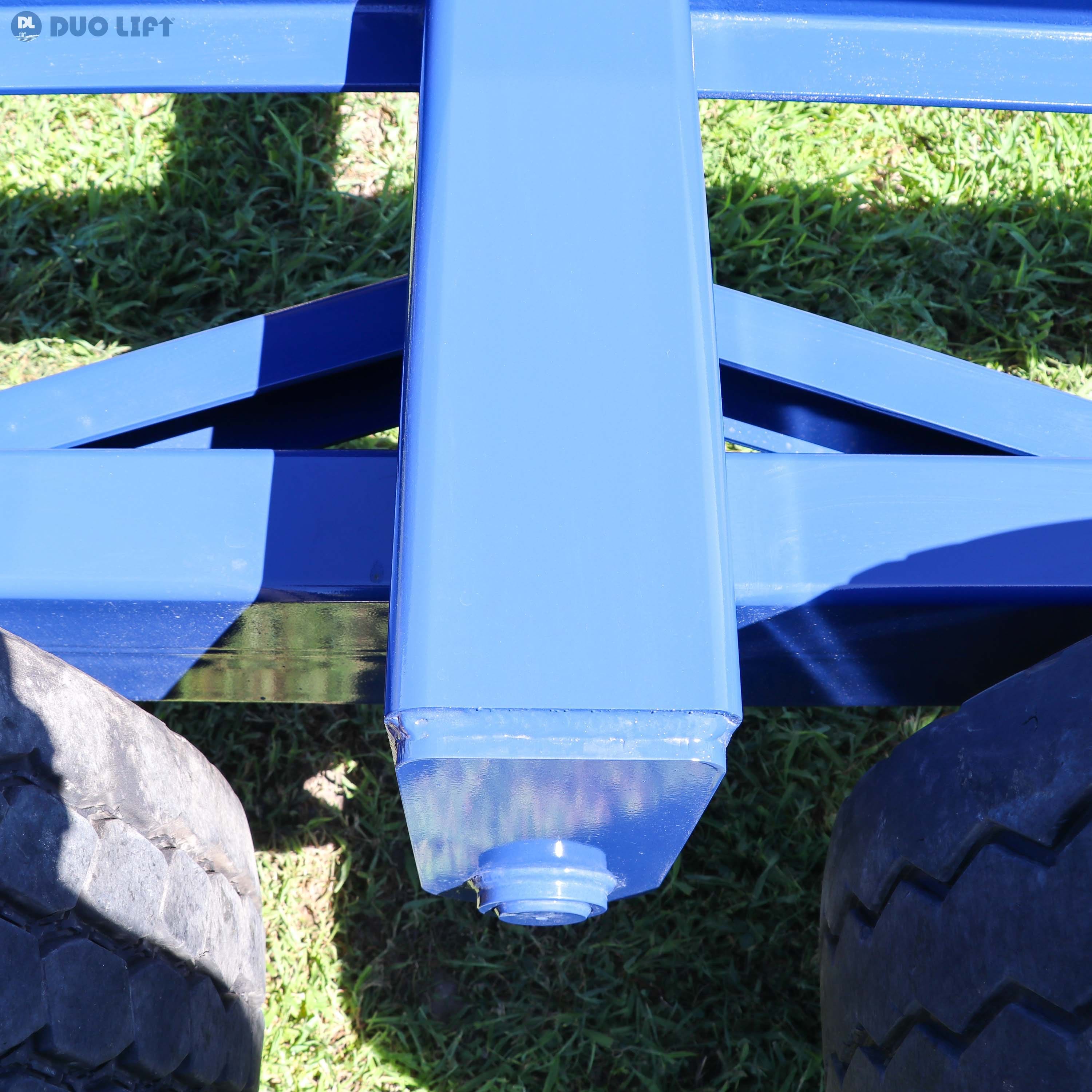

- Axles8” x 4” Heavy Wall Tubing with 2.75” Dia. Rocking Pin and Seamless (DOM) brushing
- Capacity28000 Lbs. GVWR

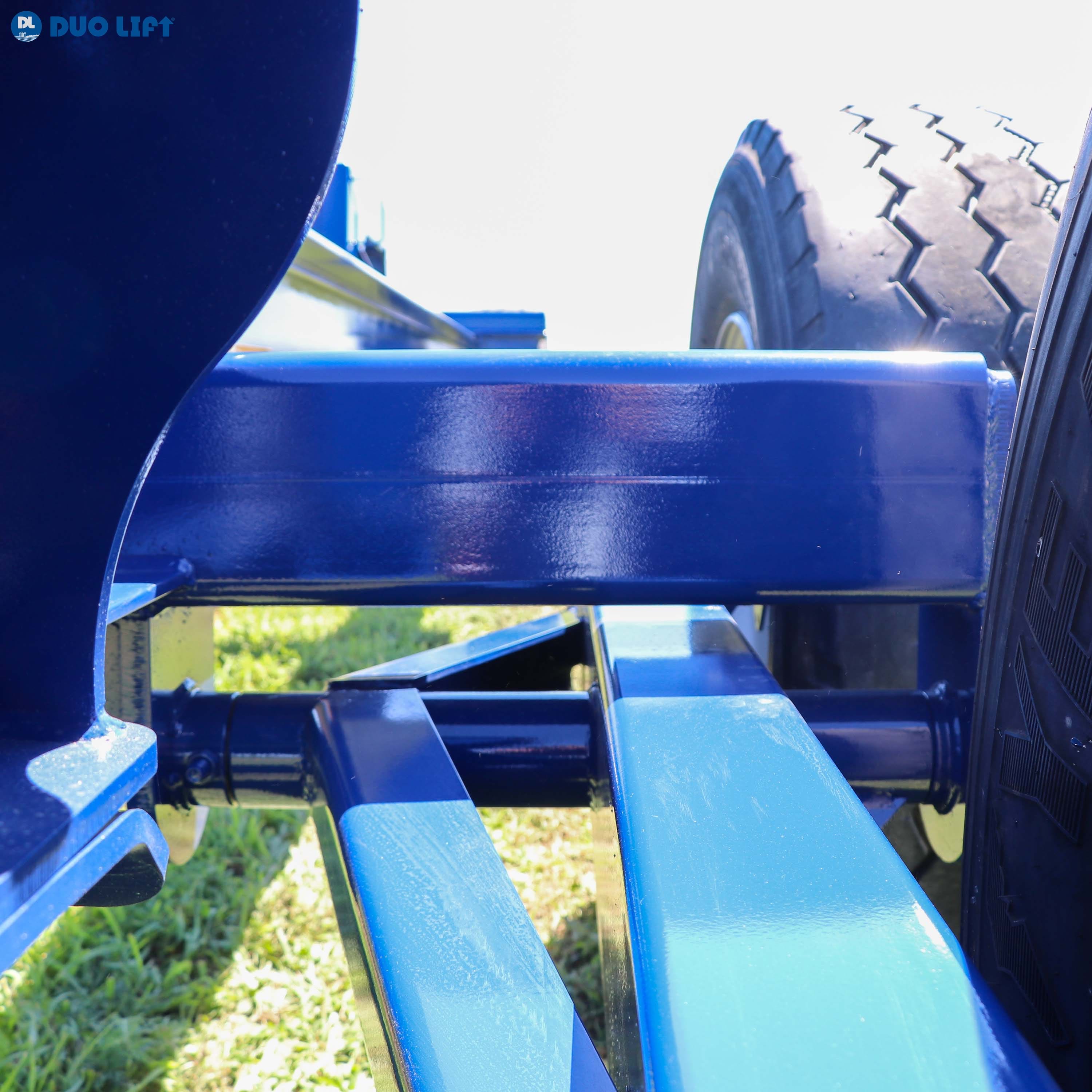

- Frame10" Wide-Flange Steel Beams and 6" Schedule 80 Round Torque Tube
- GooseneckDouble 8" X 4" Heavy Wall Rectangular Tube
- Hubs819; 8-Bolt on 8" Bolt Circle; 5790 Lbs. Cap. Ea.

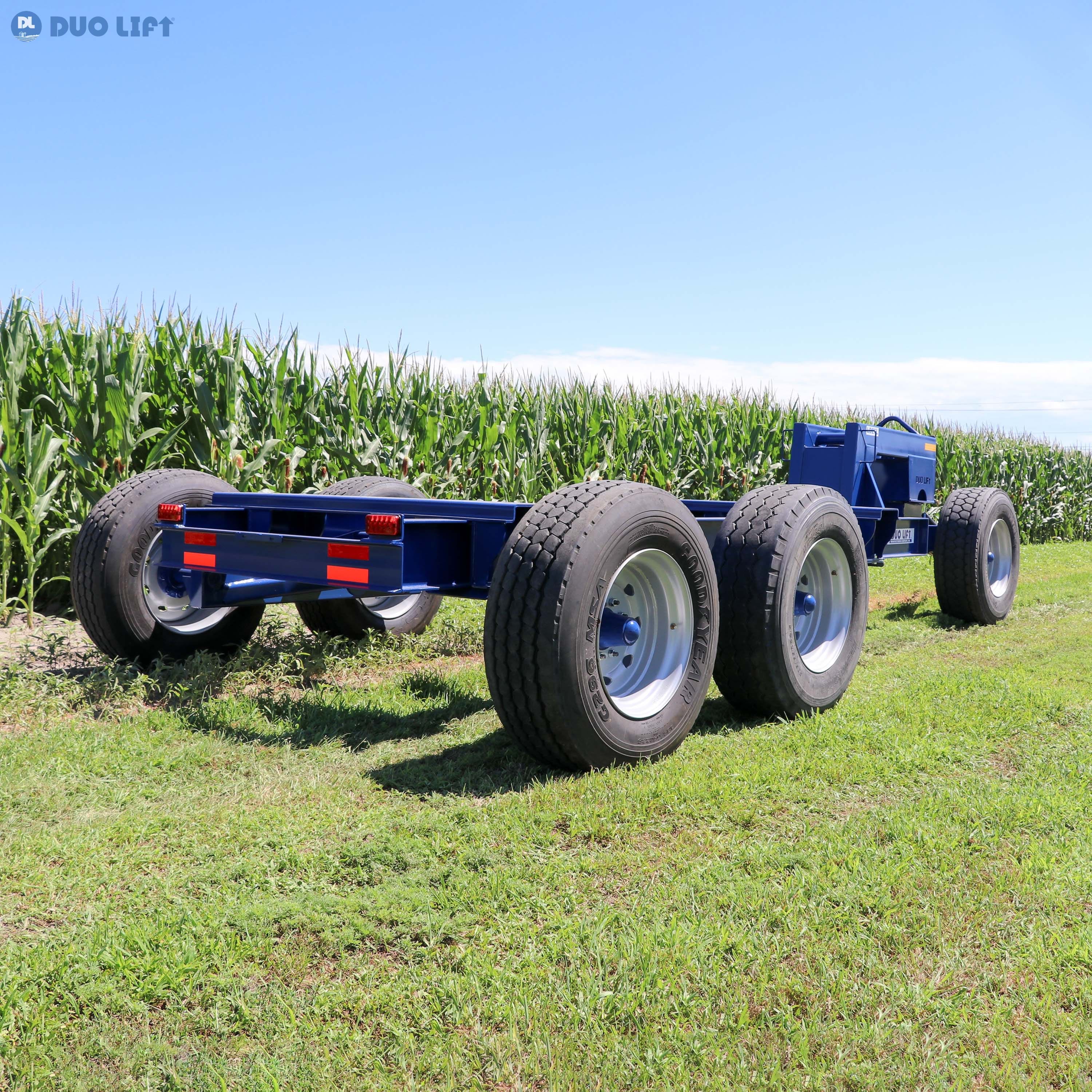

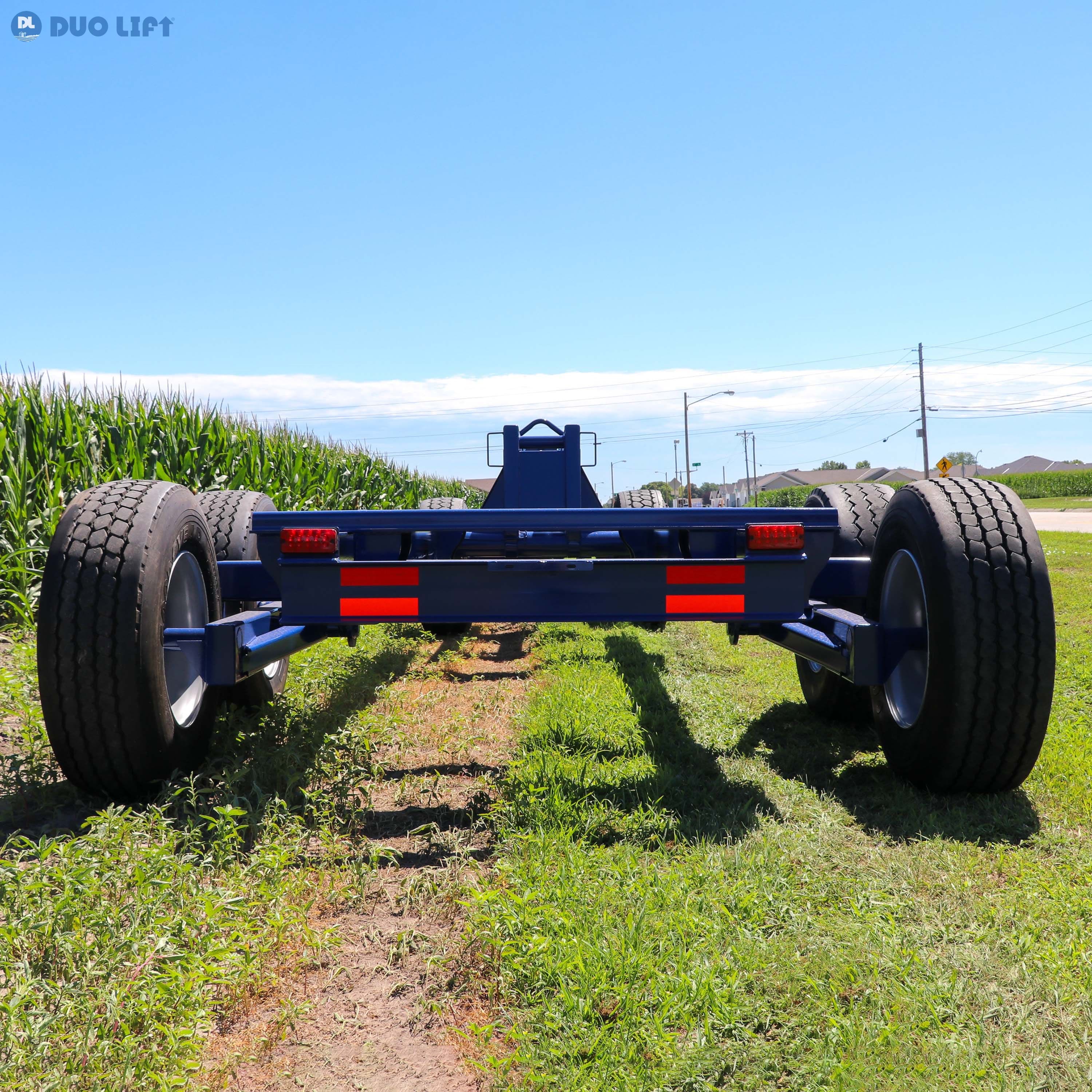

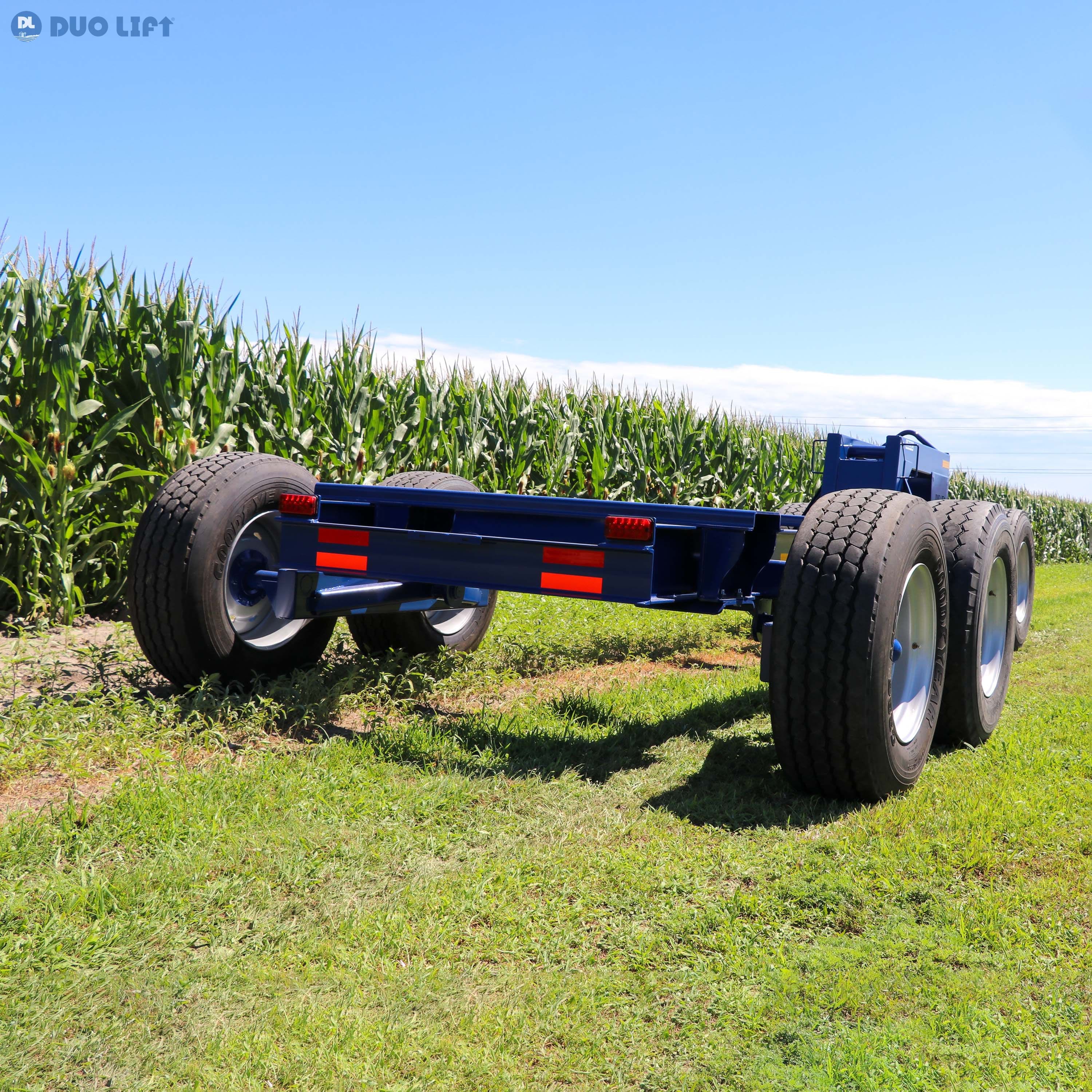

- LightsStop / Turn / Tail Function Red LED Lights with 7-way RV connector
- Spindles2.5" Dia 1144 Shaft
- Tank(2) 1000 Gallon or (2) 1450-Gallon NH3 Tanks (1) 2000 Gallon Short Tank or (1) 3000 Gallon NH3 Tank
- Track WidthFront 60" Rear; walking tandem
- Trailer Weight3030 Lbs. w/o Wheels & Tires
- Wheel Base20' 10"
- Wheels16.1 x 14 x 8 - 8 Solid Plate Center Disc; 8000-Lbs. Cap. Each; Silver Spoke
