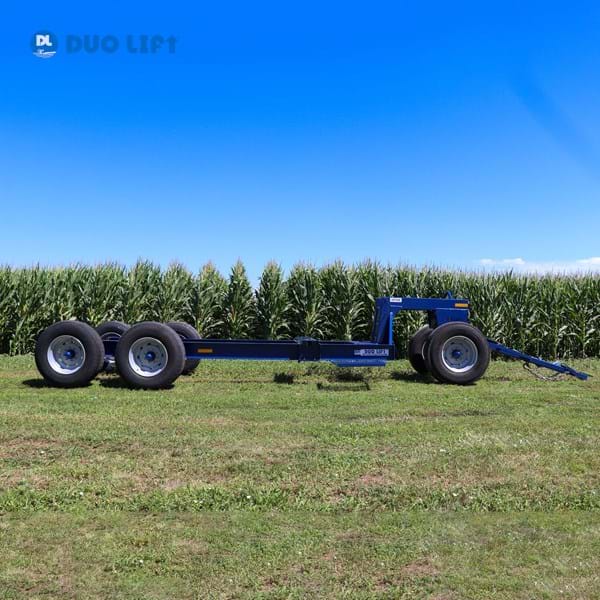

Duo Lift LB1TXL Low Profile
- Item #: 90506
Product Description

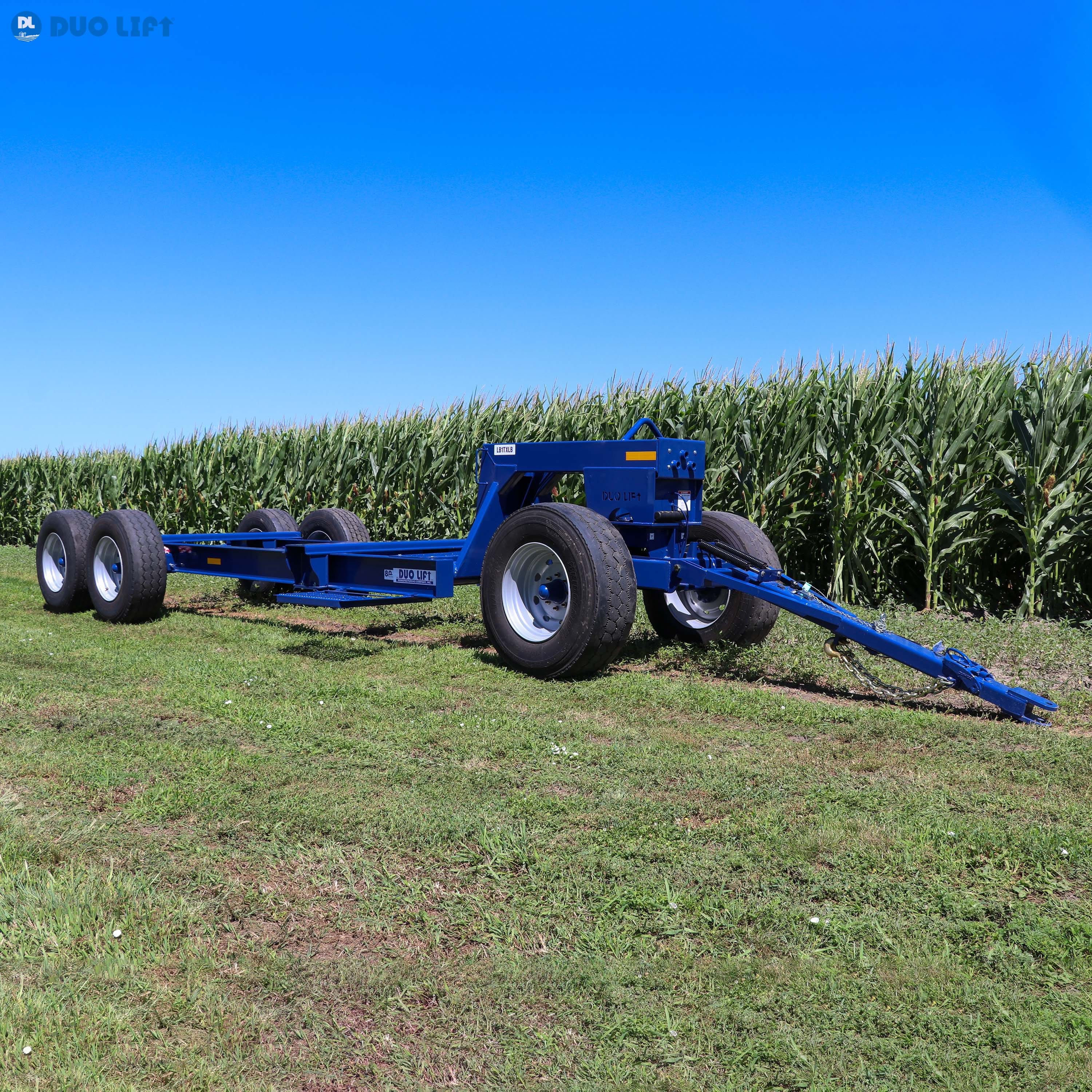

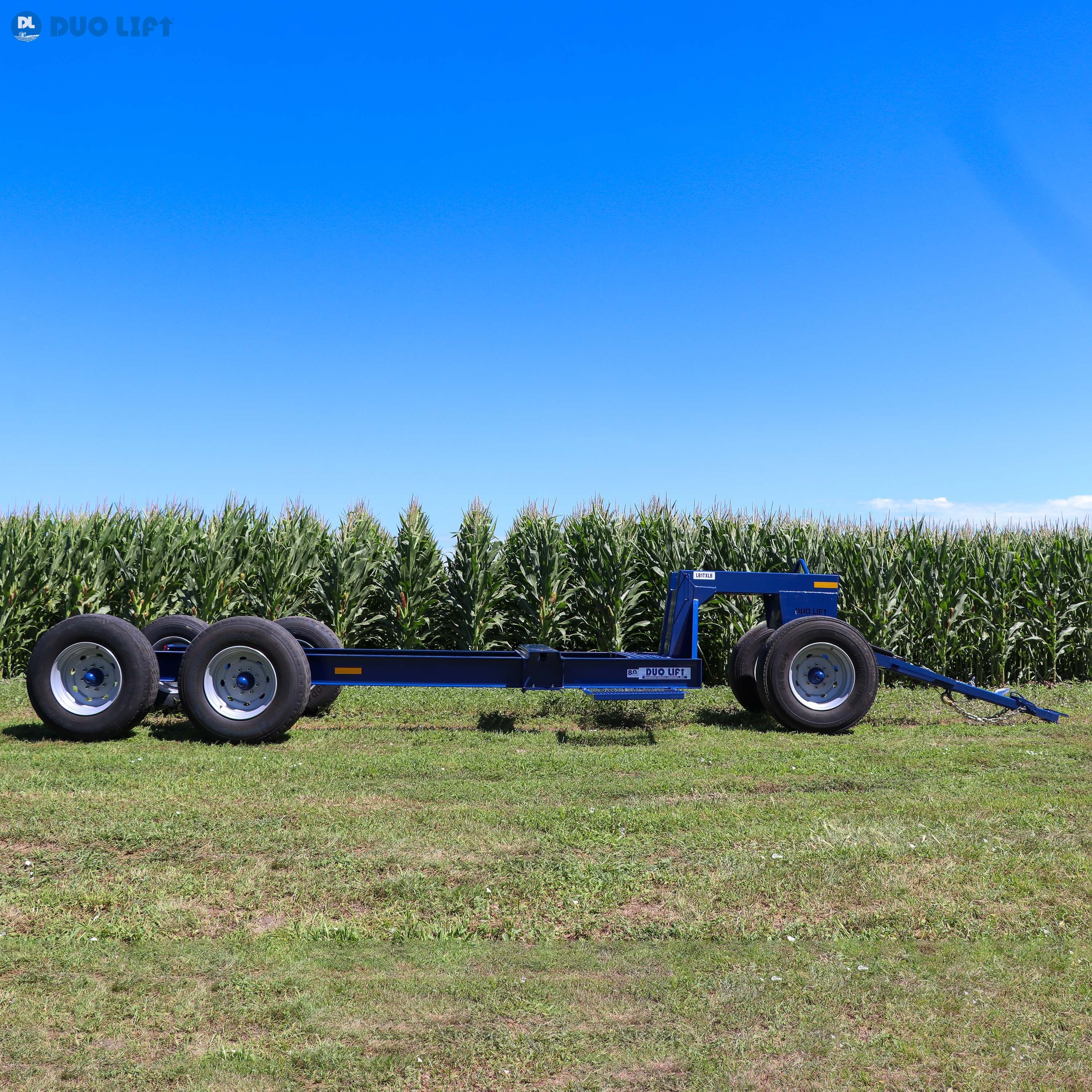

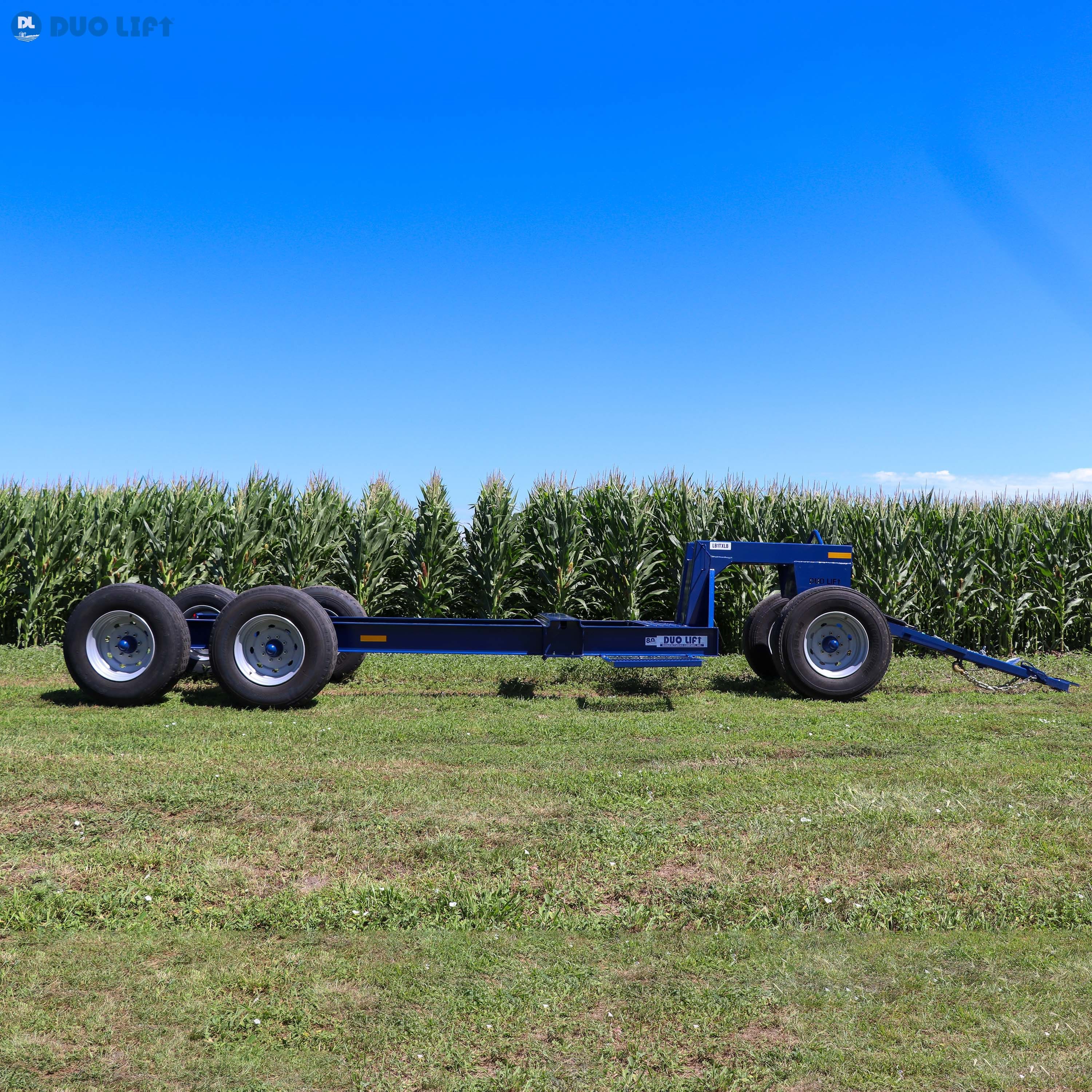

LB1TXL, UNIVERSAL LOW-BOY WAGON, INCLUDES TANDEM ADJUSTABLE REAR AXLE 92-120", HEAVY DUTY EXTENSION TONGUE WITH SPRING LIFT ASSIST, 886 HUBS, 11.75 X 22.5 WHEELS WITH 385/65R22.5 USED SUPER SINGLE TIRES, ADJUSTABLE TANK LEG PADS TO ACCOMMODATE 1,000 OR 1,465 NH3 TANKS AND AG LIGHTS

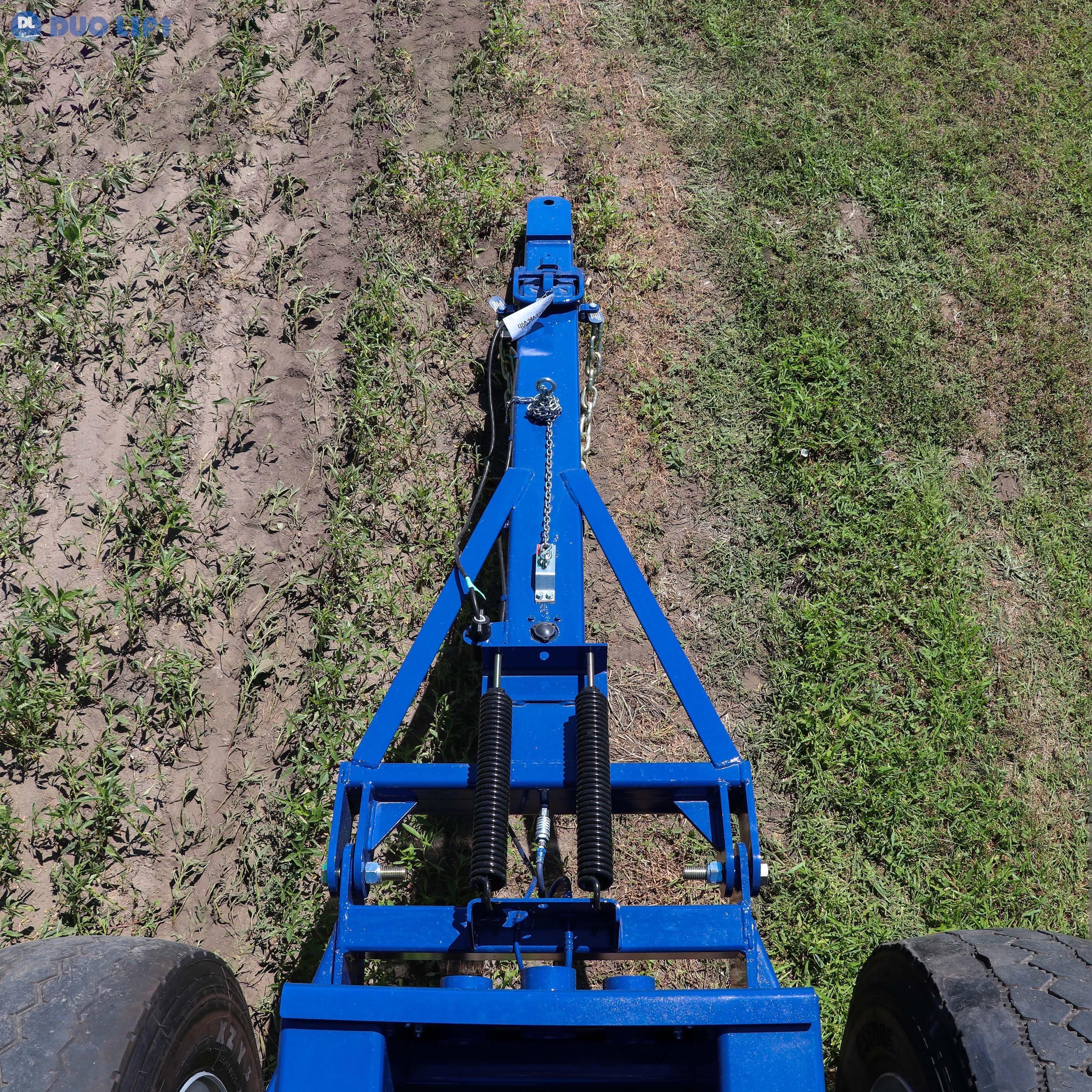

5th wheel with 2: SAE, Heat Treated 75-Ton Semi Kin Pin Turnable, 20” Dia. SteeringAdjustable tank supports to accommodate twin 1000 or 1450 NH3 or 2000 short or 3000 short tank Heavy Duty Extension Tongue with Double Spring Lift Assist, (2) DOT 1/2” x 40” Safety ChainsNH3 Hose Routing Brackets, Removable Front Mounting Plate with (3) 1-1/4” Schedule 80 NH3 couplings installed, roll bar on front of gooseneck and ag conspicuity tape
Duo Lift provides Duo Lift ag parts such as the 90506 Duo Lift LB1TXL Low Profile.
Product Specs
- AxlesFront axle: 8” x 4” Heavy Wall Tubing with 2.75” Dia. Rocking Pin and Seamless (DOM) brushing
- Capacity32000 lbs G.V.W.R; Weight: 4000 -4500 lbs

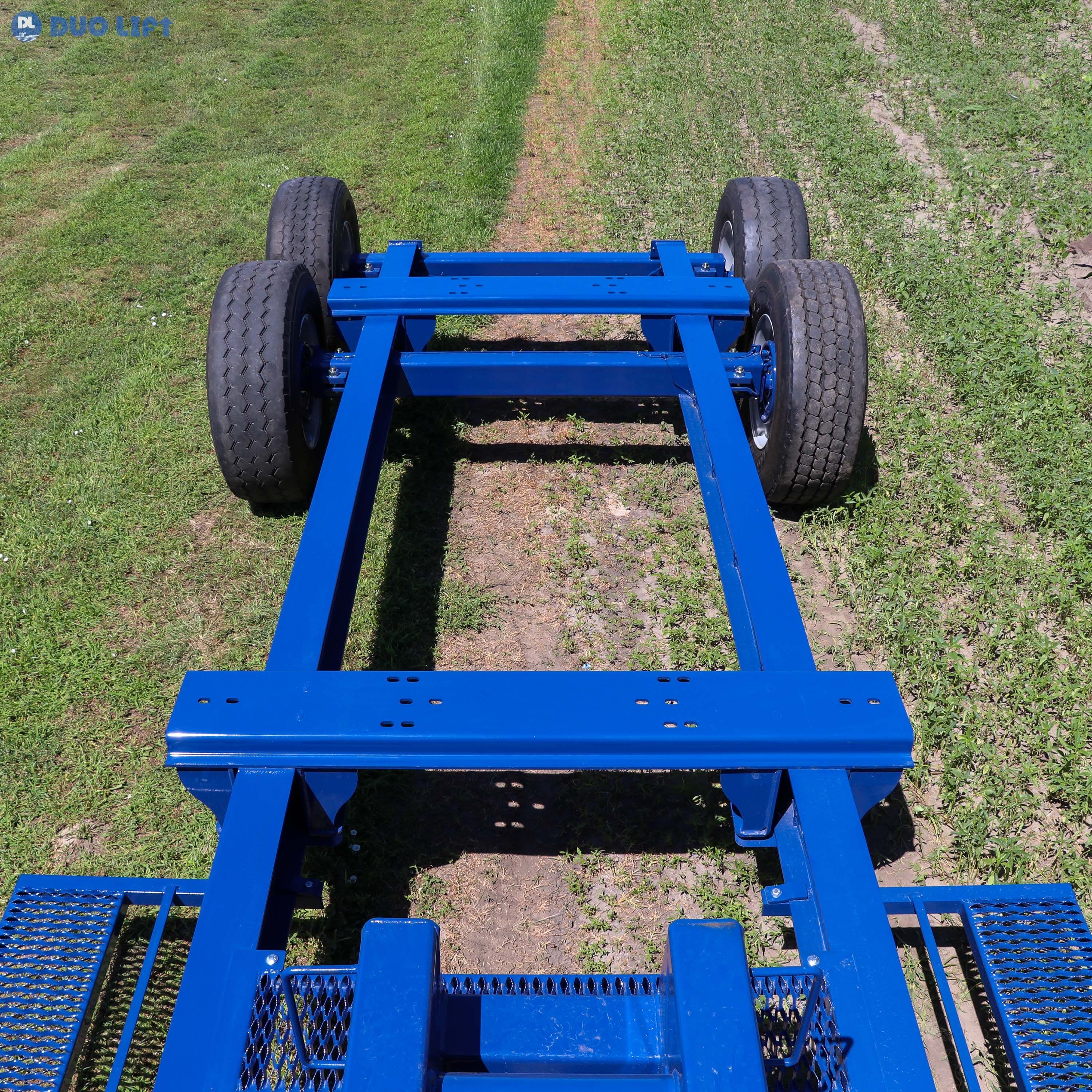

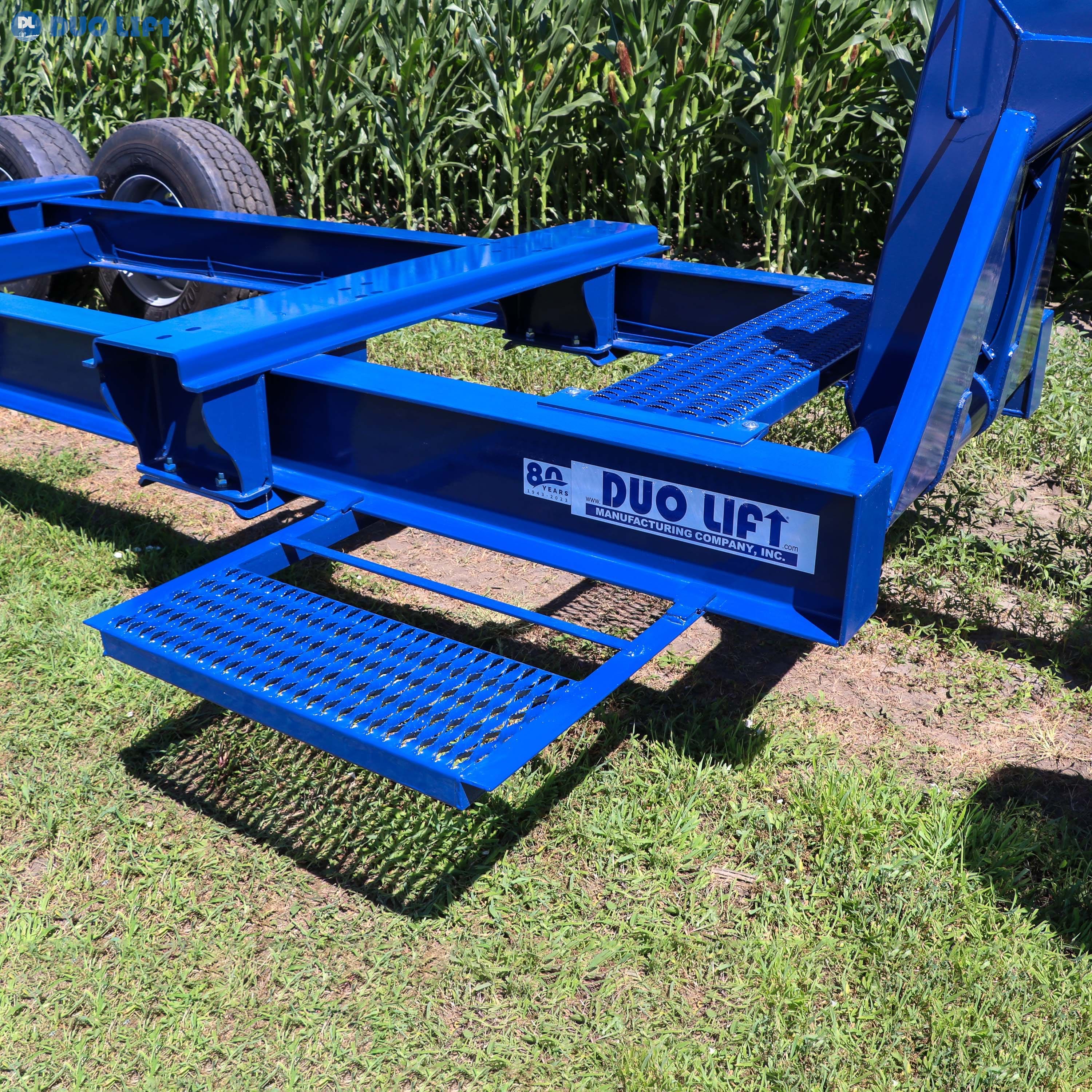

- Frame10” Wide-flange steel beams and 6” schedule 80-round torque tube
- GooseneckDouble 8” x 4” Heavy Wall Rectangular Tube
- Hubs886; 8-bolt; 8000 lb; FRONT AND REAR

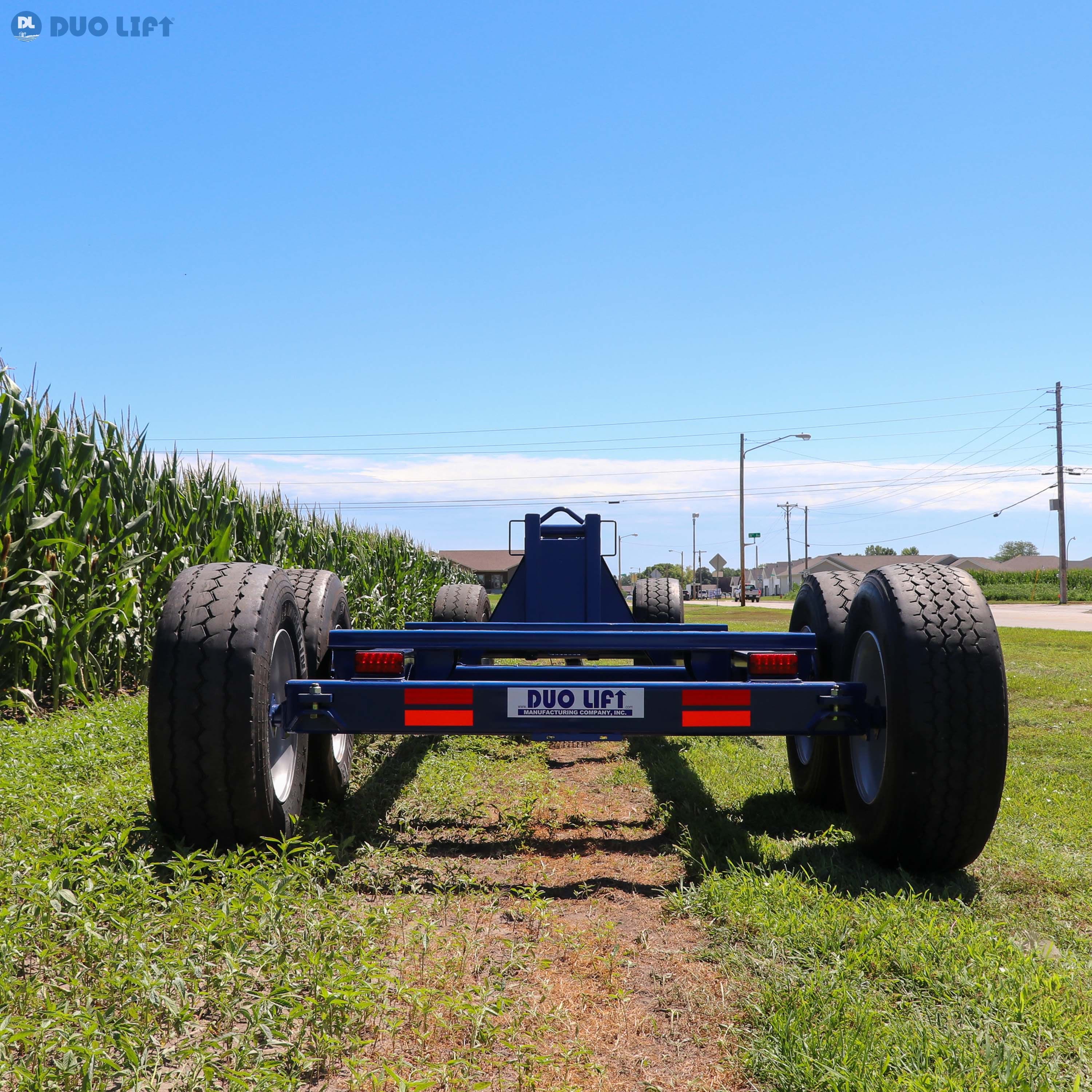

- LightsStop/Turn/Tail Function Red LED lights with 7-way RV connector
- Spindles3” Dia. 1144 Shaft
- Tank(2) 1000 Gallon or (2) 1450- Gallon NH3 tanks(1) 2000 Gallon Short Tank or (1) 3000 Gallon NH3 tank
- Tires(6) 385/65R22.5 Used Super Single Tires

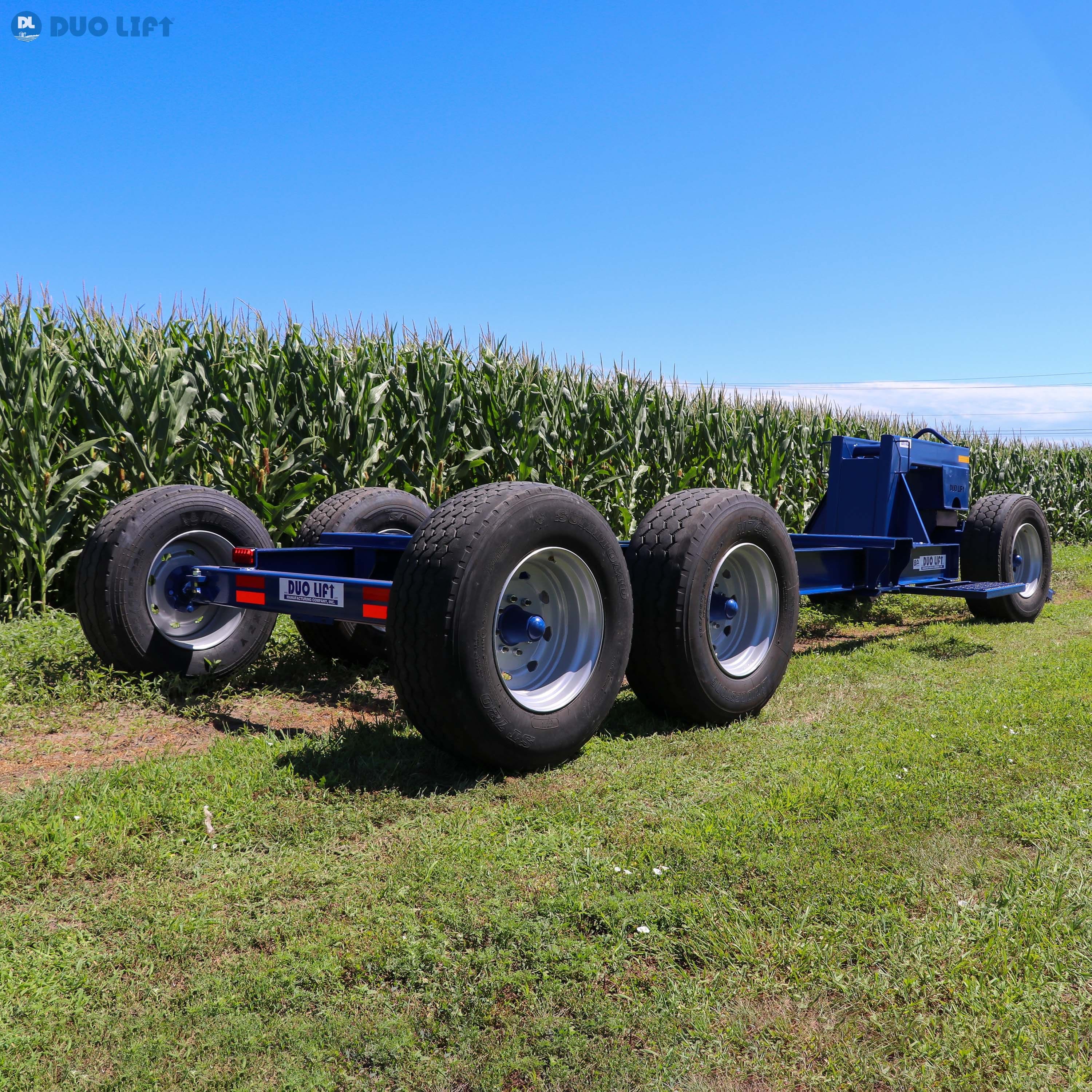

- Track WidthFront 60”; Rear Adjustable Axle 92” - 120”
- Wheel Base16’-5” - first tire; 20’-10” second tire
- Wheels(6) 22.5 x 11.75 x 8 bolt 8” B.C. Silver Spoke
