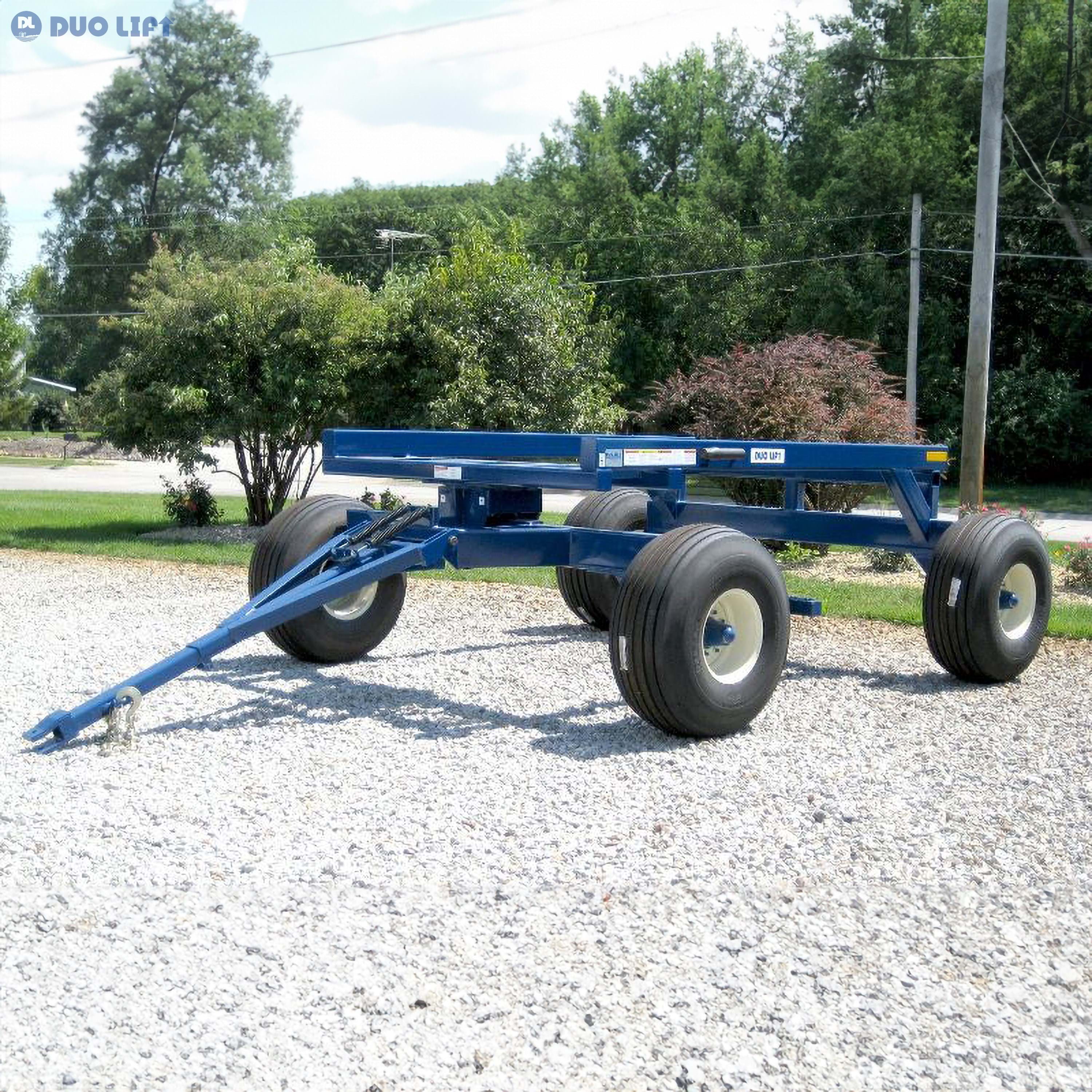

Duo Lift SN2900 Hi-Rise Wagon
- Item #: 90449
Product Description
SN2900, Hi-Rise Wagon, 120" Non-Adjustable Track Width for (1) 2,000 Gallon Horizontal Liquid Poly Tank
Rocking Front Bolster with 1.75" Dia. R. Pin
5th Wheel Steering w/ 2" SAE Semi King Pin and 20" Dia. Discs
4" x 3" Tongue with (2) 1/2" x 40" DOT Safety Chains w/ Hook & Latch
6" x 4" Double Stringers, Conspicuity Tape
Duo Lift provides Duo Lift ag parts such as the 90449 Duo Lift SN2900 Hi-Rise Wagon.
Product Specs
- Axle Clearance30" w/ 16.5L x 16.1 Tires
- Axles6" x 4" Tubing
- Capacity4000 Lbs. GVWR
- Hubs886; 8-Bolt on 8" Bolt Circle 8000-Lbs. Capacity ea.
- LightsStandard
- Spindles3.0" Dia. 1144 Cold Rolled Shaft
- Tank(2) 1450 NH3 Tanks
- Track Width120" Non-Adjustable
- Wheel Base120" or 145" Included
- Wheels16.1 x 11 x 8 - 8; 8000-Lbs. Cap. Each Solid Plate Center Disc (SPCD); Silver
