Duo Lift TA50330D Commercial
- Item #: 400098
Product Description

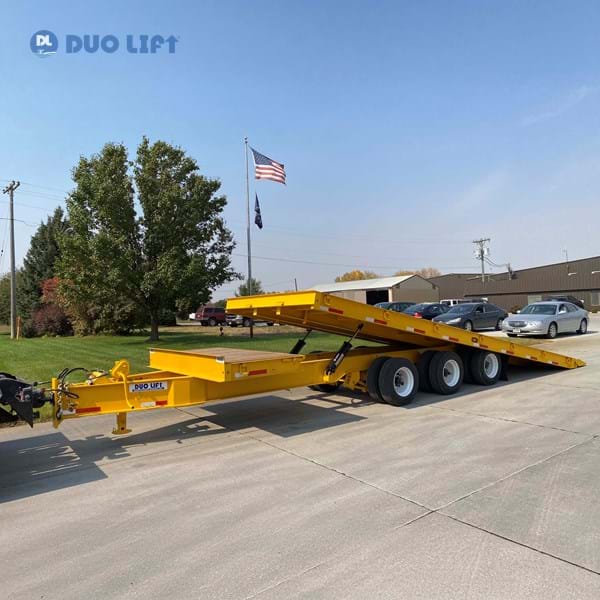

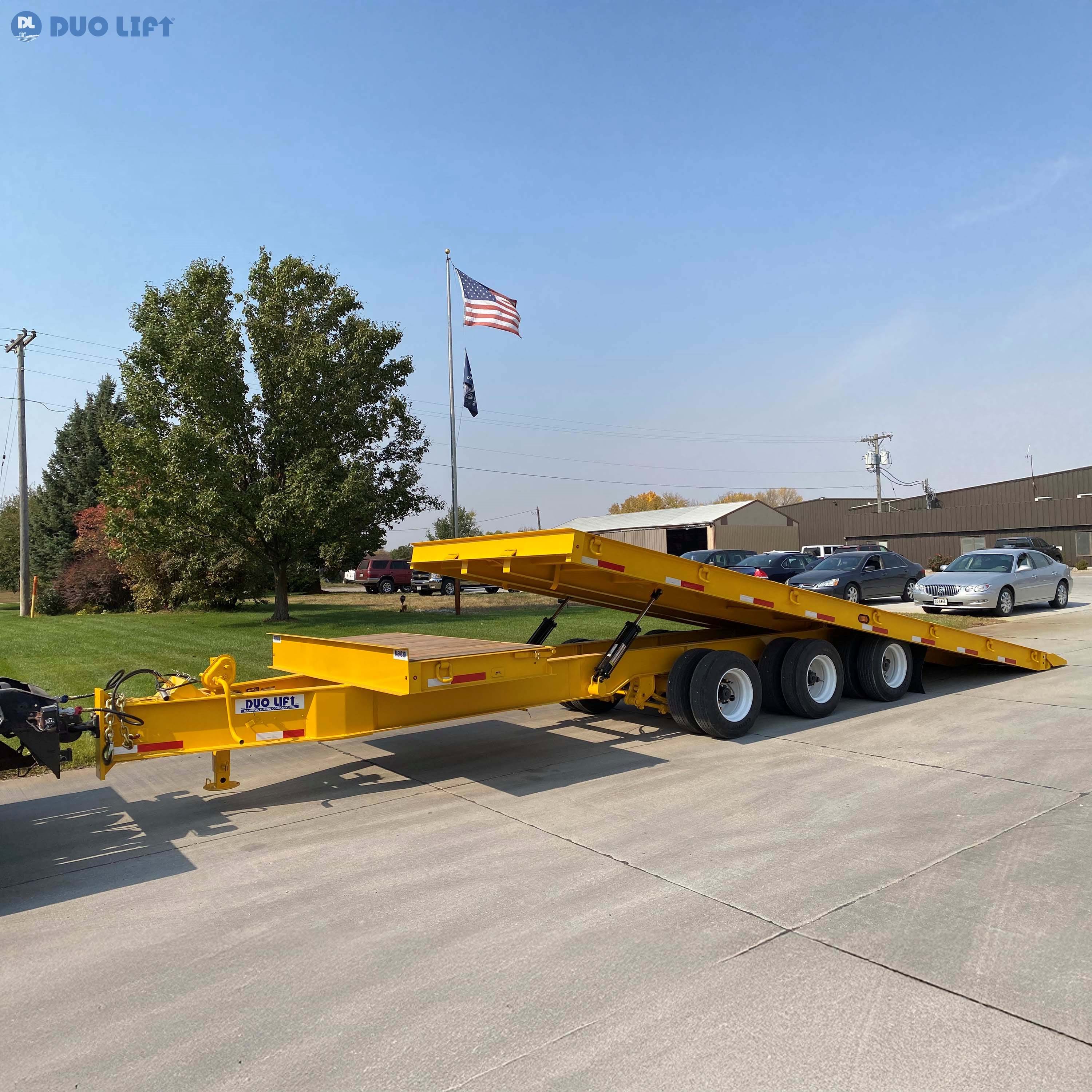

TRIPLE AXLE TILT BED TRAILER
FRONT OF TRAILER BULKHEAD, STRUCTURAL CHANNEL, FULL WIDTH, 4" ABOVE FLOOR HEIGHT, REFLECTIVE TAPE, (2) 1/2" G70 X 40" SAFETY CHAINS WITH CLEVIS HOOKS AND LATCH, (16) D-RINGS, AIR TANK LANYARDS, DOT TRAILER INSPECTION CERTIFICATION
Duo Lift provides Duo Lift ag parts such as the 400098 Duo Lift TA50330D Commercial.
Product Specs
- Axles(3) 22500 LB; 5" TUBULAR
- BrakesAIR WITH SAFETY BREAKAWAY 12.25" X 7.5" S-CAM; ABS ON ALL (6) WHEEL HUBS
- Capacity63000 LBS GVWR @ 60 MPH
- ColorFEDERAL YELLOW
- Deck2" NOMINAL APITONG WOOD; STEEL OVER WHEELS
- Dimensions36' L OVERALL (26' L FLAT TILT DECK; 4' STATIONARY DECK) X 102" W X 40" H; NOMINAL WHEN NOT LOADED
- Frame14" X 5" LONGITUDINAL BEAMS WITH 80000 PSI YIELD STRENGTH
- Hitch3" ID PINTLE RING WITH 15" TO 30" ADJUSTABLE HEIGHT
- Hubs17.5 X 6.75 X 8B/275 MM HUB-PILOTED DUAL DISC TYPE
- Hydraulic System(2) CYLINDER 3.5".X 14" HYDRAULIC TILT SHOCKS; CENTER CAM WITH PIN TILT LOCK
- Lights12V LED; DOT TURN; STOP; MARKER; AND LICENSE LAMP;7W ATA CONNECTOR; WIRE IN STEEL CONDUIT
- Park Stand12000 LB DROP LEG; TOP WIND JACK
- Ramps6" X 16" TAPER; FOLD DOWN; AIR ACTUATED
- SuspensionHUTCHENS H9700TUS WITH 354 SPRINGS
- Tires215/75R17.5 LRH RADIALS; GOODYEAR BRAND
- Tongue14" X 5" BEAMS WITH 80000 PSI YIELD STRENGTH; 72"
- Wheels17.5 X 6.75 X 8B/275 MM HUB-PILOTED DUAL DISC TYPE
