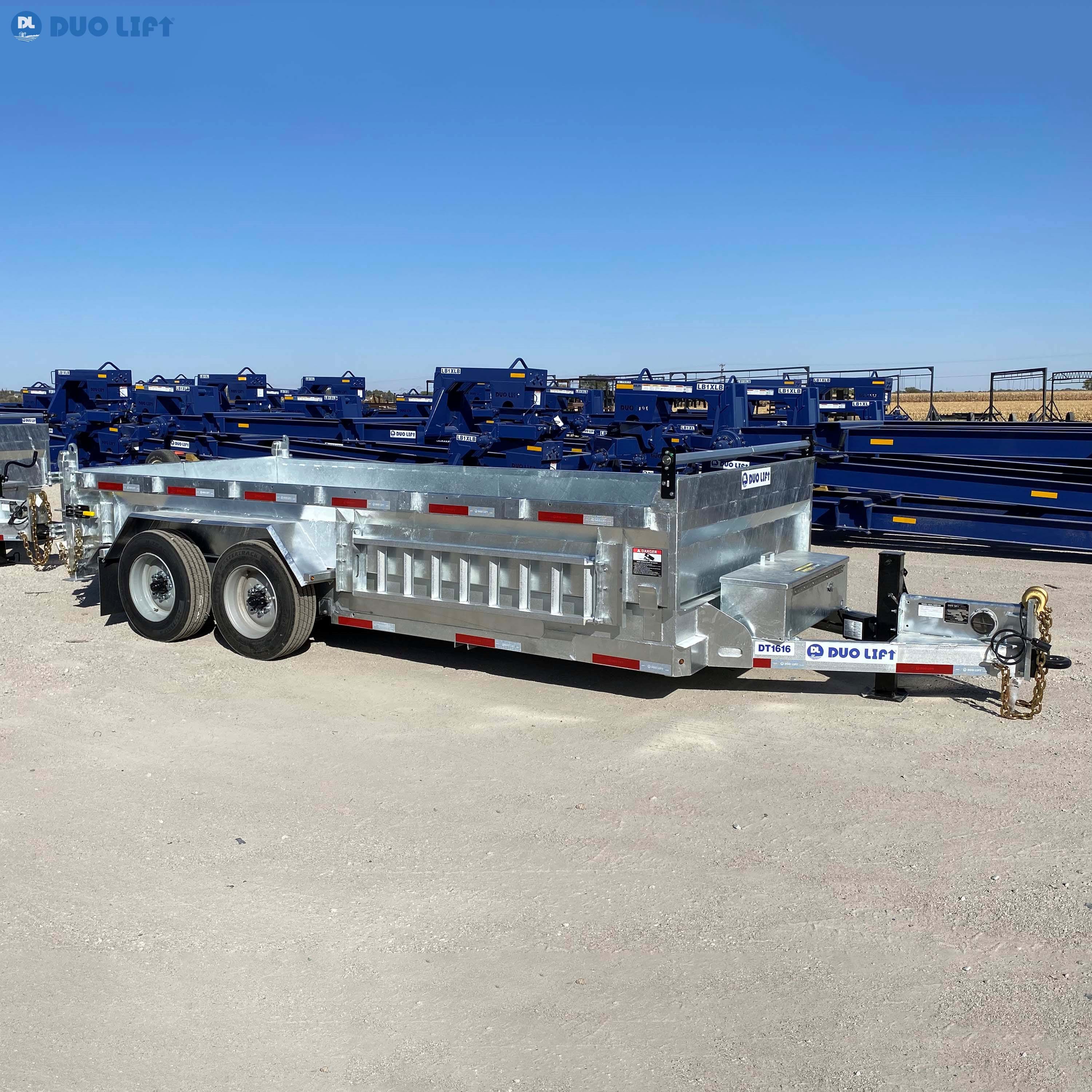

Duo Lift DT1616 Commercial
- Item #: 400125
Product Description
TANDEM AXLE DUMP TRAILER

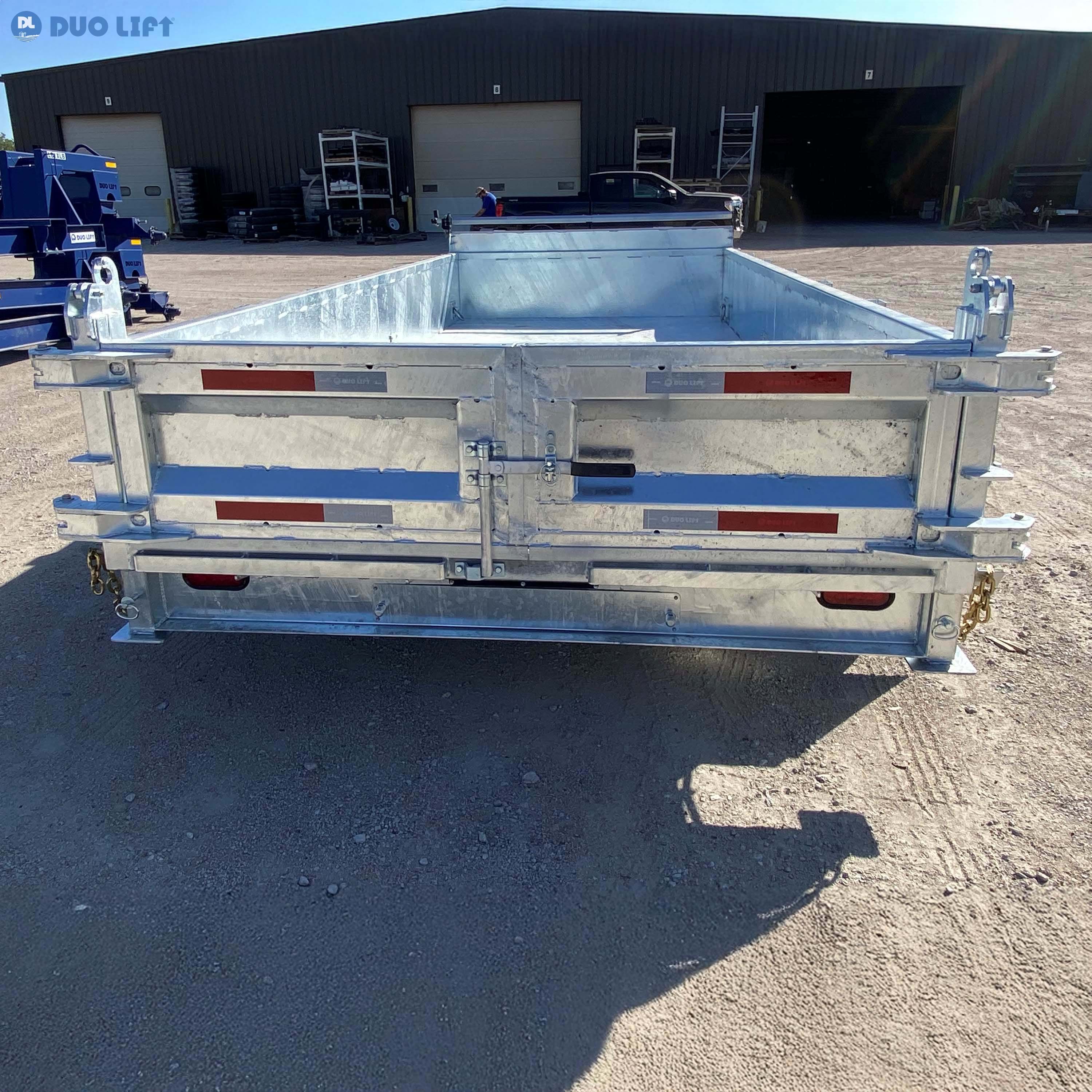

DOUBLE REAR SWING OUT DOOR WITH FULL WIDTH DUMP GATE FUNCTIONING TAILGATE,FRONT MOUNTED TARP, MESH 80" X 14' HAND CRANK TRAP ROLLER SYSTEM, RED AND WHITE REFLECTIVE CONSPICUITY TAPE, (2) 3/8" SAFETY CHAINS WITH LATCH HOOKS
Duo Lift provides Duo Lift ag parts such as the 400125 Duo Lift DT1616 Commercial.
Product Specs
- Axles(2) 8000 LB; 4" DROP; 8-BOLT; 6.5" BOLT CIRCLE; EZ LUBE
- Brakes4-WHEEL 12V ELECTRIC; 12 X 2 AND 12V BREAKAWAY KIT
- Capacity16000 LBS GVWR @ 55 MPH
- ColorHOT GALVANIZED TRAILER FRAME AND DUMP BOX; GLOSS BLACK JACK; PINTLE RING; SCISSOR HOIST; WHITE SPOKE WHEELS; BLACK SPLASH GUARDS; ALUMINUM DIAMOND PLATE TILT SYSTEM STORAGE BOX
- Cross MembersSTRUCTURAL CHANNEL; FORMED CHANNEL AND RECTANGULAR TUBE ON 16" CENTERS

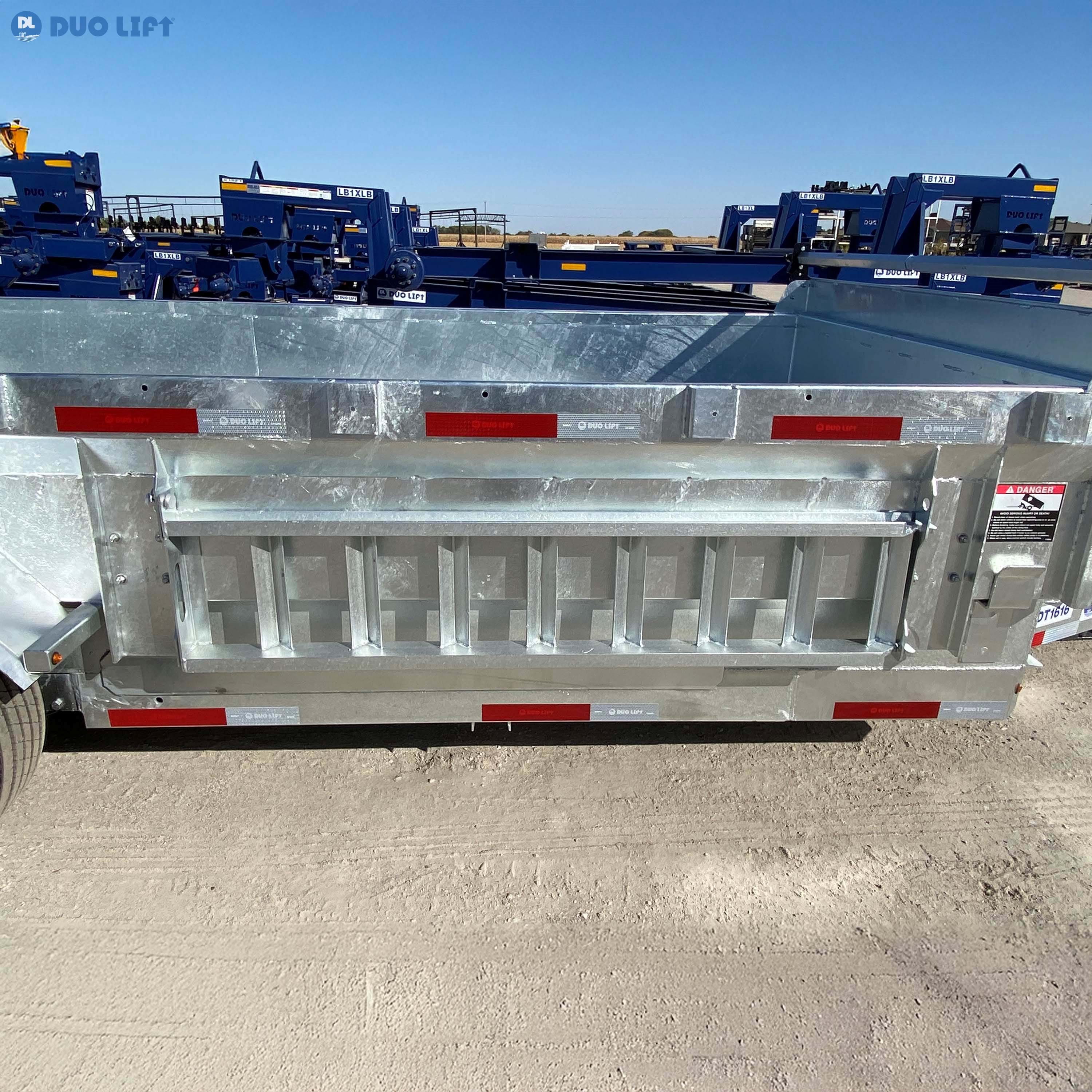

- DimensionsTRANSPORT LENGTH 22' 102" W X 45" H OVERALL DIMENSIONSDUMP BOX: 16' L X 80" W; 20" INSIDE HEIGHT 10-GAUGE WITH 10 STAKE POCKETS; (6) D-RINGS; (3) PER DUMP BOX SIDE; APPROX. 4" ABOVE FLOOR; 3/16" THICK SMOOTH STEEL DUMP BOX FLOOR
- FrameEXTENDING REAR TO AXLE HANGER; 8" STRUCTRUAL CHANNEL OR RECTANGULAR TUBE
- HitchBOLT-ON; 3" PINTLE RING WITH 14" TO 24" ADJUSTABLE HEIGHT; 25000 LB CAPACITY
- Hubs17.5 X 6.5; 8-BOLT ON 6.5" BOLT CIRCLE; SOLID PLATE SILVER PAINTED

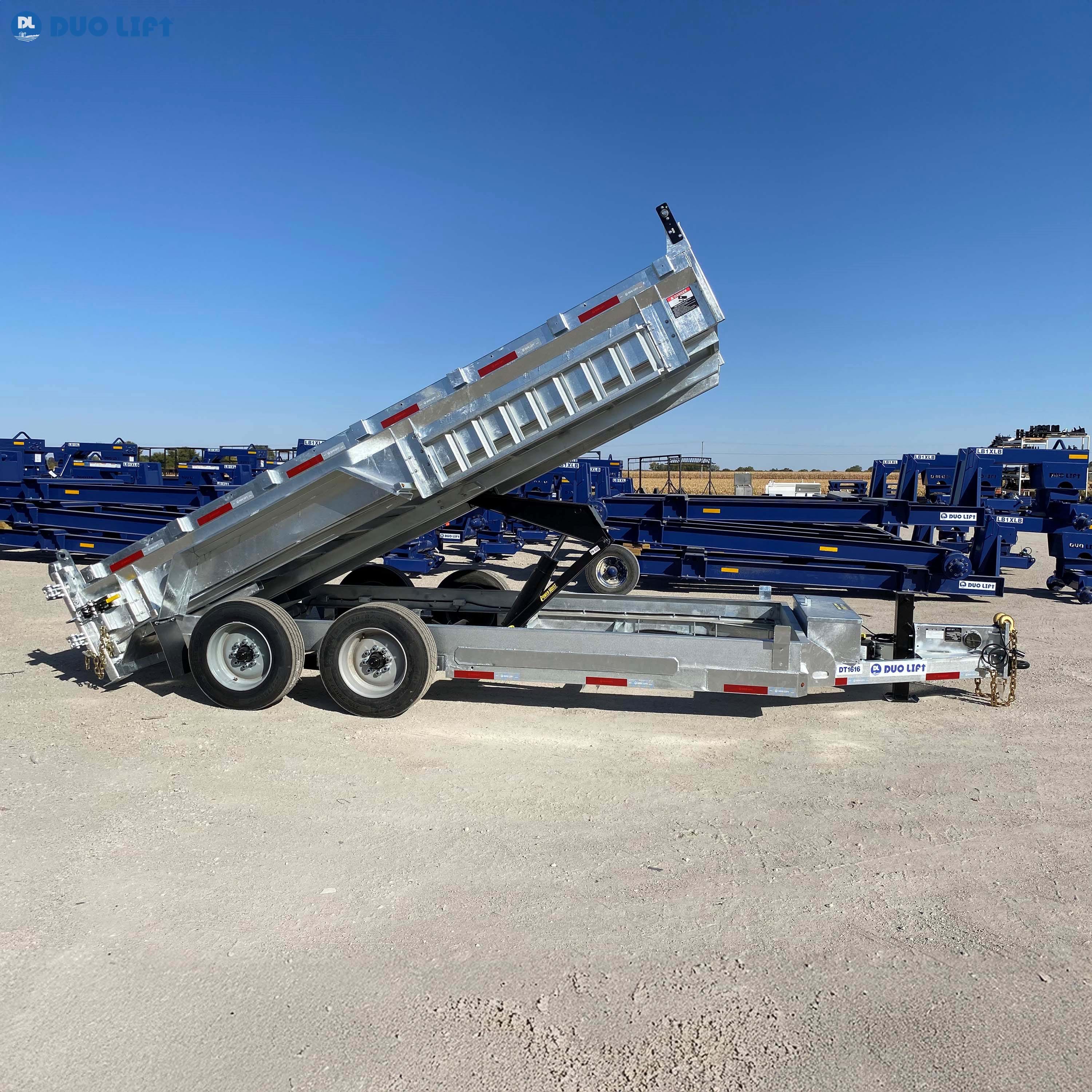

- Hydraulic SystemHEAVY DUTY SCISSOR HOIST; 12V DC HYDRAULIC POWER UNIT POWER UP AND GRAVITY DOWN; MOUNTED IN TONGUE A-FRAME. HOIST SYSTEM INCLUDES A DUMP BOX SUPPORT ARM FOR HOLDING BOX RAISED UP
- JackBOLT ON 12000 LB DROP LEG SIDE WIND
- Lights12V LED; DOT TURN; STOP; MARKER; AND LICENSE LAMP;7W ATA CONNECTOR; WIRE IN STEEL CONDUIT
- Ramps(2) 65" L X 14" W ANGLE IRON GROSSER TYPE RAMP; STORED OUTSIDE OF THE TRAILER (FRONT)
- Suspension6-LEAF SLIPPER SPRINGS WITH EQUALIZER; 4000 LB CAPACITY PER SPRING
- Tires(4) MASTER TRACK 215/75R17.5 LRH; 16-PLY STEEL BELTED RADIALS
- Wheels17.5 X 6.5; 8-BOLT ON 6.5" BOLT CIRCLE; SOLID PLATE SILVER PAINTED
