Duo Lift TD207815X8 Commercial

Item #: 400128

Product Description

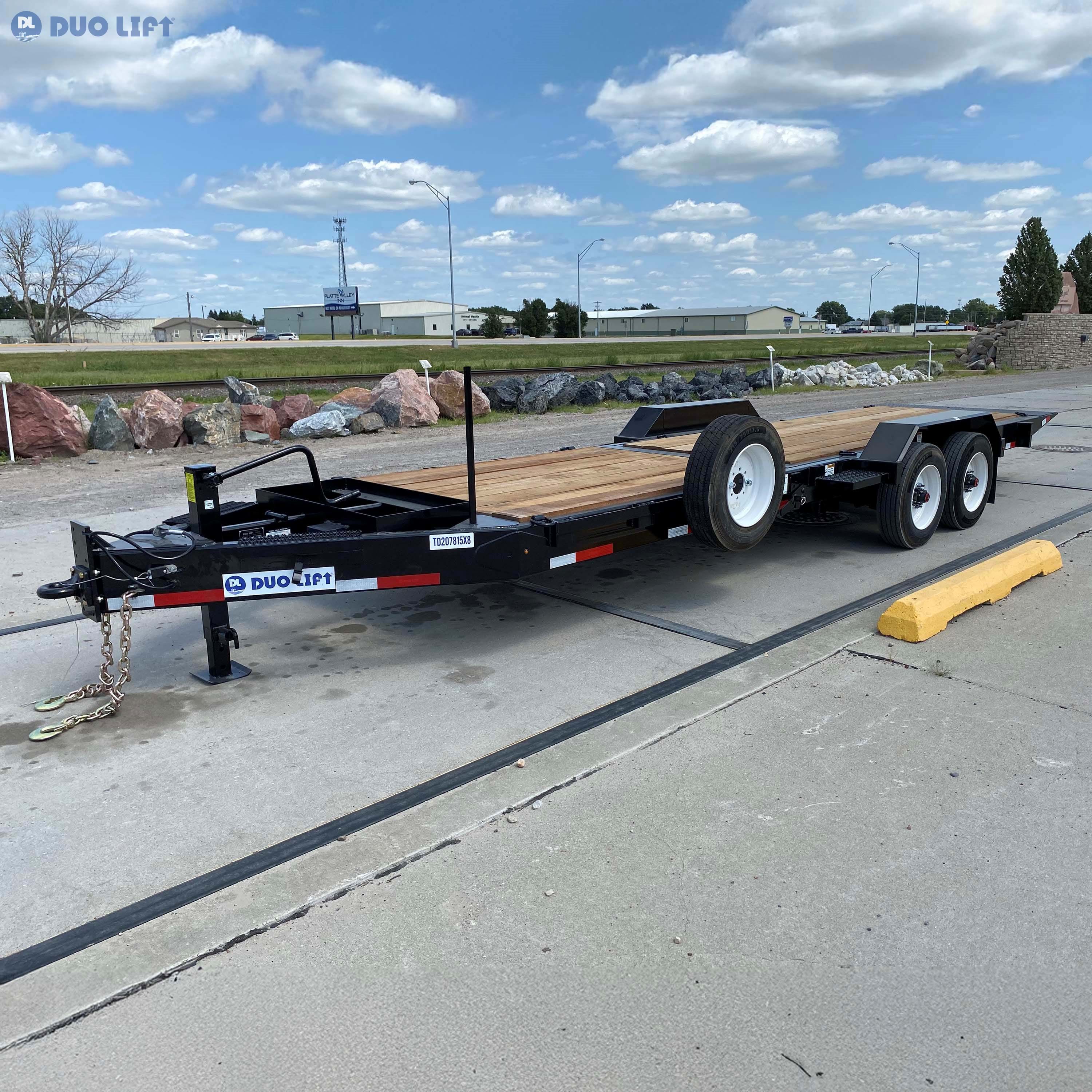

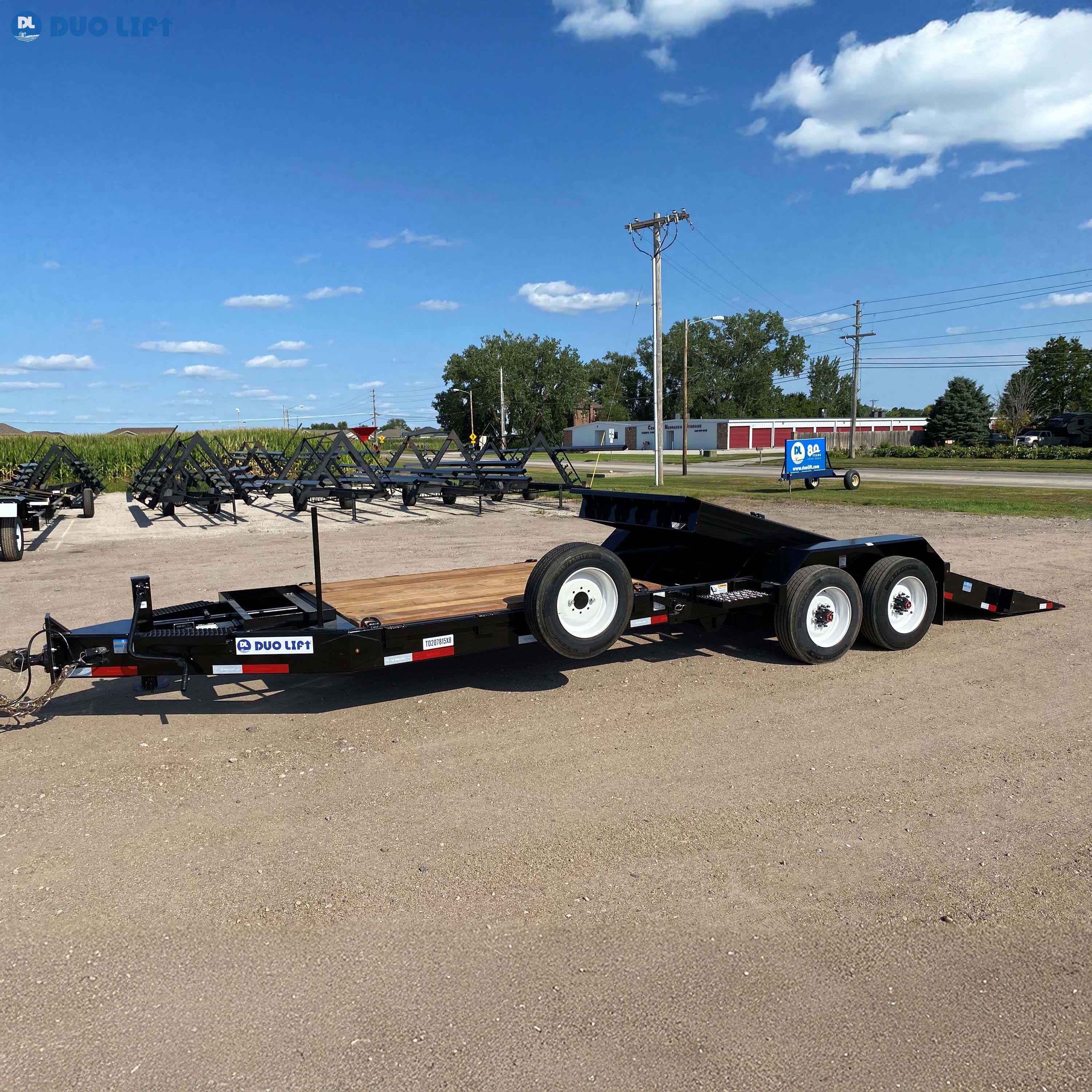

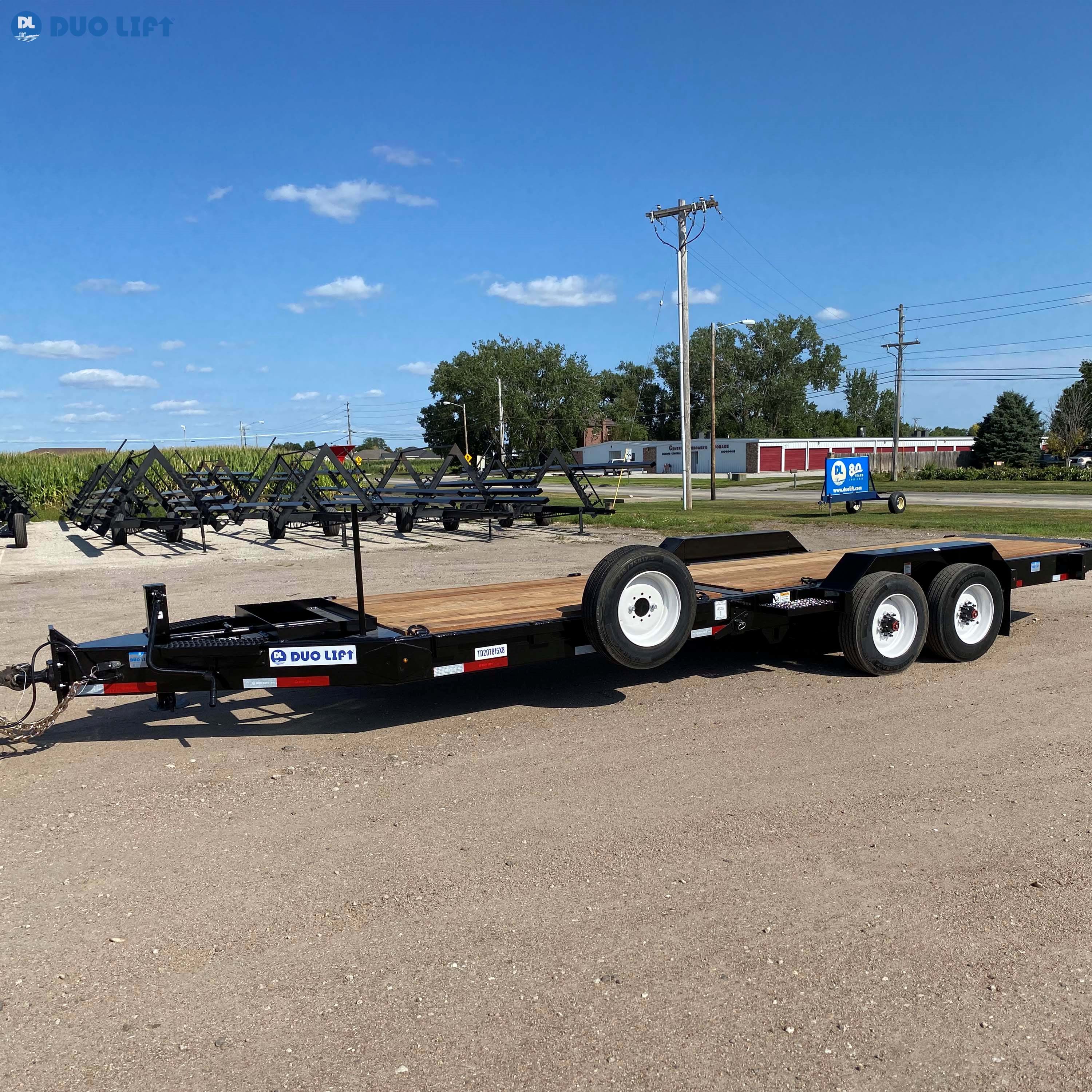

DROP BED TILT TRAILER

REFLECTIVE TAPE,(2) 1/2" SAFETY CHAINS WITH LATCH HOOKS, (6) 5" CHANNEL STAKE POKETS PER SIDE, FRONT SIDE FRAME RUB RAILS, (4) FRONT DECK D-RINGS, (4) REAR DECK D-RINGS, BLACK SPLASH GUARDS, PIN-ON STACK POCKET MOUNTED SPARE TIRE CARRIER, MATCHING SPARE TIRE AND WHEEL, SAFETY CONE HOLDER ON RH SIDE, GRIP STRUT STEP, REGISTRATION HOLDER, ANNUAL DOT INSPECTION

Duo Lift provides Duo Lift ag parts such as the 400128 Duo Lift TD207815X8 Commercial.

Product Specs

Axles(2) 10000 LB COMMERCIAL TORSION AXLES
Brakes4-WHEEL; 12V ELECTRIC; 12-1/4" X 3-3/8"; 12V BREAKAWAY SWITCH AND BATTERY. 4-POLE BRAKE WIRING CONNECTOR
Capacity20000 LBS GWVR @ 55 MPH
ColorGLOSS BLACK
Cross Members4" FORMED CHANNELS ON 18" CENTERS; (2) 4" ROUND TORSIONAL SUPPORT TUBES

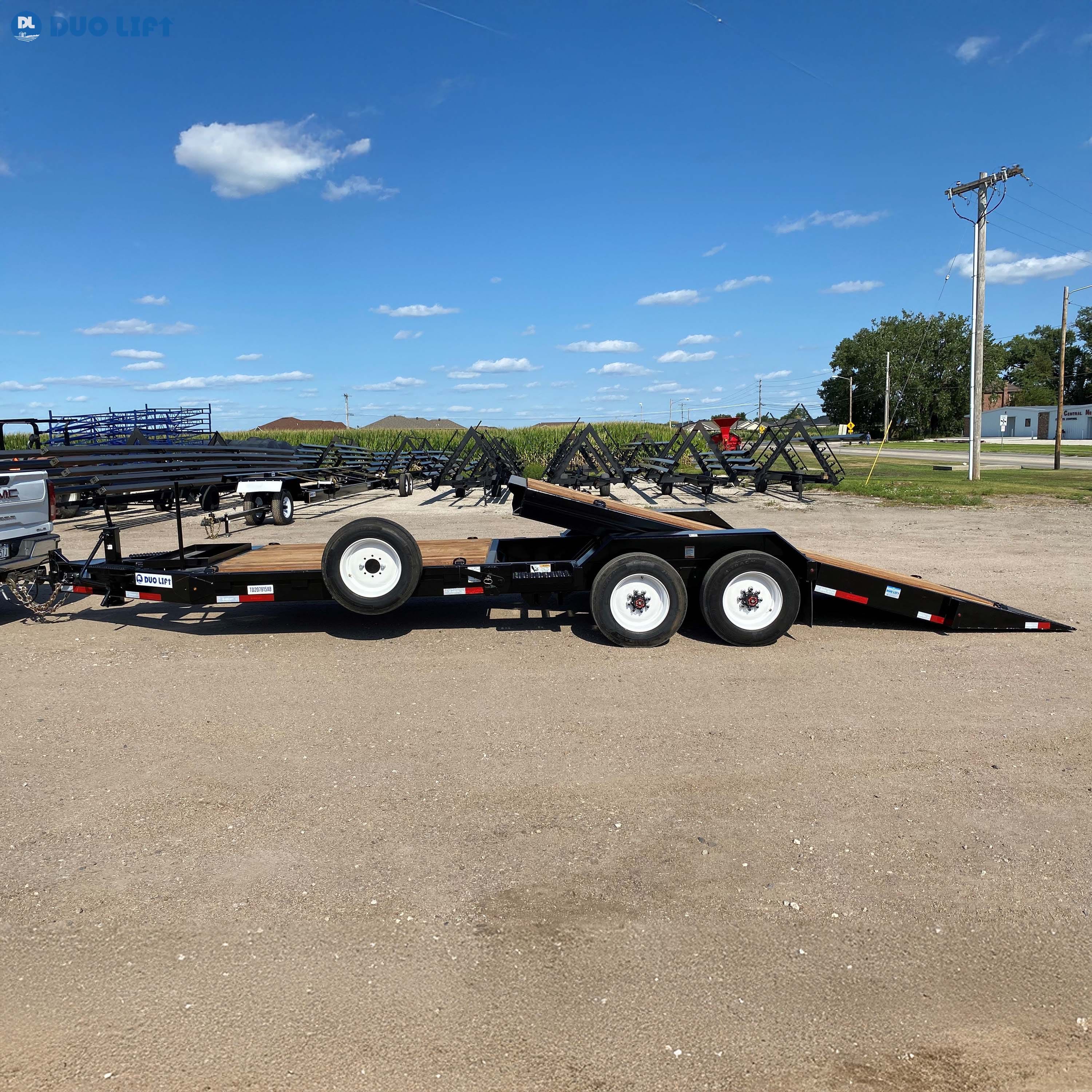

Deck8' STATIONARY FRONT DECK; 15' GRAVITY TILT DECK; 24" HEIGHTDECKING: STEEL TREAD PLATE; 2" APITONG WOOD
Dimensions30' L X 102" W; DECK STEEL APPROACH 20 - 3/4"
FendersFLAT TOP; TANDEM AXLE WITH NON-SKID TAPE AND GRIP STRUT IN FRON OF BOTH FENDERS. 78" INSIDE FENDER DIMENSION
FrameMAIN FRAME: 10" X 3" X 1.4" TILT DECK FRAME: FONT: 8" FORMED MEMBER; OUTER 10" X 3"-1/4" RECTANGULAR TUBEREAR: 8' FORMED TAPERED MEMBER
HitchBOLT-ON; 3" PINTLE RING WITH 14" TO 24" ADJUSTABLE HEIGHT; 25000 LB CAPACITY
Hubs(4) 17.5" X 6.75"; 8-BOLT 6.5" BOLT CIRCLE; WHITE COLOR SOLID PLATE CENTER DISC
Lights12V LED; DOT TURN; STOP; MARKER; AND LICENSE LAMP;7W ATA CONNECTOR; WIRE IN STEEL CONDUIT
Park StandFULTON 12000 LB SPRING LOADED DROP LEG; SIDE WIND; BULL DOG
SuspensionRUBBER TORSION
Tires(4) 215/75R 17.5 LRH MASTERTRACK STEEL BELTED RADIAL TIRES

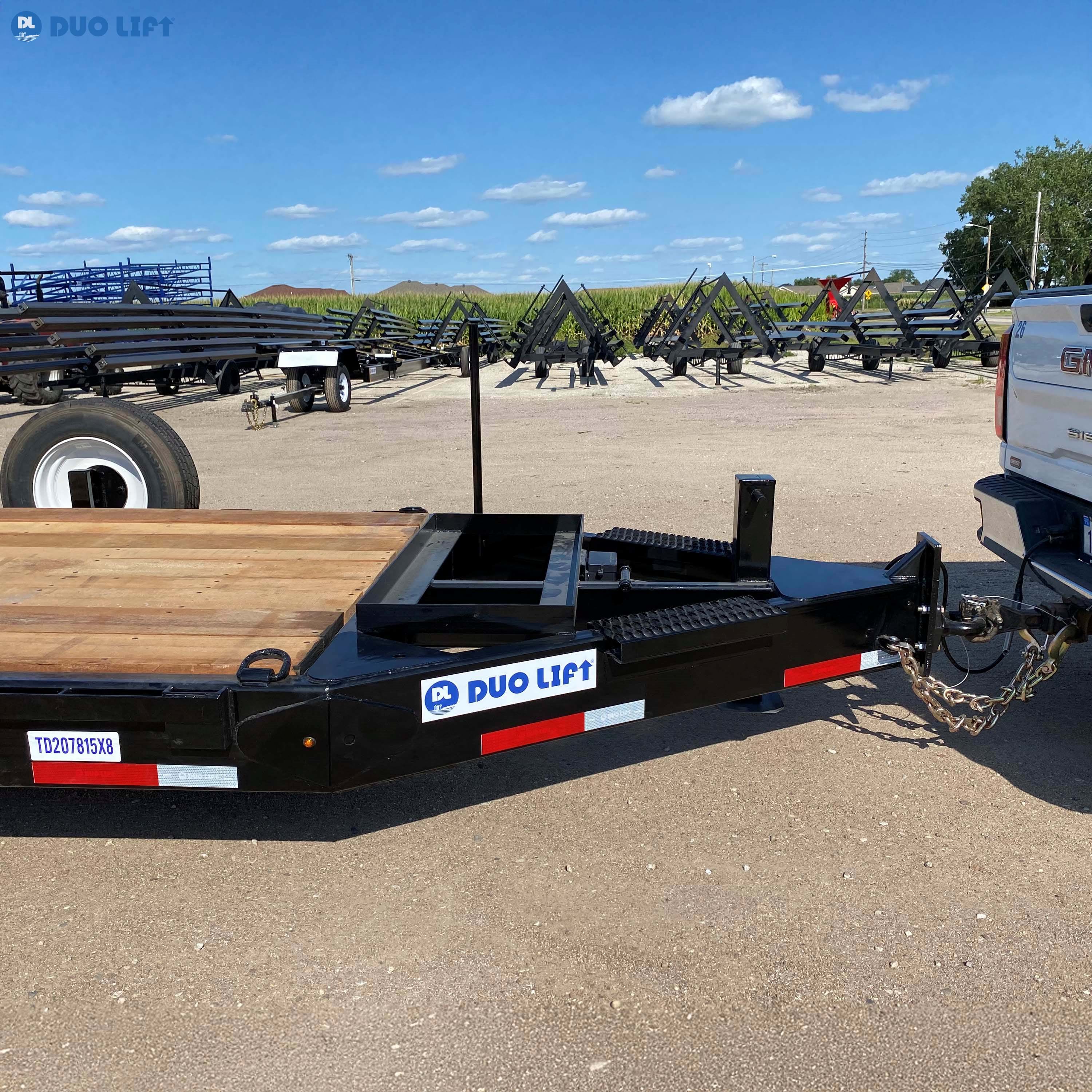

Tongue60" TONGUE; RECTANGULAR TUBE WITH GRIP STRUT STEP ON BOTH SIDES AND TOP OF TONGUE; FRAMED SUPPORT AREA AROUND TONGUE SUPPORTS A 42" JOB SITE BOX (NOT INCLUDED)
Wheels(4) 17.5" X 6.75"; 8-BOLT 6.5" BOLT CIRCLE; WHITE COLOR SOLID PLATE CENTER DISC
