Duo Lift SA067612 Commercial
- Item #: 400124
Product Description

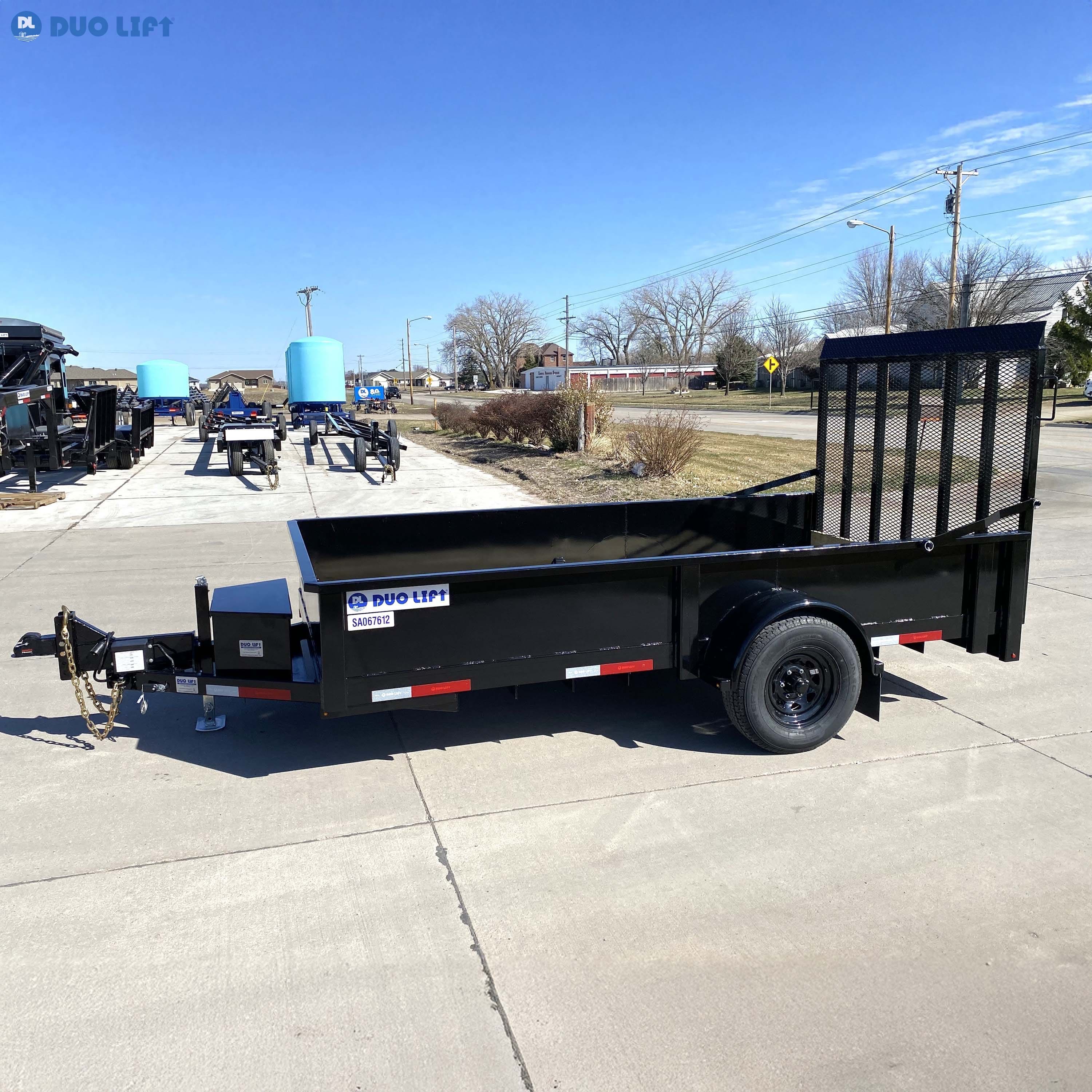

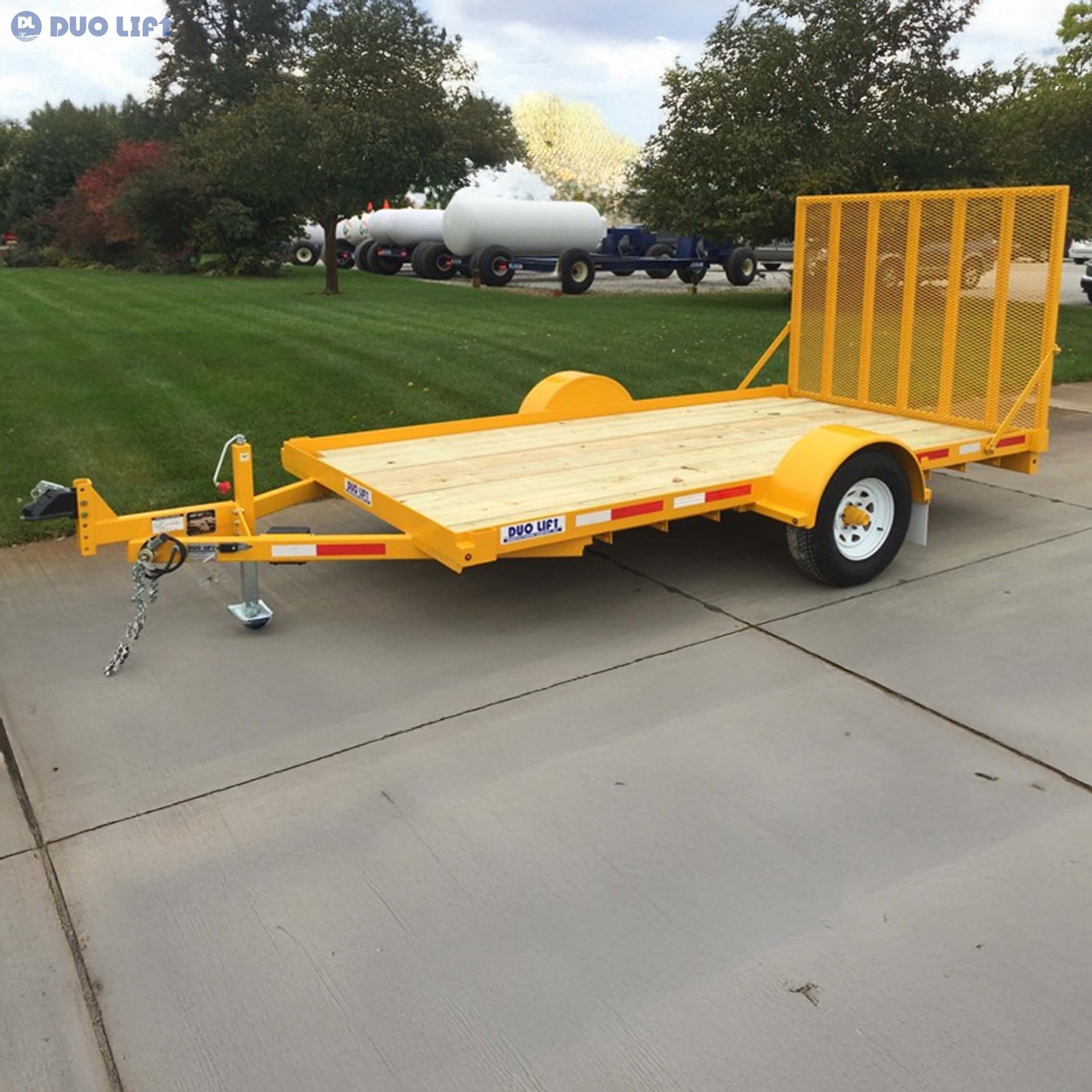

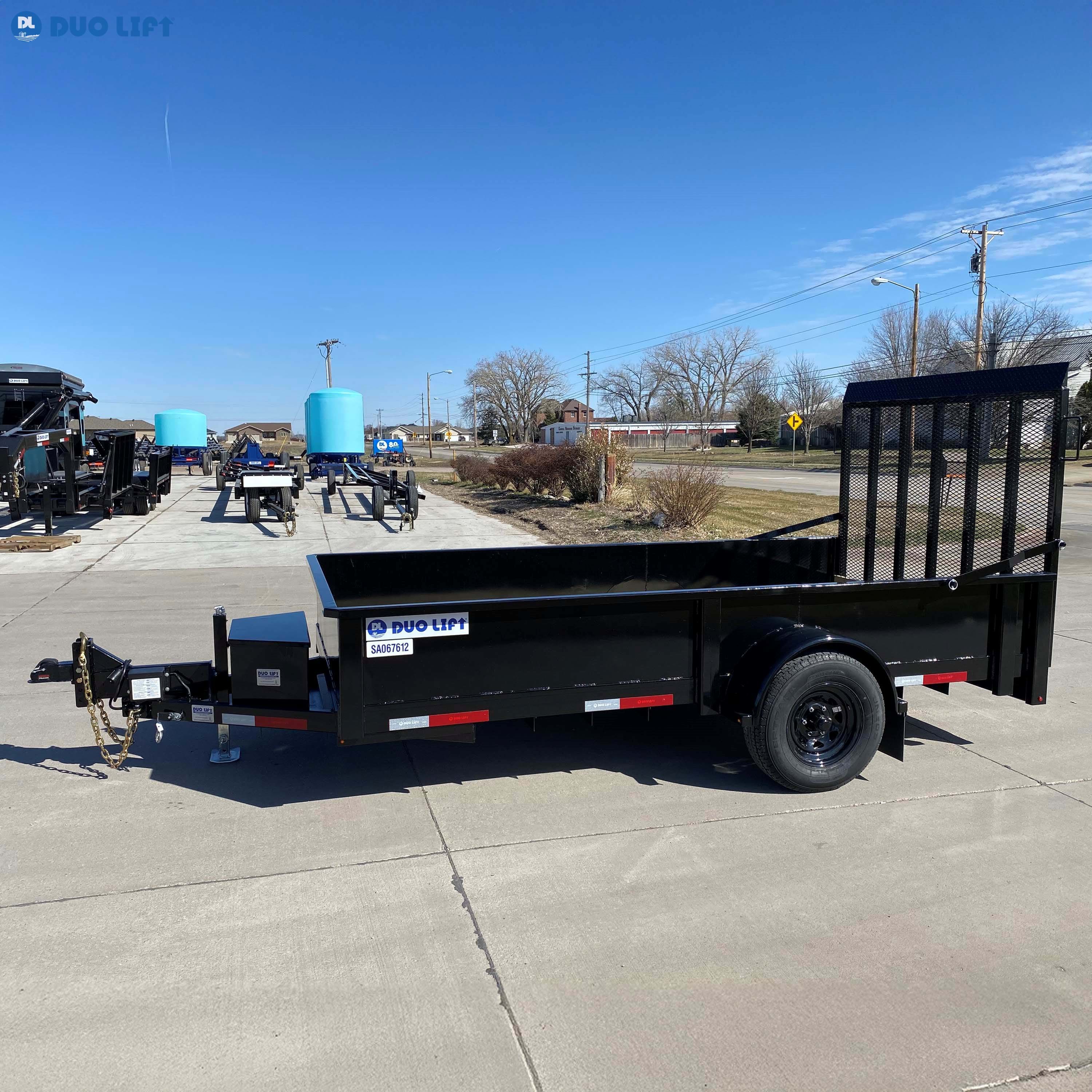

SINGLE AXLE UTILITY TRAILER WITH RAMP/GATE AND OPTIONAL STEEL SIDES
(2) 7,000 LB SAFETY CHAINS WITH (2) 5/16" LATCH HOOKS, REFLECTIVE TAPE, (4) CORNER TIE DOWNS, (1) SPRING LIFT ASSIST FOR RAMP GATE, (1) YEAR MATERIAL AND WORKMANSHIP WARRANTY
Duo Lift provides Duo Lift ag parts such as the 400124 Duo Lift SA067612 Commercial.
Product Specs
- Axles(1) 6000 LB
- Brakes12 X 12 EXECTRIC WITH SAFETY BREAKAWAY
- Capacity6000 LBS GVWR @ 55 MPH
- ColorGLOSS BLACK
- ColorSAFETY YELLOW TRAILER WITH BLACK FENDER SPLASH GUARDS
- Cross Members3" X 2" X 3/16" ANGLE AIRON ON 12" SPACING
- Deck150"L X 76"W X 19"H; 2" NOMINAL TREATED WOOD DECKING
- Deck150"L X 76"W X 19"H; 22"H STEEL SIDES; 2" NOMINAL TREATED WOOD DECKING WITH 12' BED GATE BOARD AND (2) RETAINING PINS
- Dimensions17' 6" L X 98" W
- FendersWITH SPLASH GUARDS
- Frame3" X 5" X 1/4" ANGLE IRON

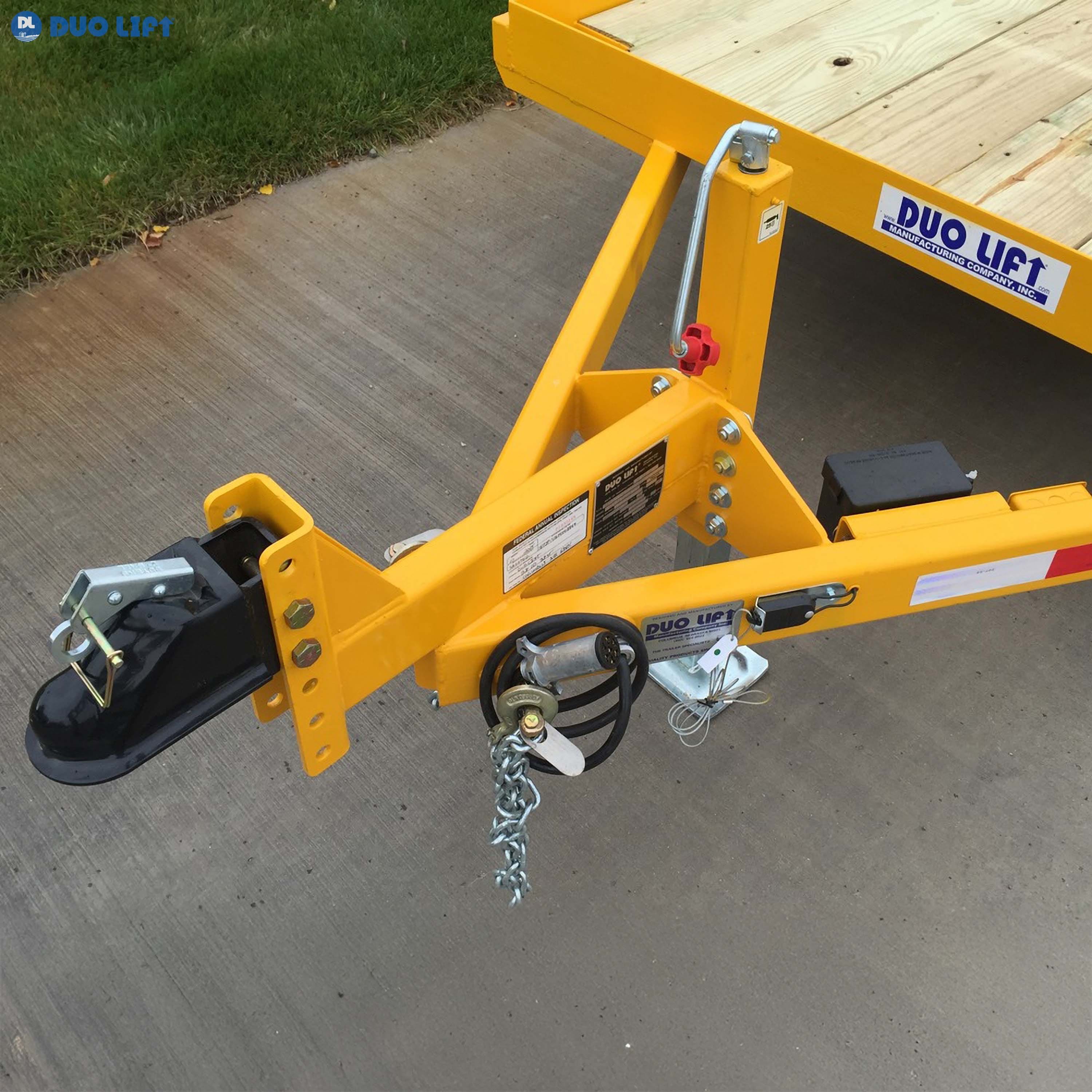

- HitchADJUSTABLE HEIGHT; 2" BALL COUPLER; BOLT ON; 12000 CAPACITY
- Hubs15 X 6 X 6-BOLT STEEL BLACK SPOKE
- Hubs15 X 6 X 6-BOLT STEEL WHITE SPOKE
- Lights12V LED; DOT TURN; STOP; MARKER; AND LICENSE LAMP;7W ATA CONNECTOR; WIRE IN STEEL CONDUIT
- Park Stand7000 LB CAPACITY DROP LEG TOP WIND; BOLT ON

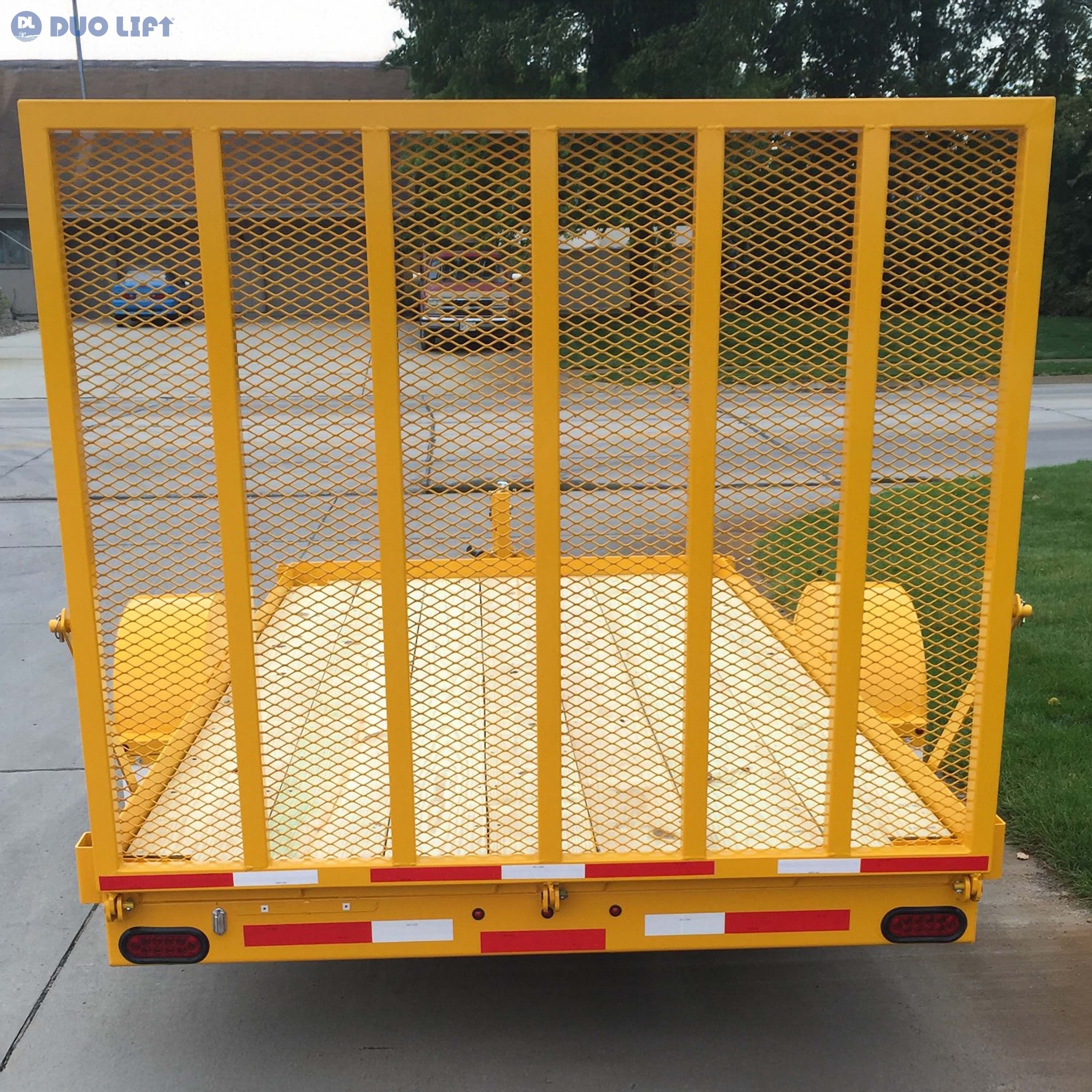

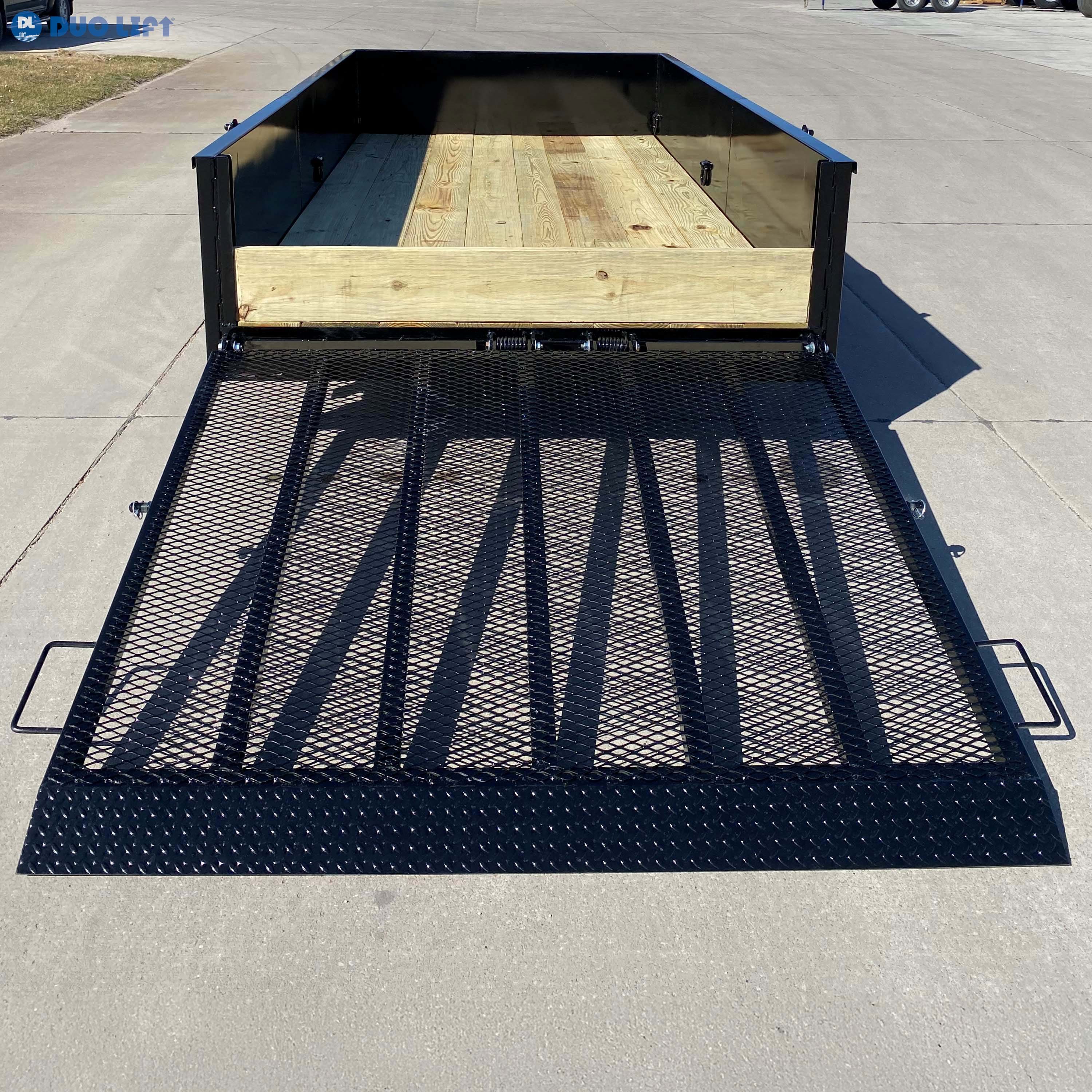

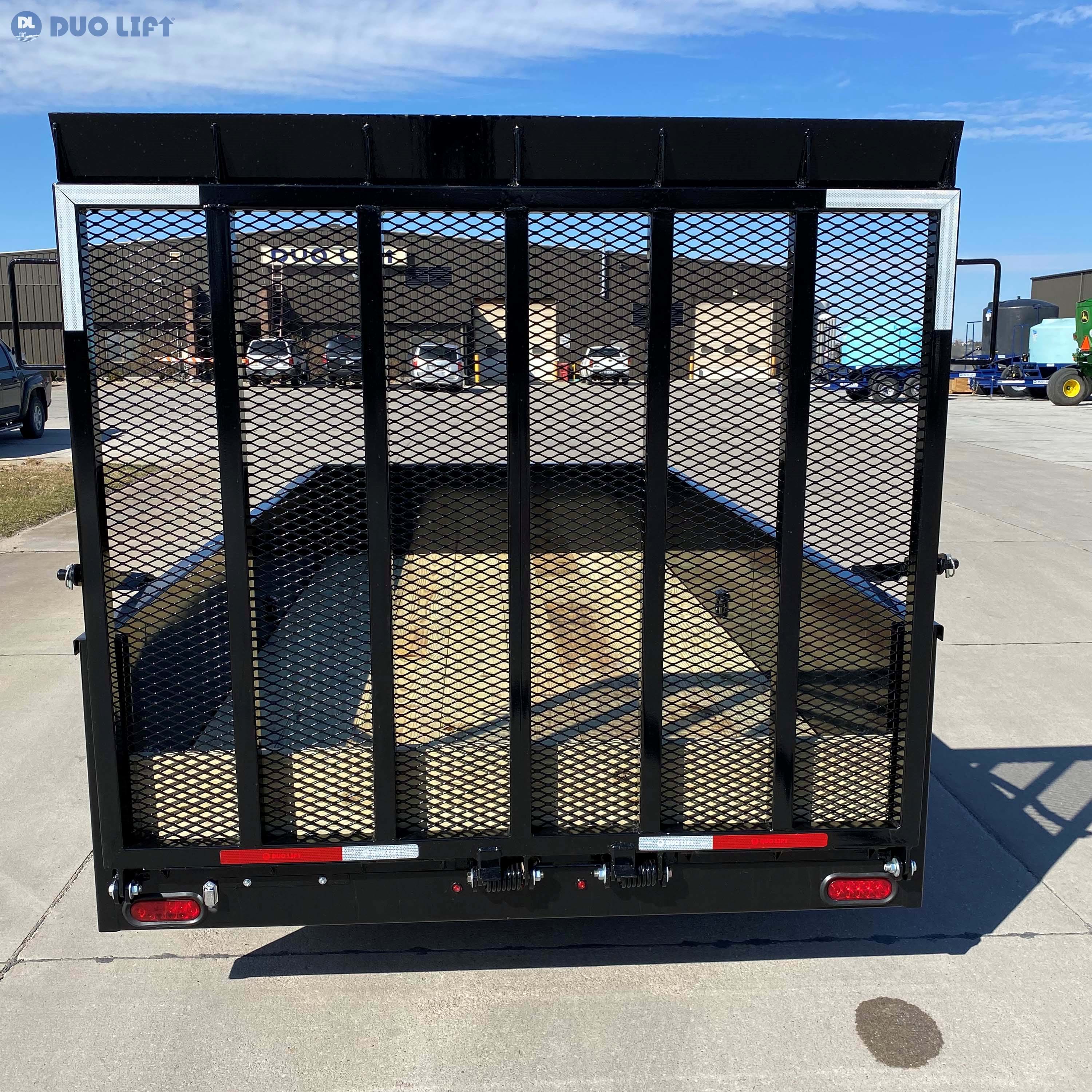

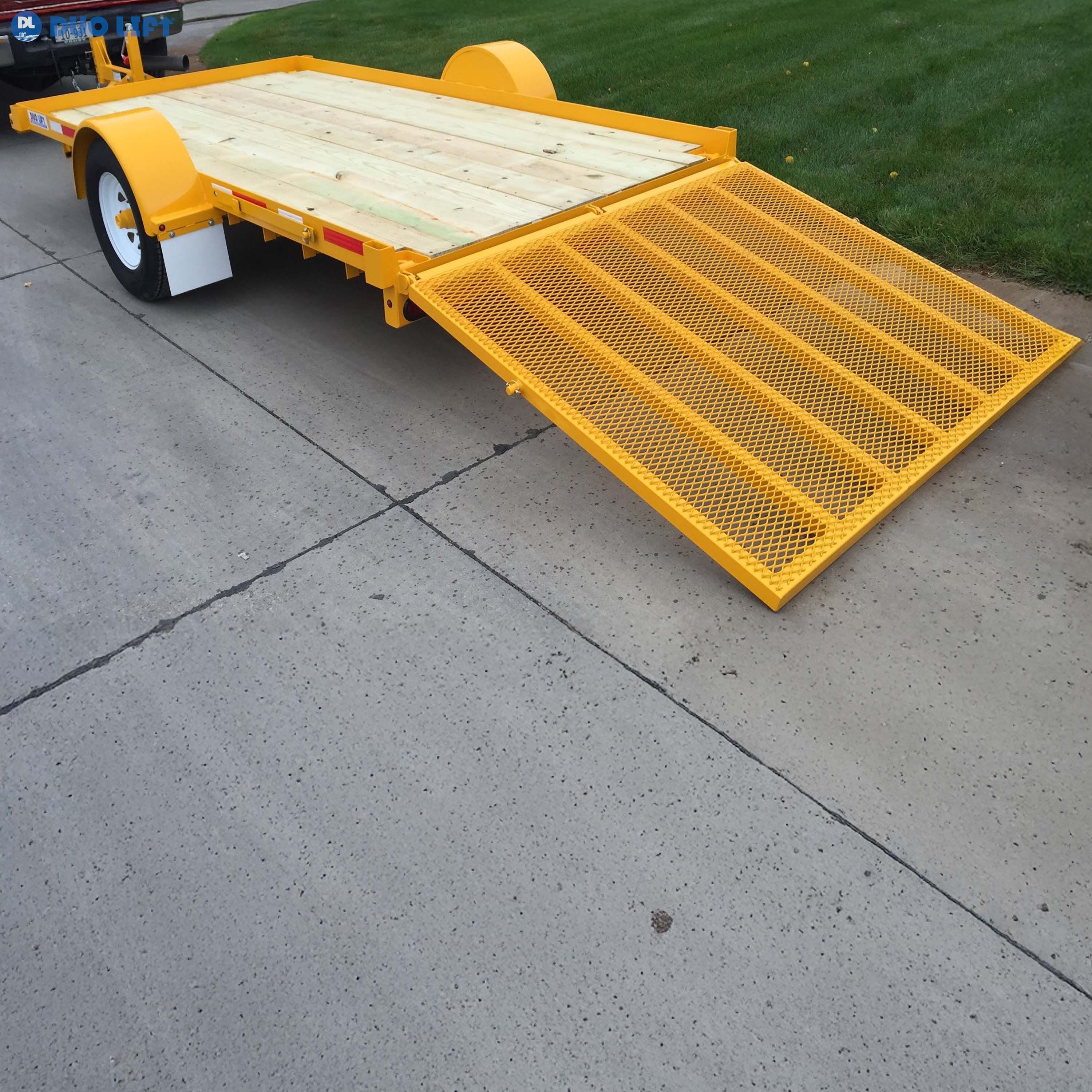

- Ramps60" x 76" SQUARE TUBE FRAMED WITH (7) 2" X 2" SQUARE TUBE UPRIGHTS. STEEL MESH OVERLAY WITH 1;500 LB RATING. STORES IN VERTICAL POSITION WITH (2) PINNED RAMP RETAINERS. TAPERED LOADING APPROACH AND (2) RAMP GRAB HANDLES
- SuspensionLEAF SPRING
- Tires(2) ST225/75R15 LRD RADIAL; 2540 LB CAPACITY EACH
- Wheels15 X 6 X 6-BOLT STEEL BLACK SPOKE
- Wheels15 X 6 X 6-BOLT STEEL WHITE SPOKE
