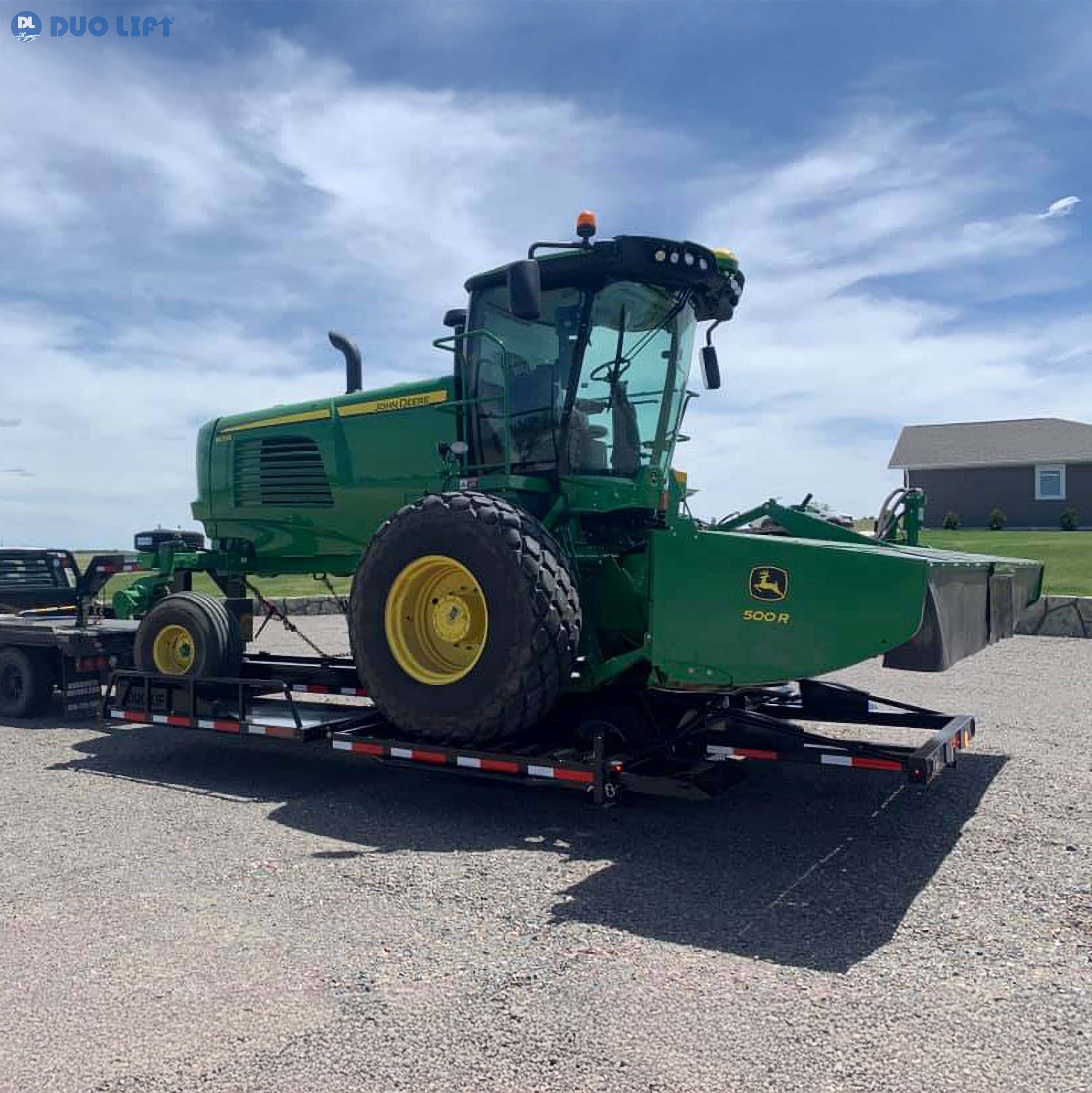

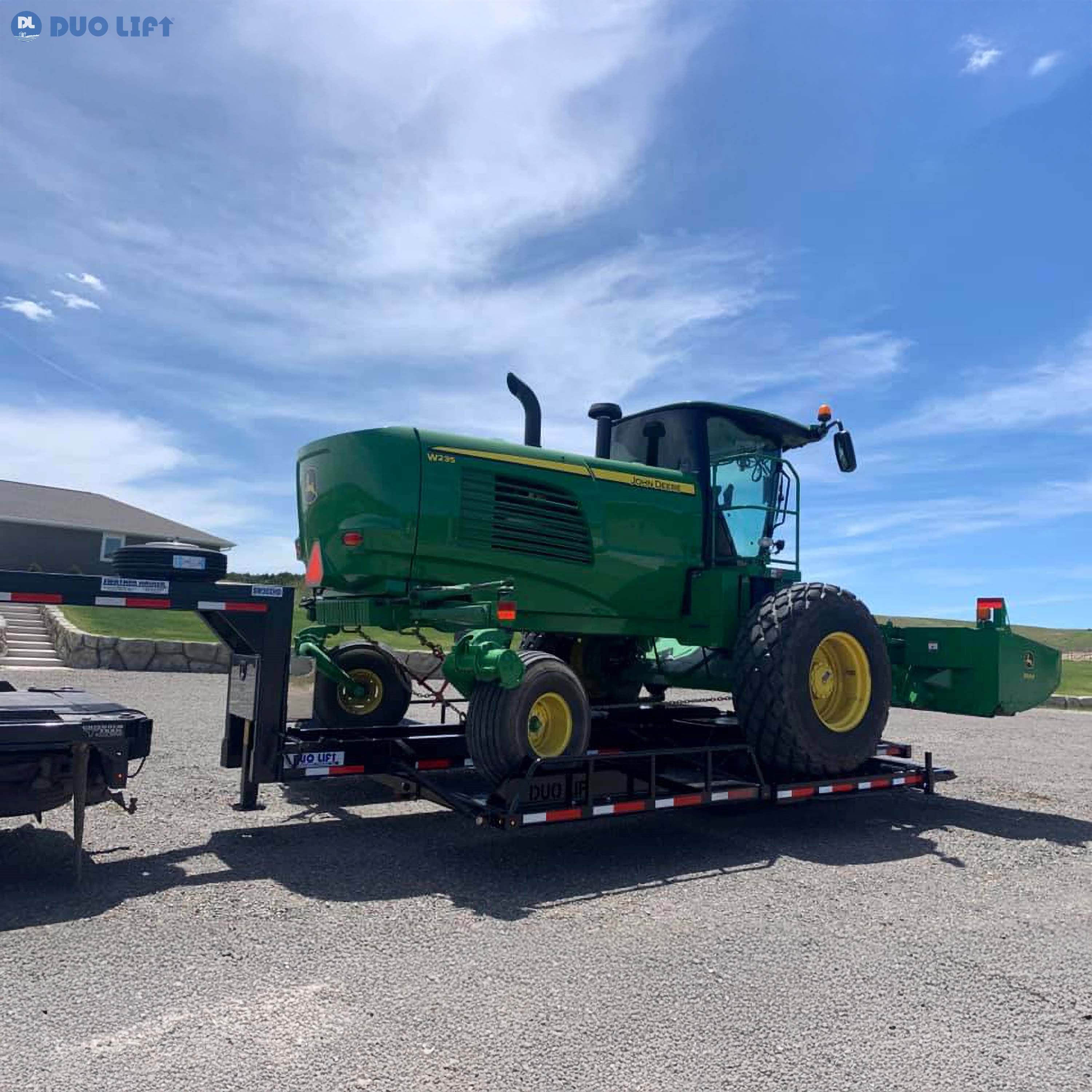

Duo Lift SW30XHD Swather Hauler

Product Specs

• Axles(2) 15000 Lb. 8-Bolt Oil Bath Hubs with M22 Studs and M22 Swiveling Flange Nuts
• Brakes12-1/4” x 5” Electric Brakes on Both Axles;12-Volt Safety Breakaway System with Battery
• Capacity30000 Lbs.; Self Propelled Swathers and Windrowers up to 22000 Lbs. (The Towing Vehicle Must be Rated to Tow the Gross Trailer Weight of the Swather Hauler Trailer)
• ColorGloss Black; Gray Wheels and White Splash Guards
• DimensionsEmpty Transport Width 102”   -   Loaded Maximum Transport Width 159”  -  Length 32' Overall  Swather/Windrower Loading Area 18’;  Platform Height: 21”
• Fenders14 Gauge Steel; Enclosed with White Splash Guards; 80" x 24" - Outside to Outside 82"
• Frame(2) 10” x 4” Wide Flange Beams with (3) 4” Heavy Wall Torque Tubes and (4) 4” x 4” HD Tubular Platform Supports
• GooseneckGooseneck; Tapered Design; 8” x 4” Tubular Frame with 30000 Lb. Adjustable Height 2-5/16” Coupler and  (2) 1/2” Safety Chains
• HitchGooseneck; Tapered Design; 8” x 4” Tubular Frame with 30000 Lb. Adjustable Height 2-5/16” Coupler and  (2) 1/2” Safety Chains
• Jack(1) 12000 Lb. Side-Wind; Drop Leg Jack; (2) Adjustable Height Rear Loading Jack Stands
• Lights12-Volt; D.O.T. Stop; Turn; Tail; Marker; License Lamps; w/ 7-Way RV Trailer Electrical Connector and Wiring Enclosed in Steel Conduit or Sealed Electrical Cord
• PlatformCaster Wheel Platforms:  Patent Pending Slide Out Type; 46” x 98” Tread Plate Platforms with Bolt-On Multi   Position Caster Wheel Angling Guide/Stops; Locking Pins and Tire Guide Rails.  Accommodates Caster Wheel Track Width From 108” to 129”.  Allows Caster Wheels to Spin to the Forward Travel Position During Unloading.  Drive Wheel Platforms:  Folding Type; 30” x 88” with Locking Pins; Spring
• RampsSlide Out; Roller Assisted; 24 1/2” x 102”; Tubular with Open Angle Iron Grousers and Tapered Ramp Edge
• Suspension(4) 8-Leaf; 10000 Lb. Slipper Springs with Equalizers
• Tires(8) 215/75R 17.5 LRH Radials 16-Ply; (4540 Lbs. Cap. Each);  Spare Tire Carrier Included
• Wheels(8) Hub Piloted; 17.5 x 6.75 - 8 on 275mm Silver Color; Dual Wheels
