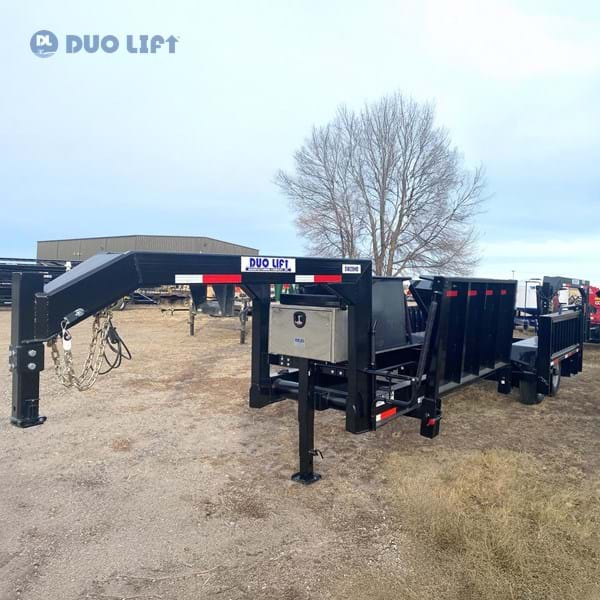

Duo Lift SW28HD Swather Hauler

Product Specs

• Axles(2) 12000 Lb. 8-Bolt Oil Bath Hubs with 5/8” Studs and 5/8” Swiveling Flange Nuts
• Brakes12-1/4” x 5” Electric Brakes on Both Axles;12-Volt Safety Breakaway System with Battery
• Capacity28000 lbs; Self Propelled Swathers and Windrowers up to 20000 Lbs. (The Towing Vehicle Must be Rated to Tow the Gross Trailer Weight of the Swather Hauler Trailer)
• ColorGloss Black; Gray Wheels and White Splash Guards
• DimensionsEmpty Transport Width 102” - Loaded Maximum Transport Width 159” - Length 31' Overall Swather/Windrower Loading Area 18’; Platform Height: 21”
• Equipment Weight7500 lbs
• Fenders14 Gauge Steel; Enclosed with White Splash Guards
• Frame(2) 10” x 4” Wide Flange Beams with (3) 4” Heavy Wall Torque Tubes and (4) 4” x 4” HD Tubular Platform Supports
• GooseneckGooseneck; Tapered Design; 8” x 4” Tubular Frame with 30000 Lb. Adjustable Height 2-5/16” Coupler and  (2) 1/2” Safety Chains
• HitchGooseneck; Tapered Design; 8” x 4” Tubular Frame with 30000 Lb. Adjustable Height 2-5/16” Coupler and  (2) 1/2” Safety Chains
• Jack(1) 12000 Lb. Side-Wind; Drop Leg Jack; (2) Adjustable Height Rear Loading Jack Stands
• Lights12-Volt; D.O.T. Stop; Turn; Tail; Marker; License Lamps; w/ 7-Way RV Trailer Electrical Connector and Wiring Enclosed in Steel Conduit or Sealed Electrical Cord
• PlatformCaster Wheel Platforms:  Patent Pending Slide Out Type; 46” x 98” Tread Plate Platforms with Bolt-On Multi  Position Caster Wheel Angling Guide/Stops; Locking Pins and Tire Guide Rails.  Accommodates Caster Wheel Track Width From 108” to 129”.  Allows Caster Wheels to Spin to the Forward Travel Position During Unloading Drive Wheel Platforms:  Folding Type; 30” x 88” with Locking Pins; Spring Lif
• RampsSlide Out; Roller Assisted; 24 1/2” x 102”; Tubular with Open Angle Iron Grousers and Tapered Ramp Edge
• Suspension(4) 6-Leaf; 6000 Lb. Slipper Springs with Equalizers
• Tires(4) 235/75R 17.5 LRH Radials 16-Ply; (6;005 Lbs. Cap. Each); Spare Tire Carrier Included
• Wheels(4) Hub Piloted; 17.5 x 6.75 - 8 on 6.5 Silver Color; Solid Plate
