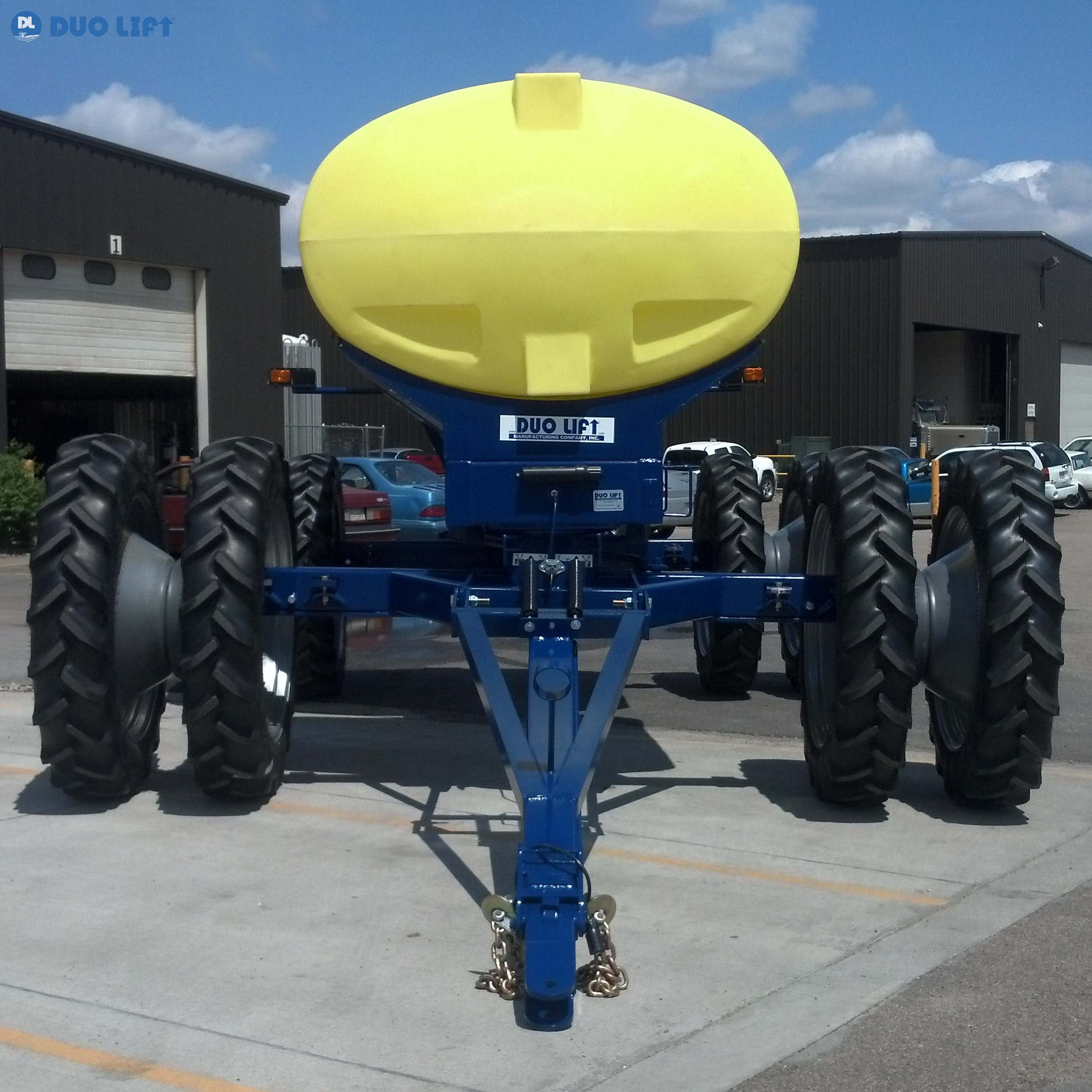

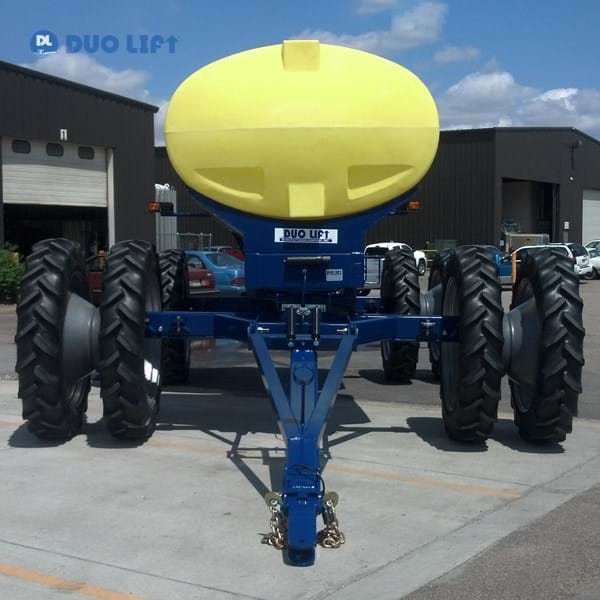

Duo Lift DS2040A Duo Steer Wagon
- Item #: 91571
Product Description
DS2000 Gallon 4-Wheel Steer Wagon, 120"-144" Adjustable Track and 8' Tongue, Includes Quick Change Liquid Tank Mount and Quick Change NH3 Tank Mouth to Accommodate (2) 1,000 Gallon NH3 Tanks or (1) 2,000 Gallon NH3 Tank
Duo Lift provides Duo Lift ag parts such as the 91571 Duo Lift DS2040A Duo Steer Wagon.
Product Specs
- AxlesRear: 7” x 5” Heavy wall tubing; Front: 7” x 5” x Heavy Wall Tubing with 2.75” Dia. Rocking Pin and Seamless (DOM) Bushing; 28" axle clearance with standard tires
- Capacity46000 LBS.
- ColorFRAME: Blue wagon frame; silver wheels; TANK: Light blue or white
- Frame10” x 4” Heavy wall tubing
- Hubs871; 8-bolt; 12000 LB capacity; each
- LightsAg light package; with 7-way RV connector
- SpindlesRemovable 3” Diameter 1144 shaft; placed on bottom of axle tube
- SteeringFront: 5th wheel with 2” SAE; heat treated; 75-ton semi-king pin turntable; 20” dia. Plates; Rear: 5th-wheel turntable with (3) 20” dia. plates; connected to a tie rod for 4-wheel steer
- Tank(1) Light Blue Poly; 2010 Gallon; Drainable; Formed cross member tank supports for 2010 drainable tank
- Tires18.4 X 26 10-PLY
- TongueHeavy duty extension tongue with double spring lift assist; (2) DOT 1/2” x 40” safety chains; accepts 1” hitch
- Wheel Base9’ 10”
- Wheel TrackAdjustable; 120" - 144" track
- Wheels26 X D-16; 8-Bolt; 12000-Lb capacity; ea
