Product Specs
- AxlesRear: 7” x 5” Heavy wall tubing; Front: 7” x 5” Heavy wall tubing with rocking pin and seamless (DOM) bushing; 25” axle clearance with standard tires
- Capacity19640 LBS
- ColorBlue wagon frame; silver wheels
- Frame6” x 4” Heavy wall tubing
- Hubs778; 8-bolt; 4910 LB capacity; each
- LightsAg light package; with 7-way RV connector
- SpindlesRemovable 2.50” Diameter 1144 shaft; placed on bottom of axle tube
- SteeringFront: 5th wheel with 2” SAE; heat treated; 75-ton semi-king pin turntable; 20” dia. Plates; Rear: 5th-wheel turntable with (3) 20” dia. plates; connected to a tie rod for 4-wheel steer
- Tank(1) Light Blue Poly; 1200 Gallon; Cone Bottom with (2) Hold Downs Included; Cradle for 1200 gallon cone bottom tank
- Tires14.9 X 24 8-PLY Lug Tire

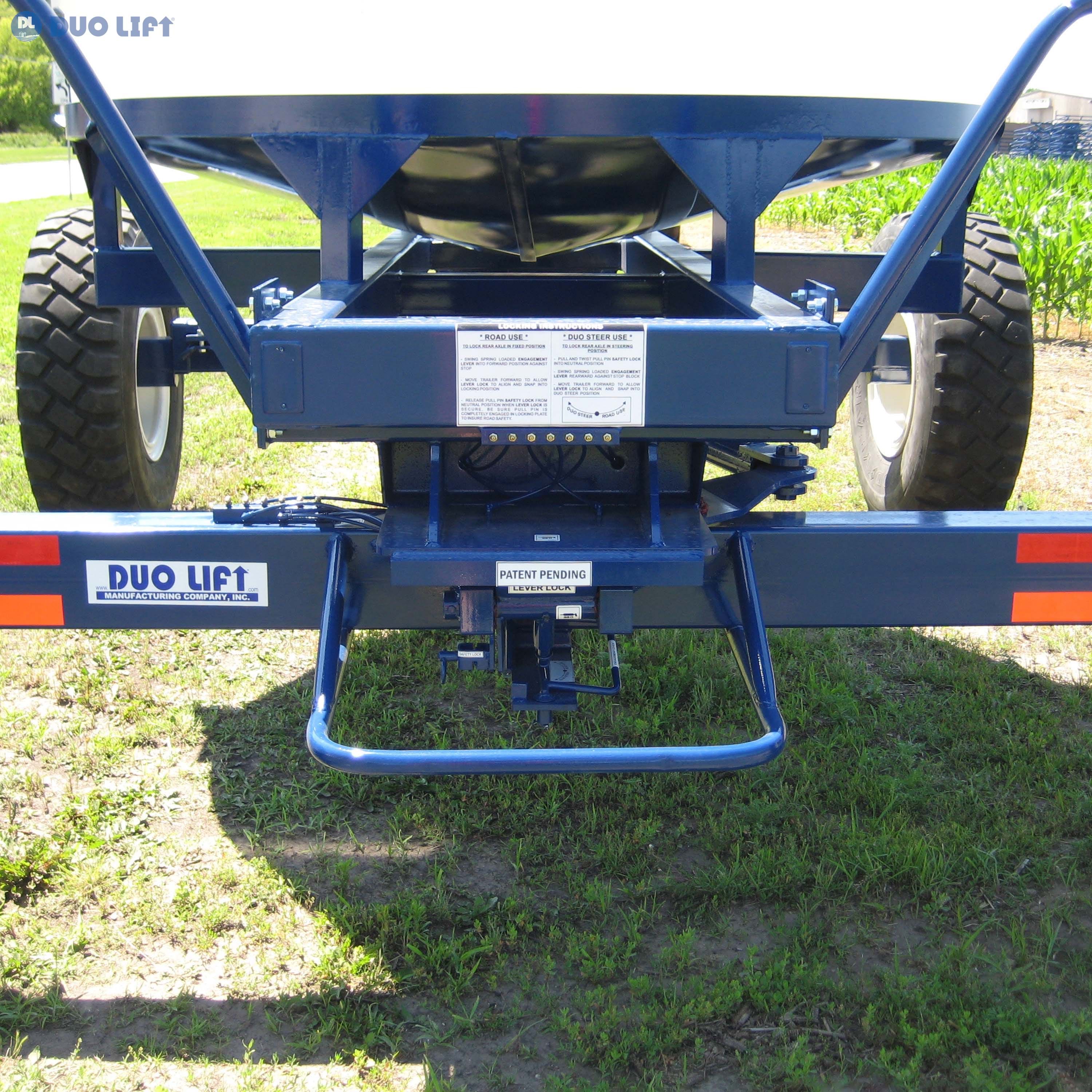

- Tongue8’ Heavy-duty pull pin extension tongue with double spring lift assist; (2) DOT 1/2” x 40” safety chains; accepts 1” hitch pin
- Wheel Base9' 10"
- Wheel Track120” fixed track
- Wheels24 X W12; 8-Bolt; 5028-Lbs. Cap. Each
